PAGE 14/36 | Installation manual | 016-8000-014EN | Rev. A1
STEERING SYSTEM INSTALLATION | CRX + SC1 | RAVEN EUROPE GENERIC
SC1
The following guidelines have been established for
mounting the SC1:
Preferably, place the SC1 (Figure 3) next to and
to the right of the seat. Use the standard SC1
mounting bracket.
If it is not possible to attach the SC1 to the seat
bolts, the SC1 should be attached in an
appropriate place in the cabin that is free from
vibrations.
A SC1 may only be mounted in a horizontal
position (with the sticker side up). The
connectors may be orientated in four
directions (0, 90, 180, 270 degrees).
By default, the orientation of the SC1is set to:
horizontal position with connectors pointing
towards the rear (as shown in Figure 3). Any
other orientation should be set in the software!

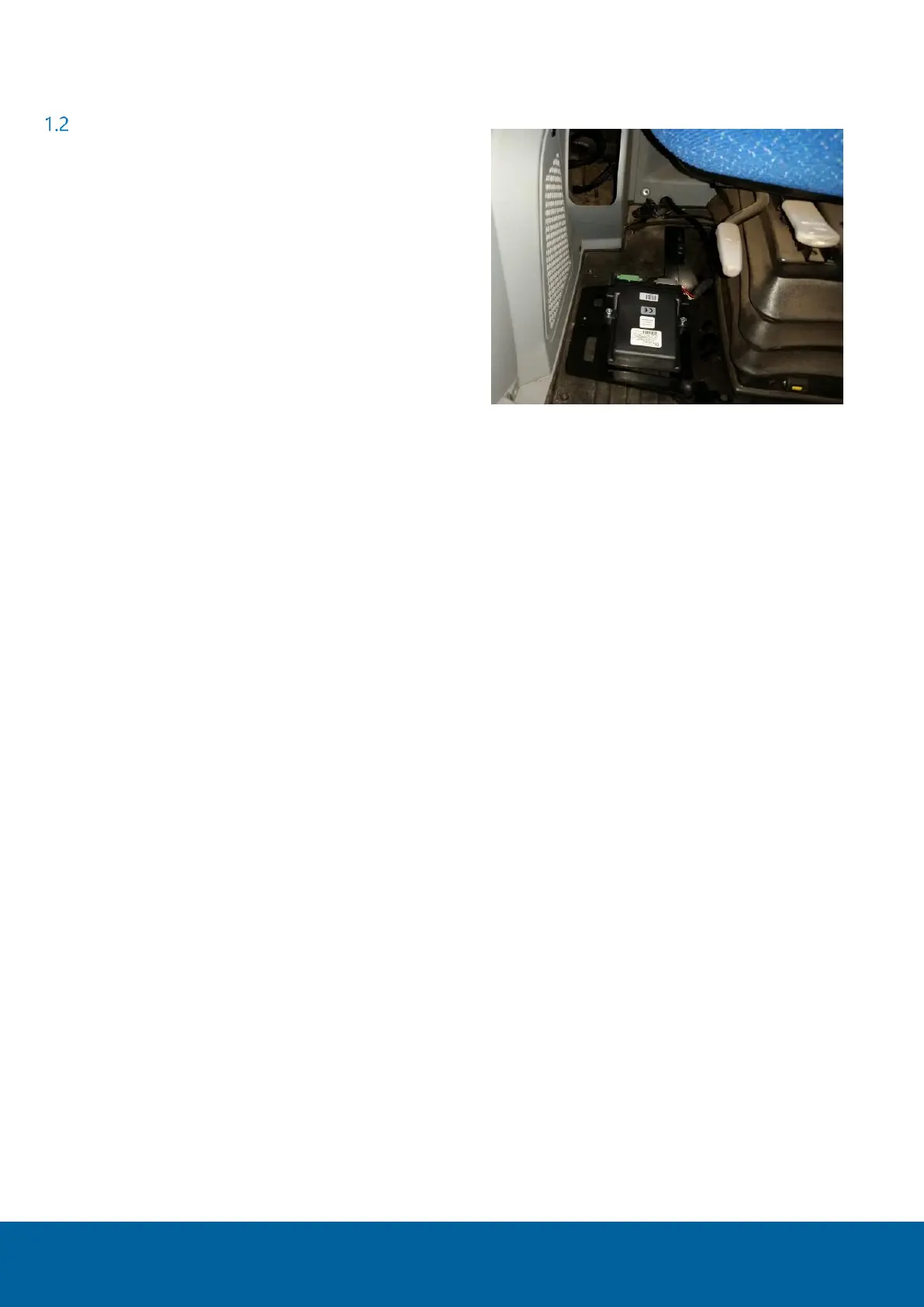

FIGURE 3 A SC1 MOUNTED NEXT TO THE SEAT
