Chapter 3
16 RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual

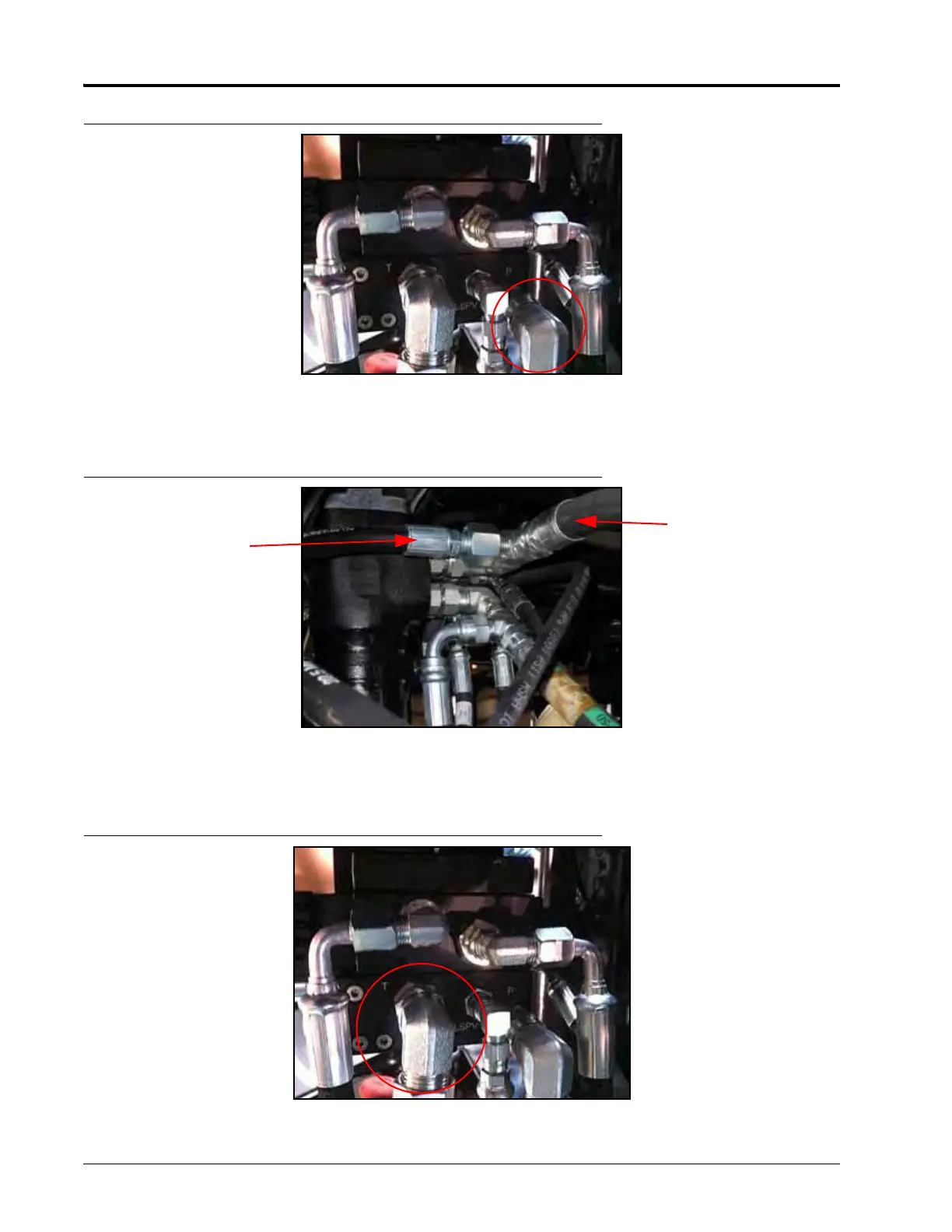

FIGURE 12. Pressure Hose Installed on SmarTrax Valve
3. Connect the straight end of the installed hydraulic hose to the fitting installed in Port P of the SmarTrax
valve (P/N 334-0003-088).
FIGURE 13. Tank Hose Installed on Steering Orbital
4. Remove the cap from the tee fitting installed in the pressure port (upper-left corner) of the steering orbital.
5. Install the -12 JIC end of the supplied hydraulic hose (P/N 214-1000-959) in the open port of the tee fitting.
FIGURE 14. Tank Hose Installed on SmarTrax Valve
Installed Tank Hose
(P/N 214-1000-959)
Machine’s Tank Hose
