Raven SmartTrax User Manual

3
Manual No. 016-5030-010 Rev. A 17
Hydraulic System Installation
6. Connect the -10 JIC end of the installed hydraulic hose to the fitting installed in Port T of the SmarTrax
valve.
Install the Load Sense Hoses
1. Locate and disconnect the machine’s load sense hose from the right side of the steering orbital.

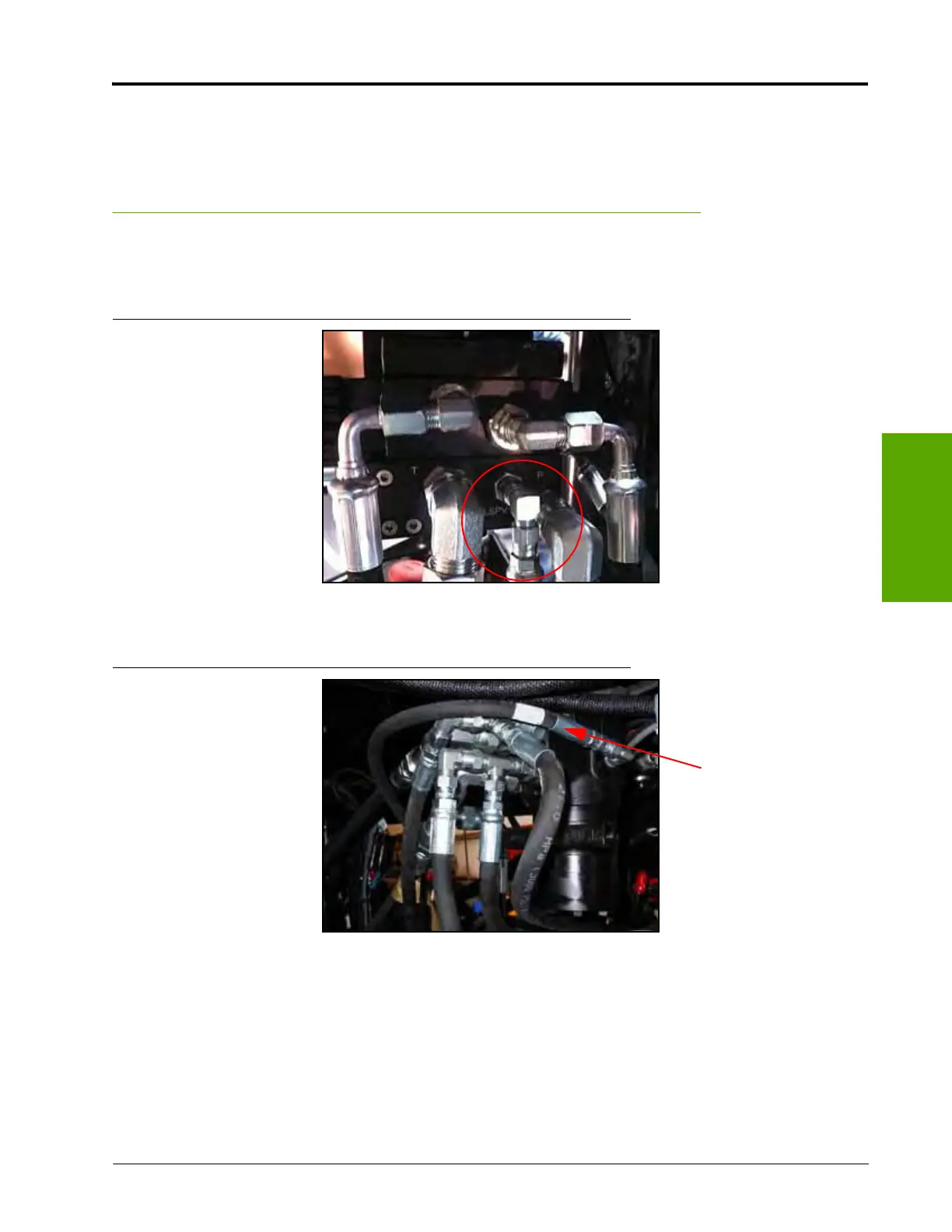

FIGURE 15. LSPV Connection on SmarTrax Valve
2. Connect the machine’s load sense hose to the fitting installed in Port LSPV of the SmarTrax valve.
FIGURE 16. Load Sense Hose Installed on Steering Orbital
3. Install the straight end of the supplied hydraulic hose (P/N 214-1000-958) on the open load sense port on
the steering orbital.
Installed Load Sense
Hose
(P/N 214-1000-958)
