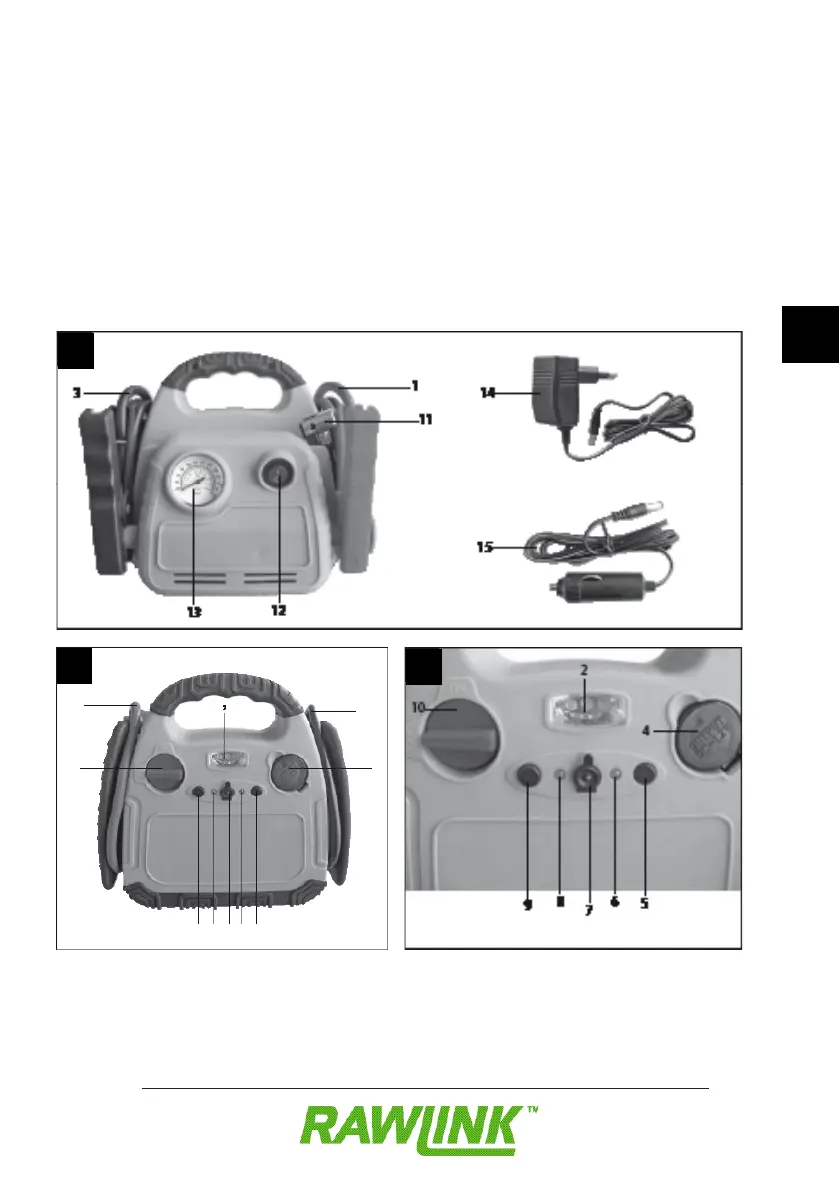

Parts of the start booster
1. Redbatteryclip(+)
2. Lamp
3. Blackbatteryclip(-)
4. Outputsocket,12V
5. Test button
6. Chargingindicator
7. Connectorfor12/230-Vcharger
8. Pilot lamp
9. Lampon/oswitch
10.On/obutton
11.Compressedairtube
12.Compressoron/oswitch
13.Pressuregauge
14.Charger
15.DClead
1
3
2
1
10
3
4
9 8 7 6 5
