Raychem H910 - Installation Procedure: Core Preparation; Manage Braid for H612;H622 Cables; Prepare Inner Jacket for All Cables; Prepare Bus Wires from Core

3
Installation Instructions
H910 Splice and Tee Kit
4a
For H612 and H622 heating cables only
4b
For H311, H611, and H621 heating cables only
5
For all heating cables
6
For all heating cables
7
For all heating cables

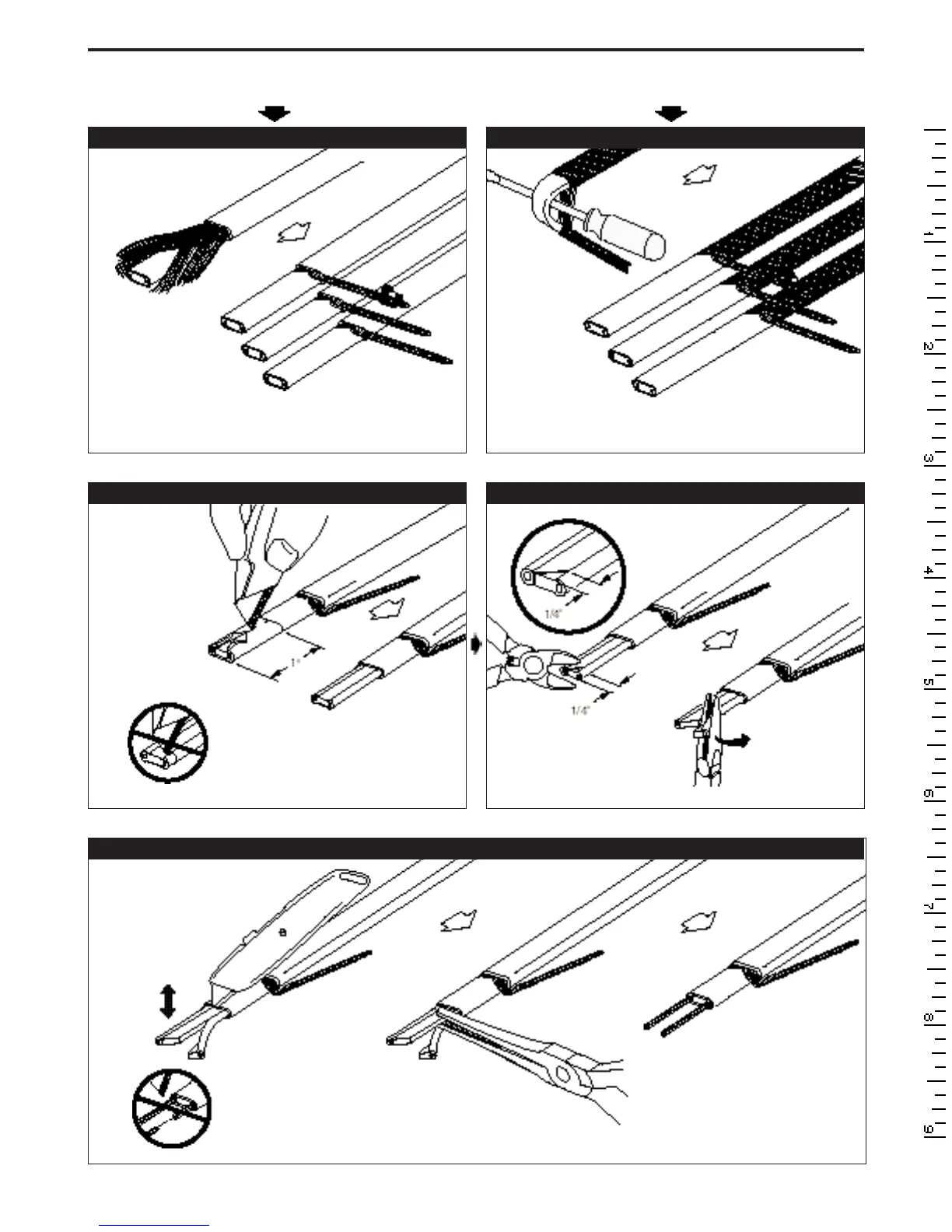

• Unravel the
braid back to
the outer jacket.
• Position braid on
same side of each
heating cable section.
• Straighten the braid and twist into a “pigtail.”
• Bend
heating cable
and work it
through
opening
in braid.
• Lightly score
completely
around and
down inner
jacket 1 inch
from end.
• Bend heating cable to
break jacket at score,
then peel off inner
jacket.
• Notch core at the end.
• Twist back and
peel bus wires
from core.
• Score between bus
wires at base jacket.
• Bend core to break it
free at base
jacket.
• Peel core and any
remaining material
from bus wires.
Repeat Steps 2–7 for
other heating cable
sections.
• Position braid on same side of each heating cable section.
• Straighten the braid and twist into a “pigtail.”
