Raychem H910 - Installation Procedure: Mastic and Connections; Apply Mastic to H612;H622 Cables; Apply Mastic to All Cable Ends; Align and Secure Cable Sections

4
Installation Instructions
H910 Splice and Tee Kit
8
For H612 and H622 heating cables only
9
For all heating cables
10
For all heating cables
11
For all heating cables

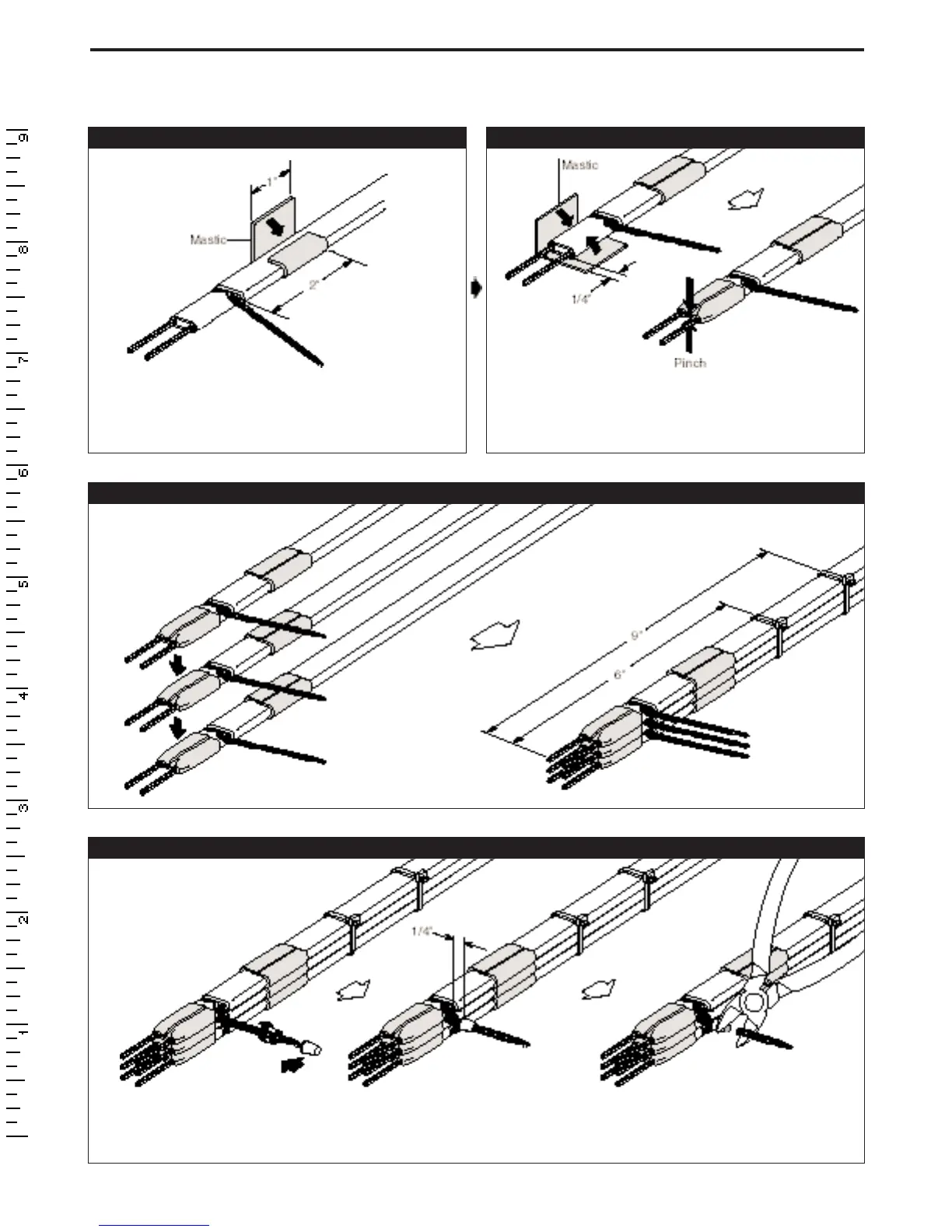

• Remove release
paper from mastic
strip.
• Wrap a piece of
mastic around the
outer jacket on
each heating
cable section.
• Pinch the mastic in
the center to com-
pletely seal the core
at the end of each
heating cable.
• Remove release
paper from mastic
strip.
• Wrap a piece of
mastic around the
end of each
heating cable
section and
position as shown.
• Carefully align the heating
cable sections and place
them together.
• Press mastic strips
firmly together.
• Fasten with a cable
tie at each of the two
positions shown.
• Twist the braid
pigtails together.
• Slide the uninsulated crimp
over braid to within 1/4" of
heating cable as shown.
• Crimp the braid, using the
Ideal crimp tool.
• Cut off the extra braid.
