Components Description
The detector is designed to capture radiographic images.
Captured images are transmitted to PC using the wireless/wired
connection.
The SparkLAN WPEA-121N 802.11 a/b/g/n half mini PCI-e
module is implemented. It supports 2T2R (2 transmit 2 receive)
MIMO technology, which delivers throughput up to 300Mbps.
1417WCA (FCC ID: QIIRY1417WCA) in the RF module (FCC ID:
PPD-AR5BHB116) does not use DFS band.
The module adopts the latest 802.11n Dual-Band technology
(2.4Ghz and 5Ghz). The transmitter of the module is powered by
host equipment(Detector). The antennas are 2 printed-dipole
antennas.

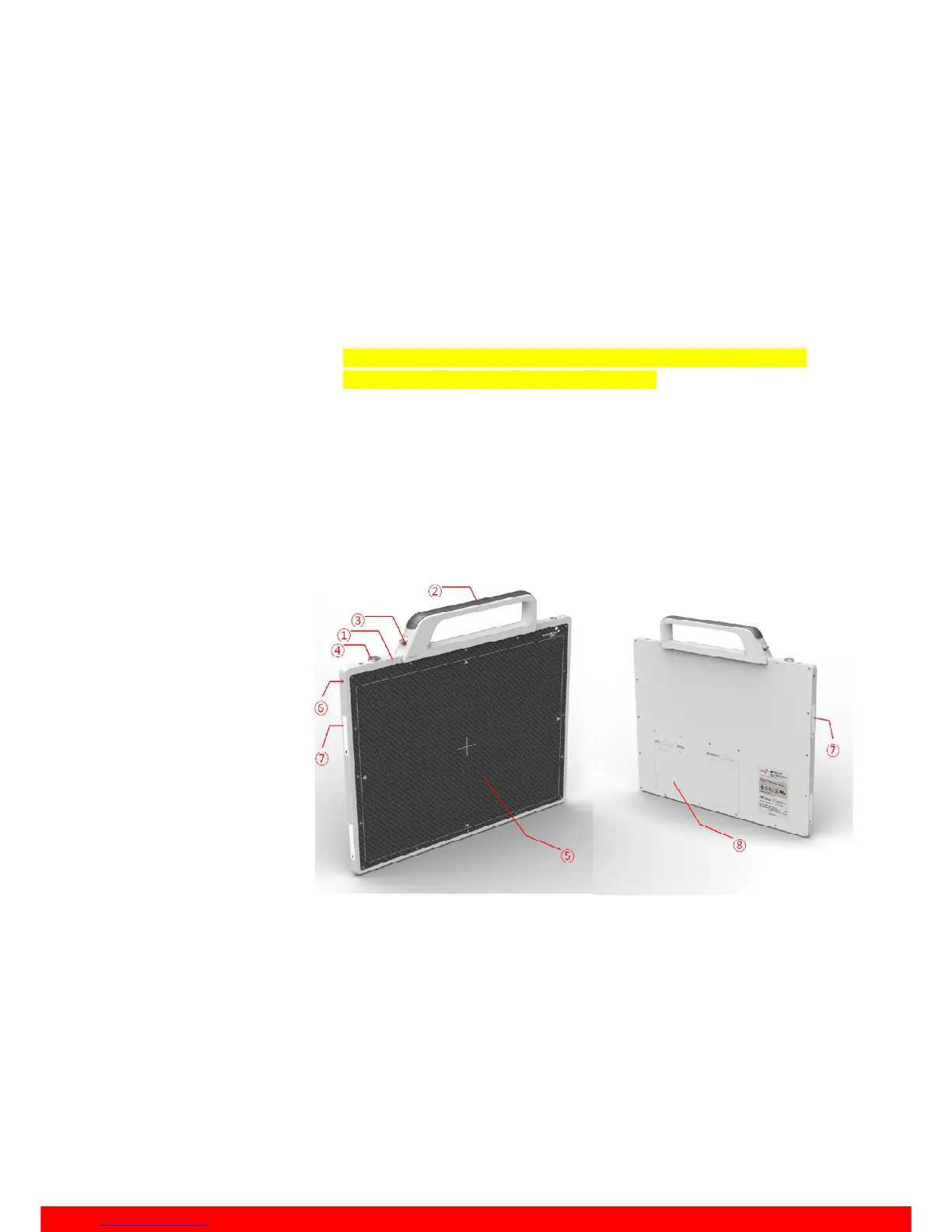

(1) Detector
1. LED indicator: The LED indicates the state of detector.
i. Green on : Power on.
ii. Blue blinking : Wireless Connection.
iii. Orange on : Low battery.
2. Handle : Hold this handle when carrying the sensor unit. It is
removable.
3. Handle unlock-lever : This is an unlock-lever to remove handle.
To Next Page
