Raypak RHP100 - Heat Pump Assembly Replacement Parts List - RHP 115

15

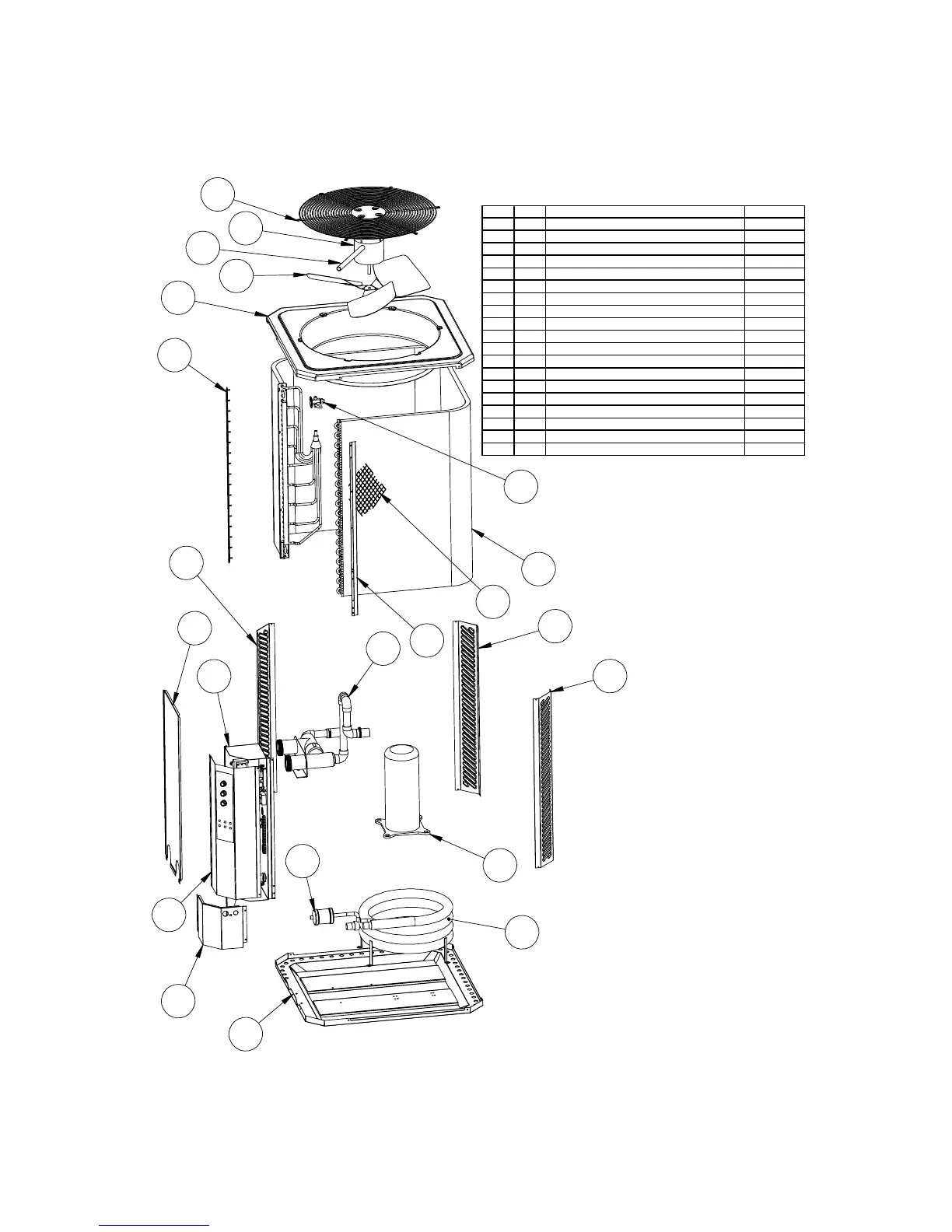

Heat Pump Assembly Replacement Parts List - RHP 115
11
15
13
12
5
9
2
9
16
7
7
18
14
6
7
3
17
19
4
10
1
8
RHP 115
*See assembly drawing in this manual
ITEM
QTY
DESCRIPTION PART No.
1 1 Assembly Base 81-20140
2 1 Evaporator Coil 40-10002
3 1 Access Panel 81-50141
4 1 Power Input Panel 81-40151
5 1 Cover, Top 81-10140
6 1 Compressor, Scroll 30-10001
7 3 Corner Support 81-60151
8 1 Heat Exchanger 20-10004
9 2 Retainer, Screen 70-10008
10 1 Control Panel Cover *
11 1 Fan Guard 82-10001
12 1 Fan Blade 82-10002
13 1 Fan Motor 82-10003
14 1 Water Manifold Assembly 63-10002
15 1 Conduit, Fan 62-10014
16 1 Coil Guard 41-10003
17 1 Control Panel Assembly *
18 1 Expansion Valve 21-10008
19 1 Filter Dryer BFK-165 S 21-10019
