05. Electrical maintenance
Owner manual

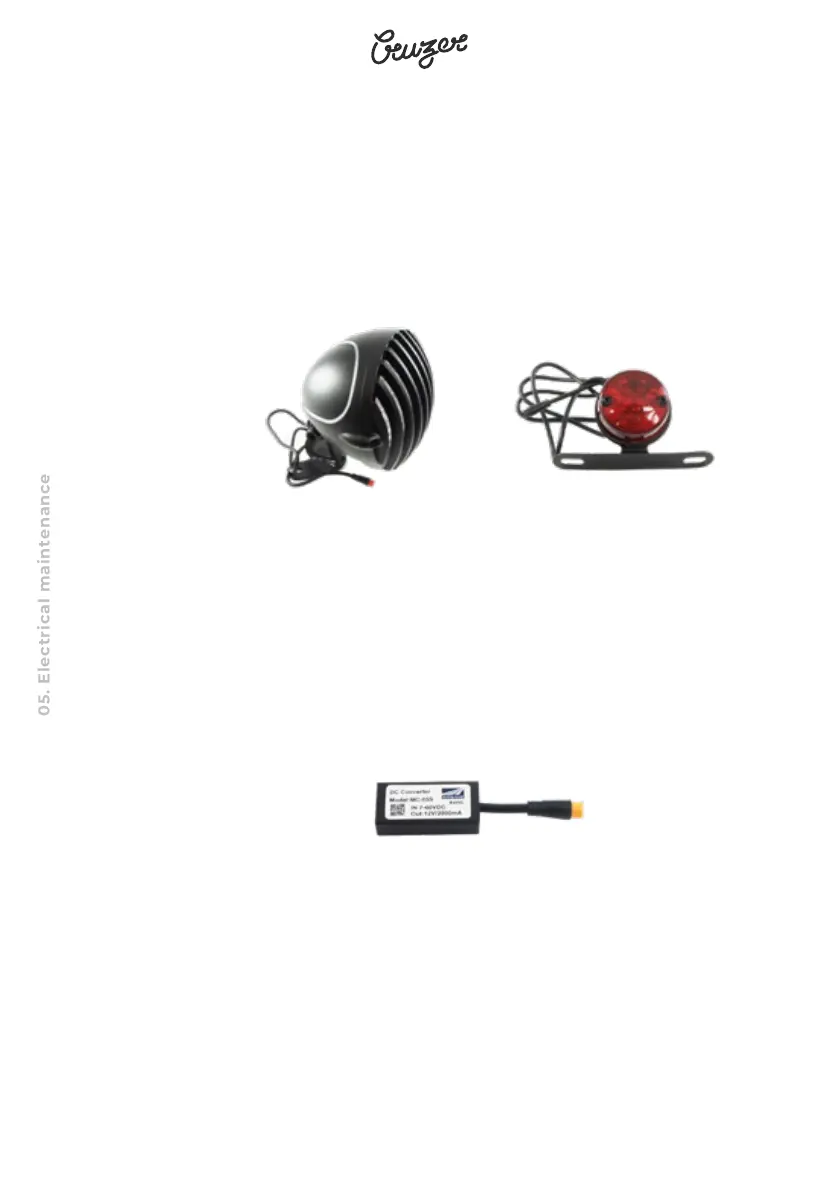

Light Kit:
Rayvolt Bikes have a front light and a rear light. Both lights
are powered directly by the battery at 48 V.
DC Converter:
It is a DC-DC voltage rectifier that allows 7 to 60 V inputs
and 3.3 to 33 V outputs. This component is connected in
parallel with the battery in order to have a 12 V output.
Wire Set:
• Main wire: Directly connected to the controller we
have the hub, the PAS / Torque sensor and the Tank
Wire.
REAR LIGHTFRONT LIGHT
