Owner manual

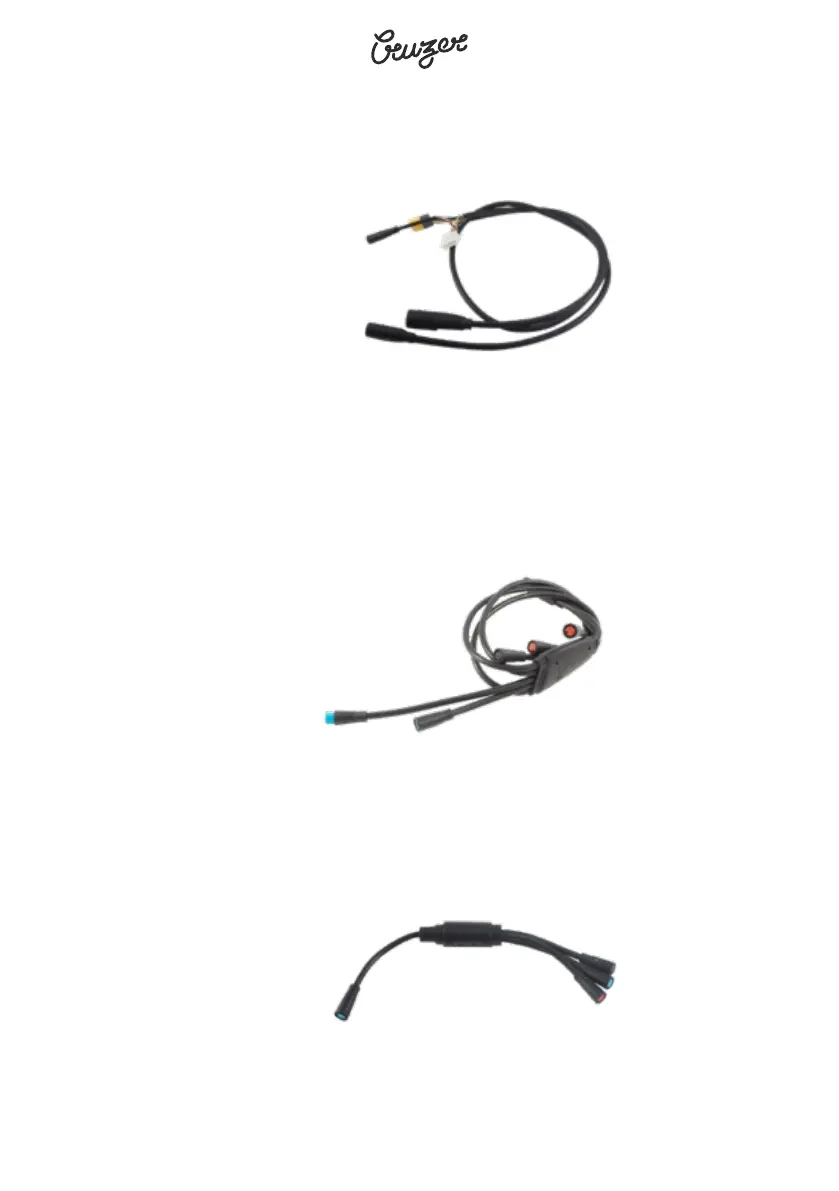

• Tank wire: Secondary connection to the controller.
It serves both as a power supply and as a data bus. It
shares bidirectional signals between controller-throttle
controller-brake sensors. It is used to power both the
throttle LEDs and the front and rear lights and all
sensors / actuators.
• Light wire: Splitter used to power both the front and
rear lights. In addition to receiving signals from the
switch.
