Owner manual
fuses of the wiring of the battery and inspect them. There
are two fuses, one red and one green. The green one
is covered by a black plastic cover. In the case a fuse is
blown, it needs to be replaced. In order to recognise if a

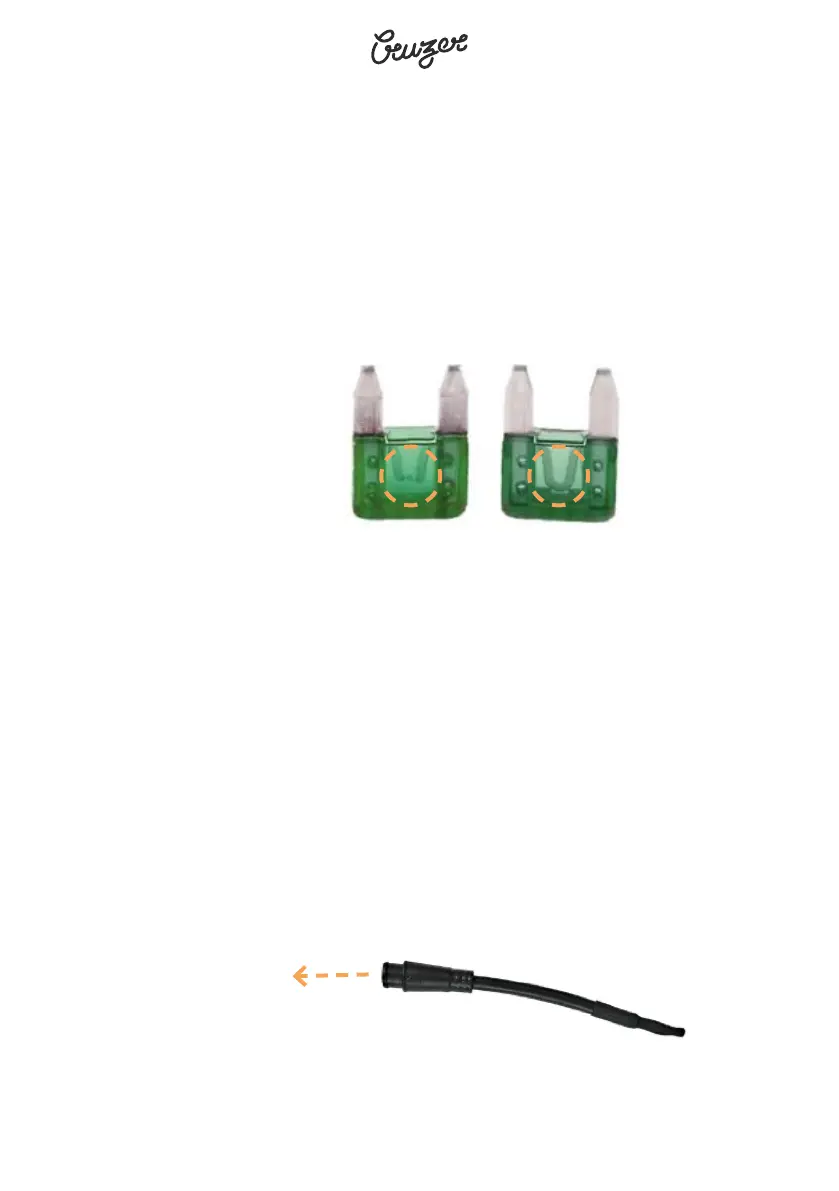

fuse is blown, check the following image:
3. End plug wire not connected:
If the bike is still not working, the next step is to open the
tank case of your Cruzer. Inside, you will find some of the
wiring system of the bike. There may be a black plastic
cover hiding some of the connections. If needed, remove
the two bolts from the medal and you will be able to
remove the plastic cover. Otherwise, the wiring system
may be also pulled through the hole. Search for the wire
End plug (consult the section “05 Electrical maintenance”
in this manual to identify it), and check that it is well
connected to the 6 pins green connector.
BLOWN FUSE INTACT FUSE
