CRAZY CART XL PARTS
Keep your product running for years with genuine Razor parts. Visit our web site for more information on spare part availability.
(Specifications subject to change without notice.)
1
2
3
4
5
2
6
7 8 9 10 11 12 13
16
14
18
17
19
20
15

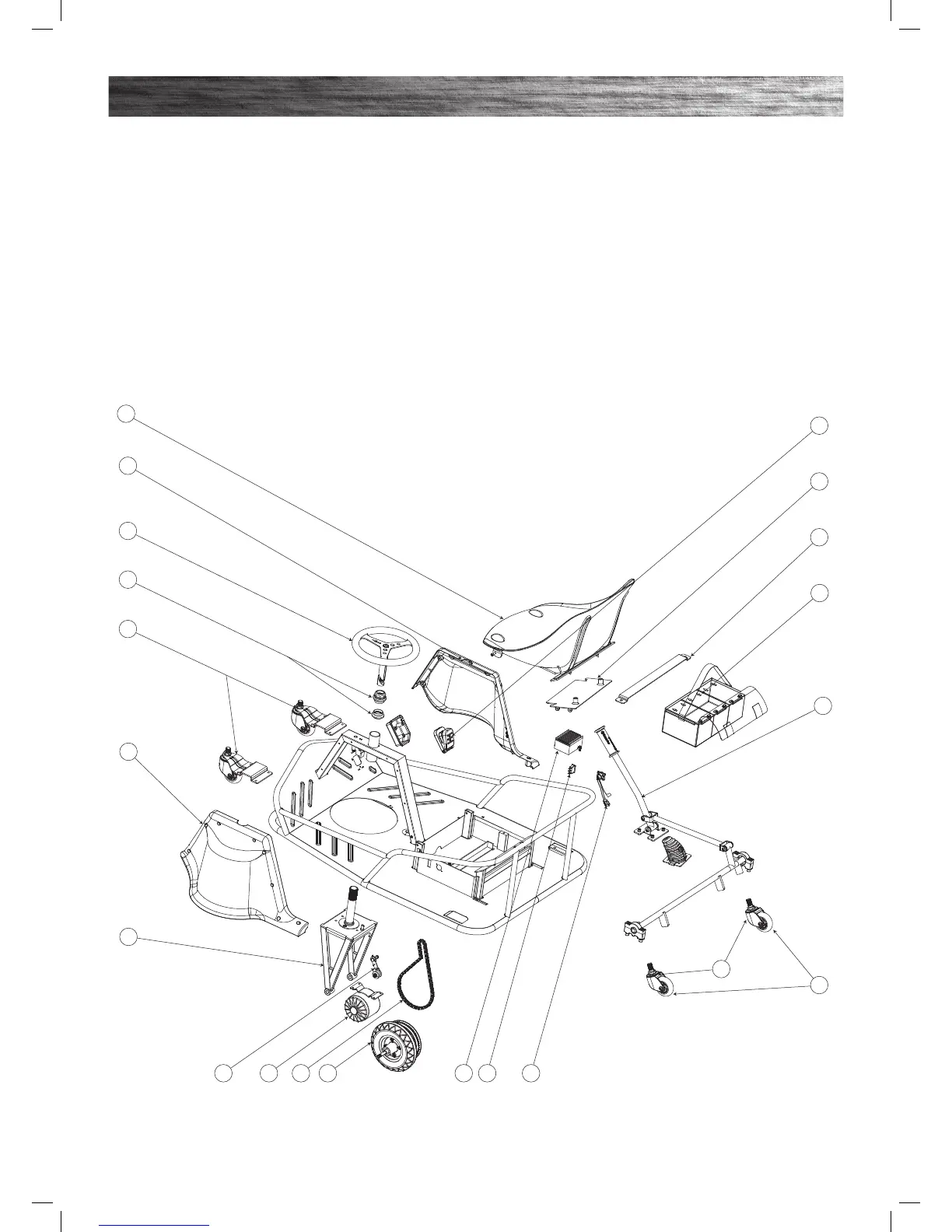

1. Seat
2. Motor Cover (Right/Left)
3. Steering Wheel
4. Headset (Upper/Lower)
5. Front Stabilizing Casters
6. Front Fork
7. Chain Tensioner
8. Motor
9. Chain
10. Front Wheel
11. Control Module
12. On/Off Switch
13. Charger Port
14. Rear Wheels
15. Rear Casters
16. Drift Bar
17. Battery /w 30 Amp Fuse
18. Battery Strap
19. Battery Cover
20. Foot Pedal (Throttle)
21. Flag (not shown)
