Razor E300 Series User Manual

1-1
1-2
1
2-1
2
3
5
6
7
8
9
4
1
23
24
22
21
14
1312
10
11
17
18
19
20
15 16
E300S Series Only
11

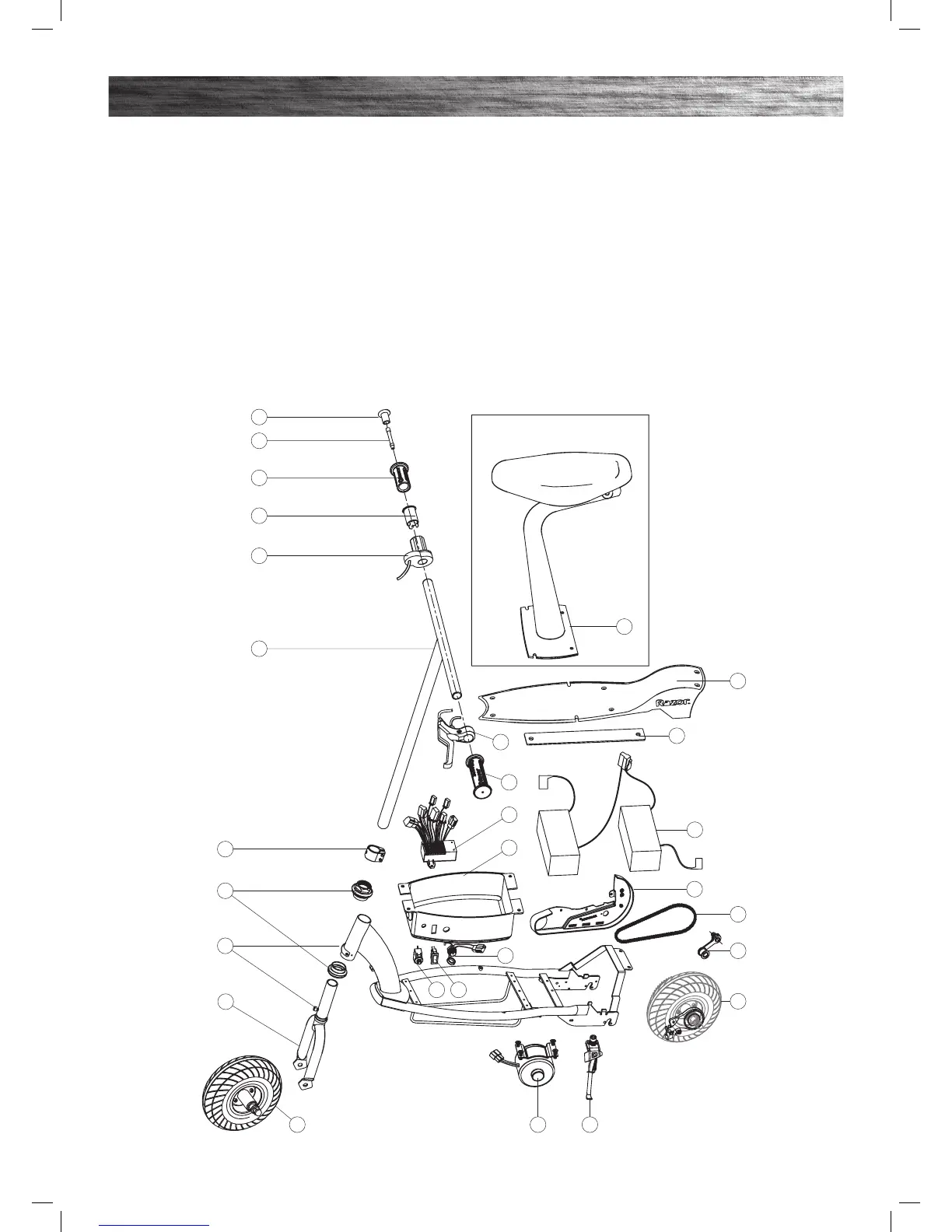

E300/E300S SERIES ELECTRIC SCOOTER PARTS
Keep your scooter running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)
1. Handlebar Grip (right/left)
1-1 Handlebar End Cap
1-2 Valve Extender
2. Single Speed Twist Grip Throttle
2-1 Sleeve
3. Handlebar Stem
4. Brake Lever Assembly
5. Collar Clamp
6. Headset (upper/lower)
7. Limiter and Cover
8. Front Fork
9. Front Wheel Complete
(See page 8 for hardware sequence)
10. Control Module
11. Battery Tray
12. Reset Button
13. On/ Off Switch
14. Charger Port
15. Motor (24V/250W)
16. Kickstand
17. Rear Wheel Complete
(See page 7 for hardware sequence)
18. Chain Tensioner
19. Chain
20. Chain Guard
21. Battery (2x 12V/7Ah)
22. Battery Bracket
23. Deck Plate with Grip Tape
24. Seat Post with Seat (E300S only)

Razor E300 Series Specifications

General

Max Speed	15 mph
Run Time	Up to 40 minutes of continuous use
Frame	Steel
Grips	Soft rubber
Downtube	Folding
Kickstand	Retractable
Charge Time	12 hours
Handlebar	Adjustable
Battery	24V (two 12V) sealed lead-acid
Motor	250-watt, high-torque, chain-driven motor
Weight Capacity	220 lbs
Tires	9" pneumatic front and rear tires
Throttle	Twist-grip
Brake	Hand-operated, rear
Age	13+
Range	Up to 10 miles (16 km)
