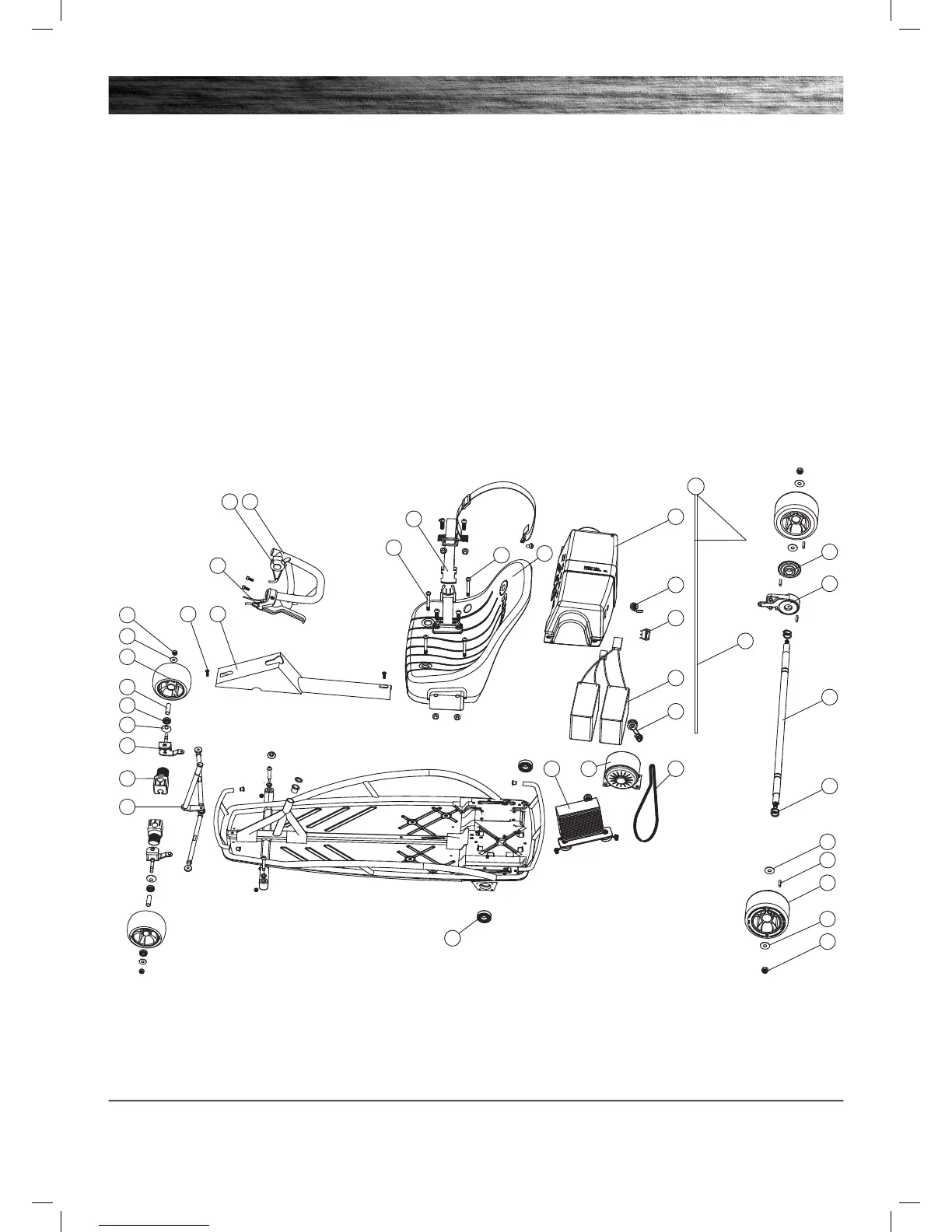

GROUND FORCE DRIFTER PARTS
Keep your Ground Force Drifter running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)
1. Steering Wheel
2. Thumb Tab Throttle
3. Brake Lever
4. Front Wheel (x2)
4-1 Nut, M8 Nylock Self Locking (x2)
4-2 Washer (x2)
4-3 Front Wheel Spacer (x2)
4-4 Bearing 608Zz 8X22 (x4)
4-5 Spring Washer
5. Spindle (Right/Left)
6. Protector (x2)
7. Steering Assembly
8. Axle Bearing 6904Zz 20X37 (x2)
9. Control Module
10. Motor (250W)
11. Chain
12. Rear Wheel (x2)
12-1 Nut
12-2 Washer (x2)
12-3 Key Way A 5X5x20 (x2)
13. C-Clips (x2)
14. Rear Axle
15. Brake Drum
16. Sprocket
17. Chain Tensioner
18. Battery with Fuse (12V / 7Ah) (x2)
19. Flag
20. On/Off Switch
21. Charger Port
22. Battery Cover
23. Seat
23-1 Long Coupling Bolt (x2)
23-2 Short Coupling Bolt (x2)
24. Lap/Shoulder Belt
25. Steering Cover
25-1 Screw M5x16 (x2)
