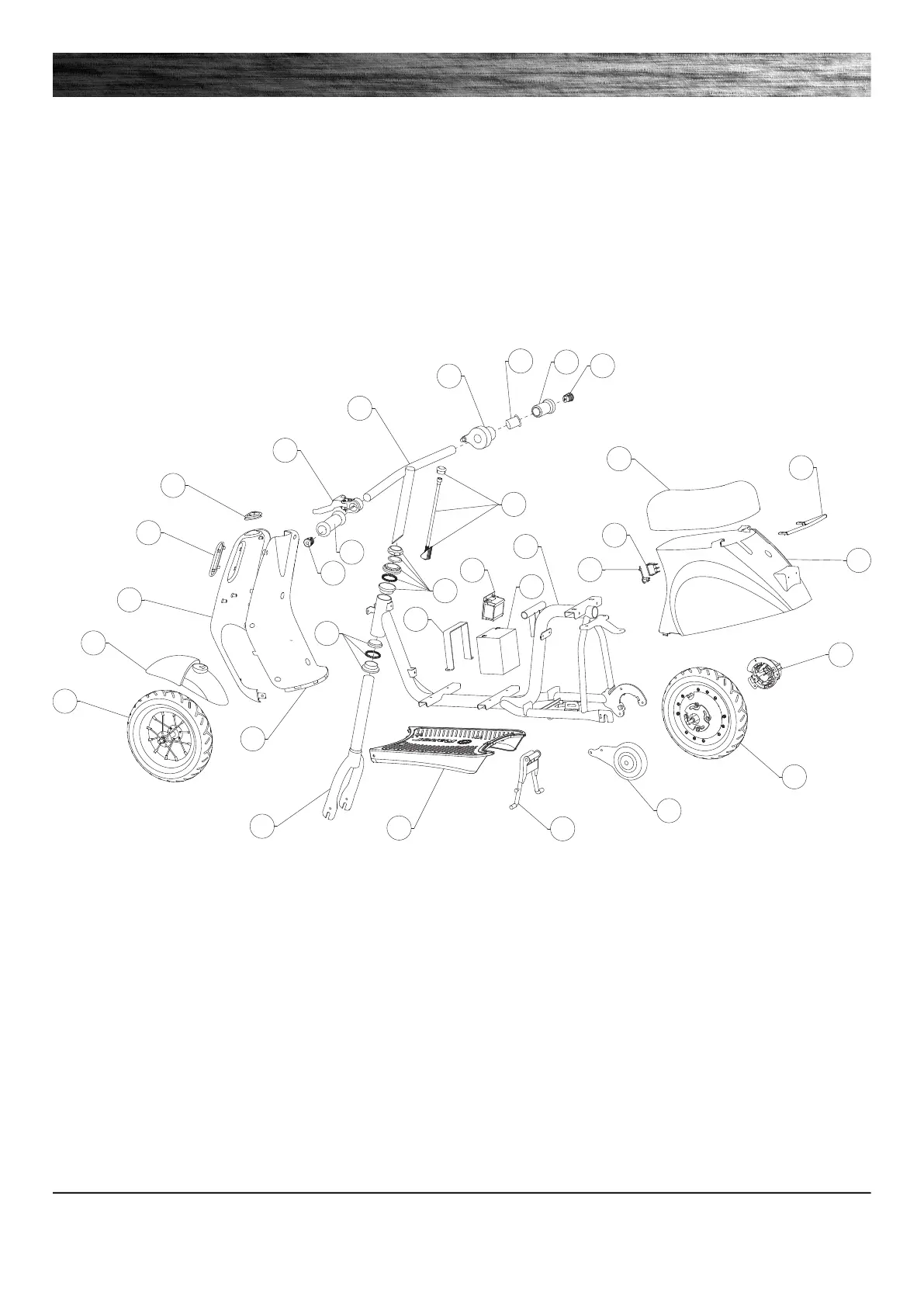

POCKET MOD PETITE PARTS
Keep your Pocket Mod Petite running for years with genuine Razor parts. Visit our website or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)
1. Handlebar End Cap (Right/Left)
2. Handlebar Grip
3. Single-Speed Twist-Grip
Throttle
3-1 Sleeve
4. Handlebar
5. Brake Lever Assembly
6. Handlebar Grip
7. Wire Protecting Ring
8. Plastic Cover
9. Front Cover Plate
10. Front Fender
11. Front Wheel Complete
12. Back Cover Plate
13. 6 mm Stem Bolt w/ Wedge
14. Headset (Upper/Lower)
15. Frame
16. Front Fork
17. Base Fairing
18. Center Stand
19. Brake
20. Rear Wheel Complete/Hub
Motor
21. Hub Motor Cover
22. Rear Tail Plate
23. Back Handle
24. Seat Cushion
25. On/Off Switch
26. Charger Port
27. Control Module
28. Battery Retaining Strap
29. Battery (12V/5aH)
