Attaching the Handlebars
Required Tool: 5 mm Allen Wrench (included with select models ONLY)
Unfolding the Scooter for First Time Use
(Select models Only)

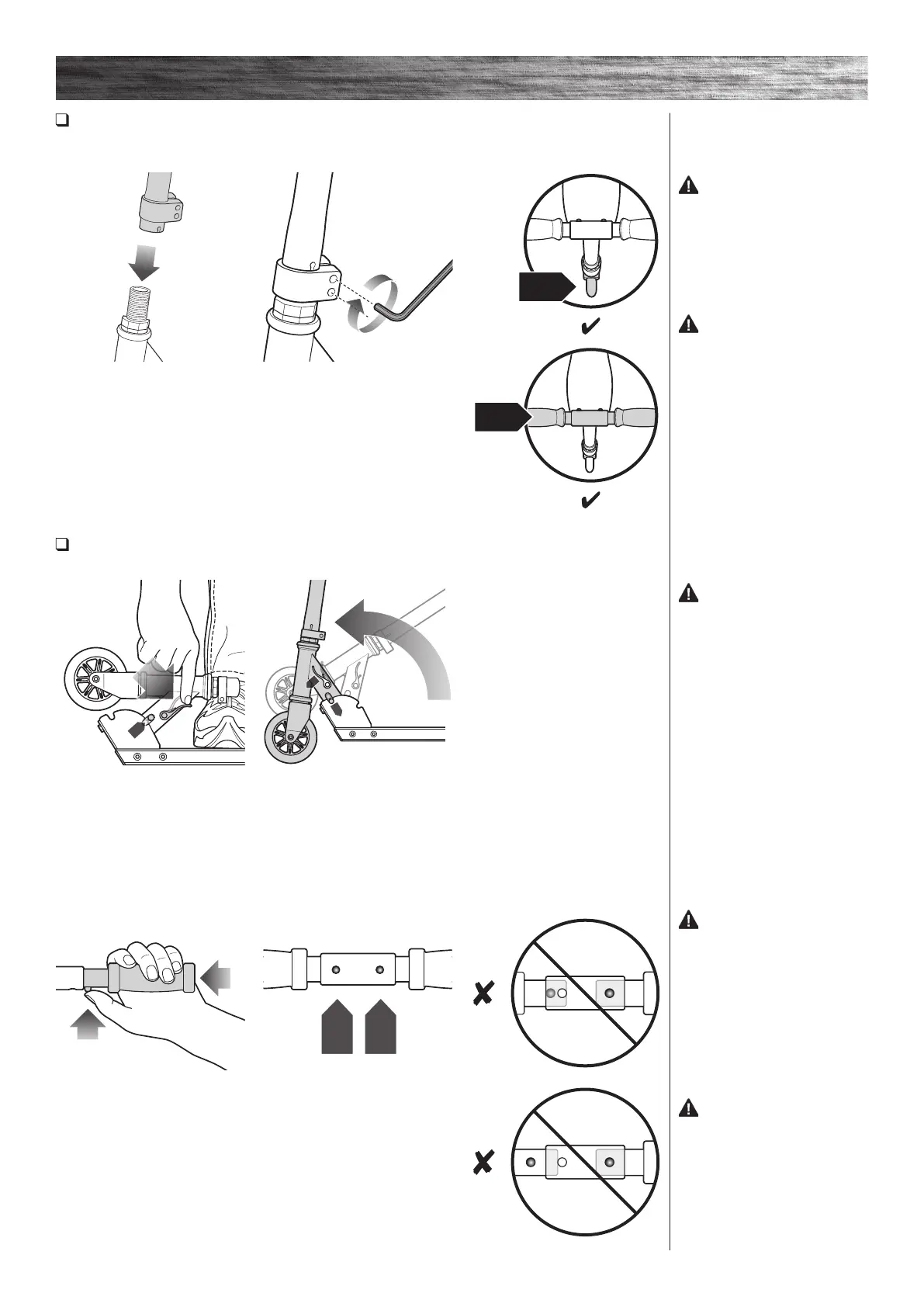

ASSEMBLY AND SET-UP
2 With the front wheel pointed
straight ahead and the handlebars
square to the front wheel and
the Razor logo facing the front,
tighten the clamp as shown.
Tighten securely. On the A4,
alternately tighten each bolt until
securely tightened.
1 Loosen the collar clamp and
slide it upward. Insert T-bar into
the fork until it bottoms out on the
headset locknut.
Note: If necessary, carefully twist
the T-bar side to side while pushing
downward until T-bar bottoms out
on the headset locknut.
WARNING: Failure to
properly install and tighten the
collar clamp may cause the rider
to lose control and fall. If you are
having difficulty understanding
these instructions, please
contact Razor Customer Service
for assistance.
WARNING: Do not attempt
to thread the handlebar into the
front fork thread. Tighten collar
clamp securely.
Note: The joint-release lever is
spring-loaded and will automatically
lock in the upright position when
fully upright.
3 Make certain BOTH handlebars
are properly locked onto the T-bar.
1 To release the folding
mechanism, place the scooter on
the ground, put one foot on the deck
plate and push joint-release lever
down. Raise T-bar up until
it is securely locked in the
upright position.
2 Insert and secure the left and
right handlebars by pressing the
spring-loaded buttons and inserting
them into the T-bar.
WARNING:
Keep fingers clear of the pivoting
mechanism when folding or
unfolding the scooter. Make sure
others are standing clear.
WARNING: Failure to
properly engage the spring-loaded
buttons may cause the handlebars
to dislodge while riding and may
cause you to lose control and
fall. When correctly engaged the
handlebars will not rotate nor will
they move sideways. Note that
when properly engaged, the spring-
loaded buttons are clearly visible in
the holes on the T-bar.
WARNING: Check hand
grips and end caps regularly
for wear or damage, as they
are designed to aid in gripping
handlebars and to provide some
protection against possible impact.
Replace immediately if worn, torn,
damaged or missing.
