Razor Trikke E2

3

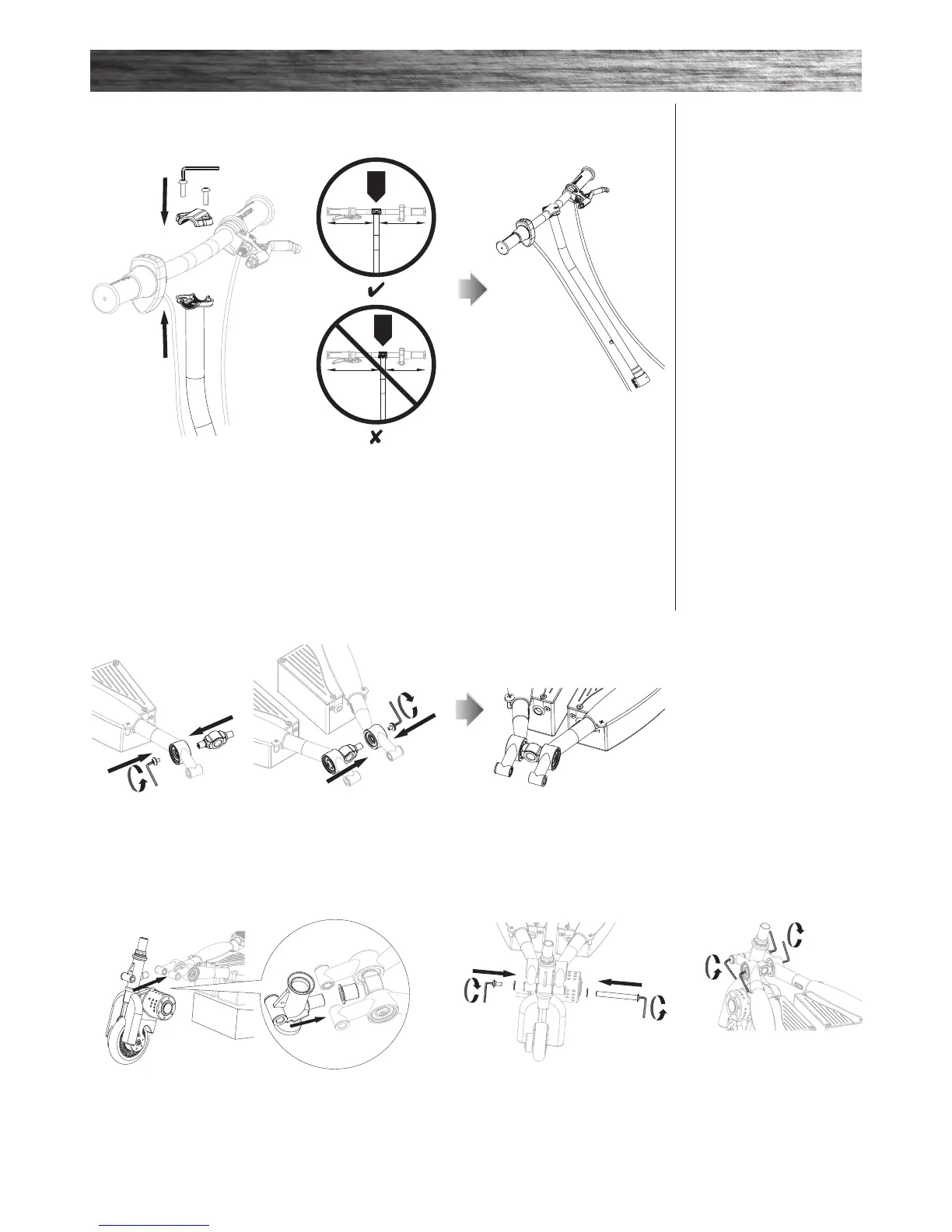

ASSEMBLY AND SET-UP
q Attaching the Handlebars
Tools Required: 5mm Allen wrench
q Attaching the Leg Tubes
Tools Required: 5mm Allen wrench
Place battery compartments on level surface, so leg tubes are even. You may use wedge packing material or table.
2 Center the handlebars onto the
stem. Make sure the arc on the
handlebars is facing outward and
the arc of the stem is facing inward.
3 Align the holes on the handlebar
clamp with the holes on the stem
and tighten bolts until handlebars
are securely in place.
2 Attach the left leg tube to
the other side of the rotational
connector. Using a 5mm Allen
wrench, slightly tighten bolt to
hold leg tube in place.
1 Using a 5mm Allen wrench,
remove the 2 bolts on the
handlebar clamp.
1 Insert the rotational connector
(A) into the right leg tube as
shown. Using a 5mm Allen
wrench, slightly tighten bolt to
hold connector (A) in place.
4 Insert the front fork into the rotational connector.
3 Adjust the rotational connector
so the opening is positioned as
shown.
5 Insert coupling bolt as shown and tighten using two (2) 5 mm Allen
wrenches until secure.
(A)
