RBtec IRONCLAD - Page 16

16 /
28

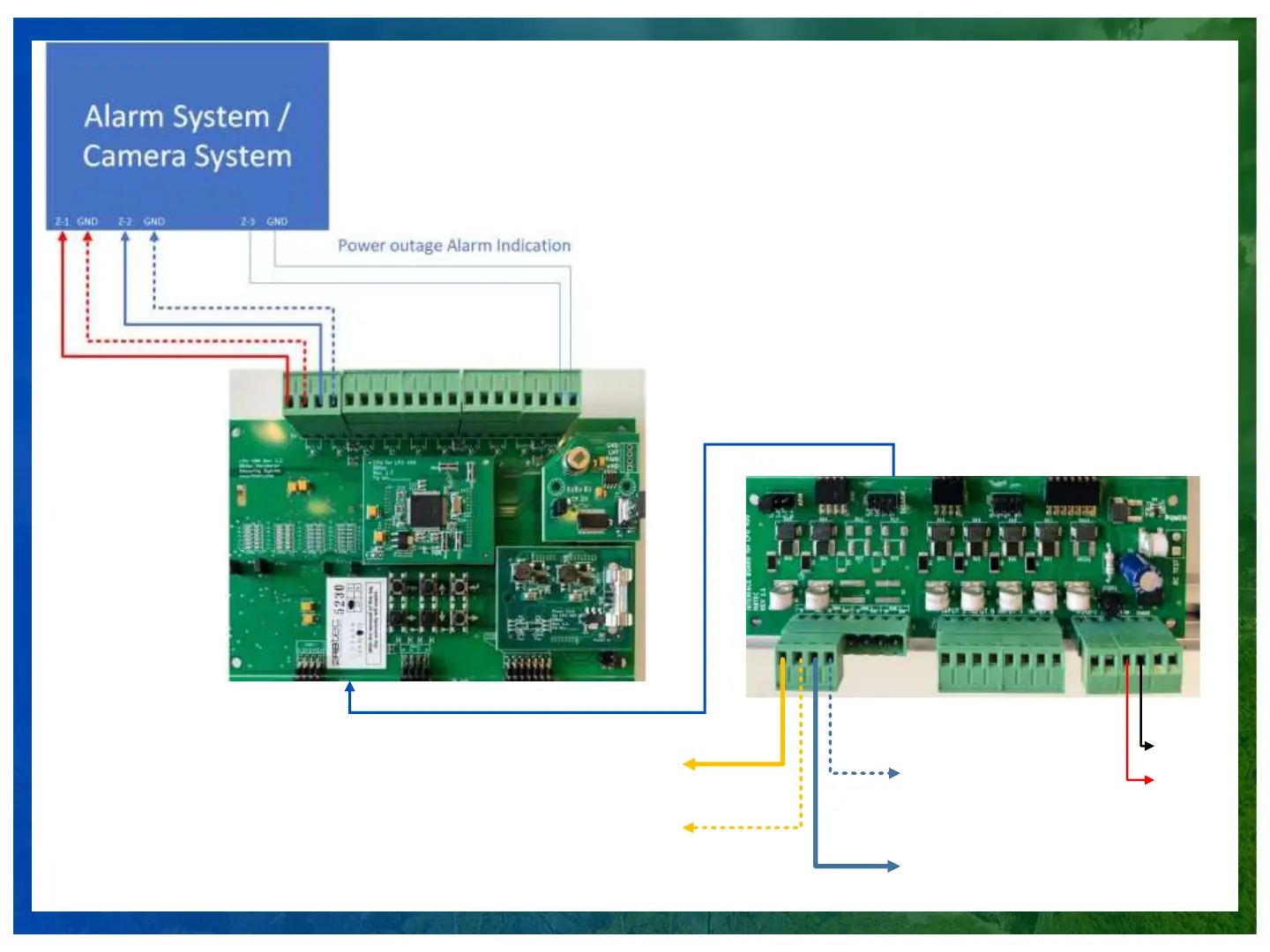

LPU-402 Wiring
Sensor Center
Wire Zone 1
GND – Ground
Wire Zone 1 Sensor
Center Wire
Zone 2
GND –
Ground Wire
Zone 2
(+) DC
12-24
(-) DC
Alarm System /
Camera System
Z-1 GND Z-2 GND Z-3 GND
Power outage Alarm Indication
