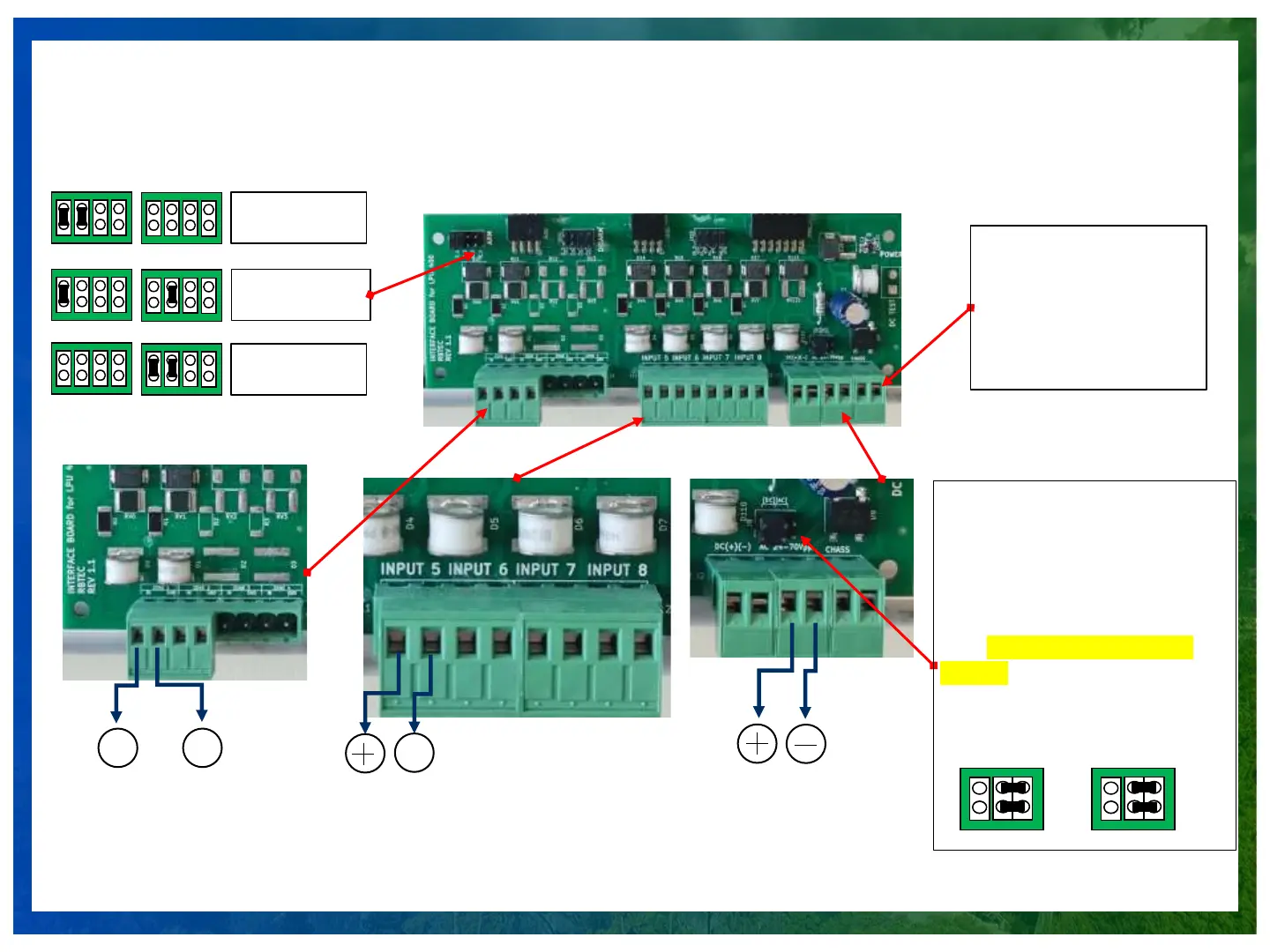

Interface Board Inputs Overview
2 Sensor Cable Inputs
4 General Inputs
for Any Sensors
DC
Power Input
GND
GNDZ1
12-24
VDC
Chassis Ground Wire
Connect the chassis wire to a
true Ground. The purpose of the
chassis is to protect the board
against surges and lightnings
ARM
DISARM
Zone 1 & 2 Armed
Zone 1 Armed Zone
2 Disarmed
Zone 1 & 2
Disarmed
Power input
DC – 12-24V
The board will function on any
voltage in this range.
AC – DO NOT CONNECT AC
POWER
DC AC
OR
AC/DC Switch
Do Not Use
