26
1. Place unit in service position. See
Service
Position
on page 20.
2. Remove defective fuse.
3. Determine cause of fuse failure and
repair
condition.
4. Install new fuse.
Replace Relay
NOTICE: Relays are interchangeable. Use only
quality replacement parts.
See
Service
Parts
on
page 21.
1. Place unit in service position. See
Service
Position
on page 20.
2. Remove defective relay.
3. Determine cause of relay failure and repair
condition.
4. Install new relay.

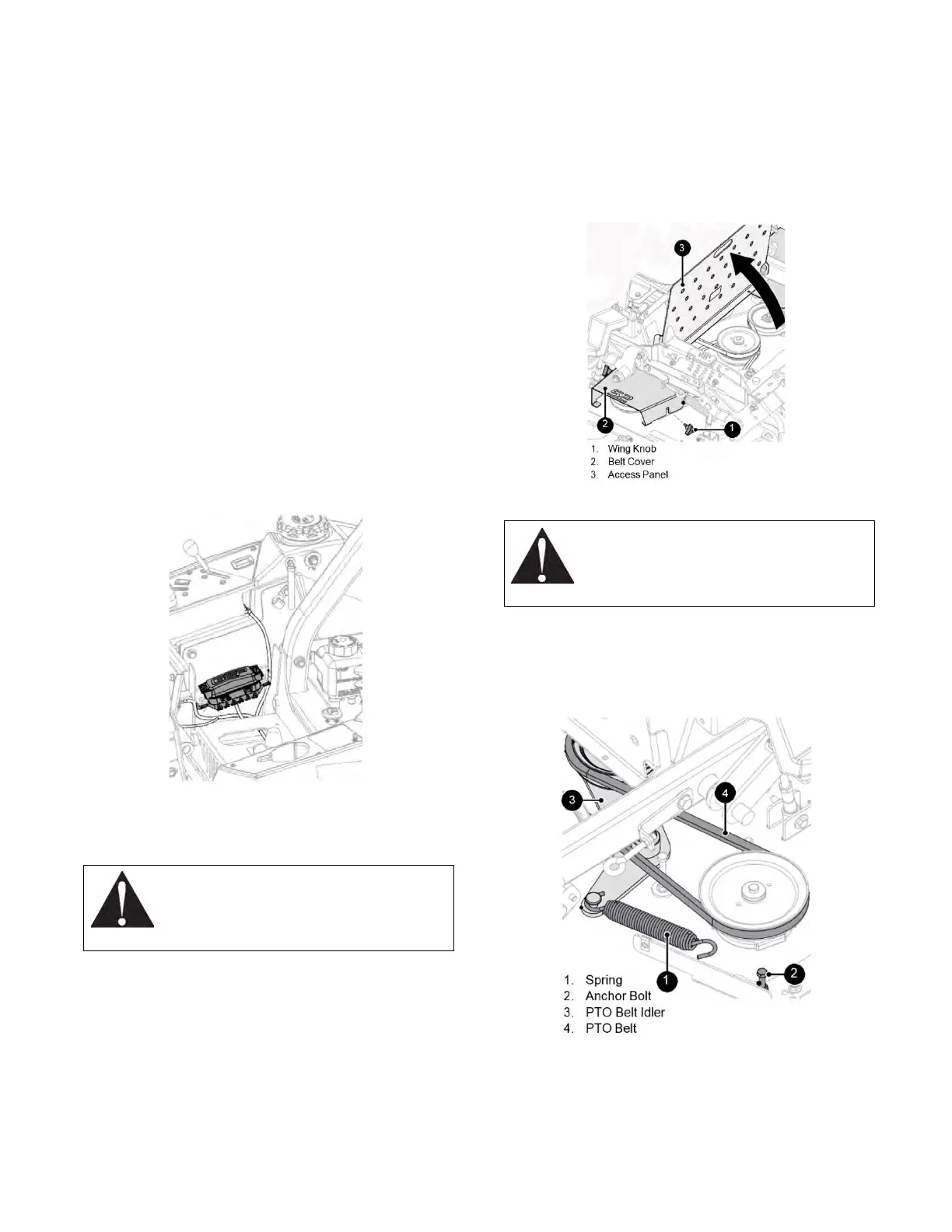

Figure 24
REPLACE MOWER BELTS
WARNING: Damaged or worn belts may
result in injury and / or damage to the unit.
Check belts often for excessive wear or
cracks.
Remove PTO Belt
See Figure 25.
1. Engage parking brake.
2. Stop engine, remove key, and wait for
moving parts to stop and for hot parts to
cool.
3. Position mower deck at lowest cutting
height.
4. Remove wing knobs securing belt covers to
deck and remove belt covers.
5. Open access panel.
Figure 25
WARNING: Use care when releasing idler
spring tension. Keep body parts away from
idlers when performing this operation.
See Figure 26.
6. Slowly remove spring hook from anchor
bolt
to release tension from belt idler.
7. Remove PTO belt.
Figure 26
