RCA 24F512T User Manual

RCA MODEL 24F512T (CHASSIS M134C)
COMB FILTER BOARD
SET 5267 Page 3

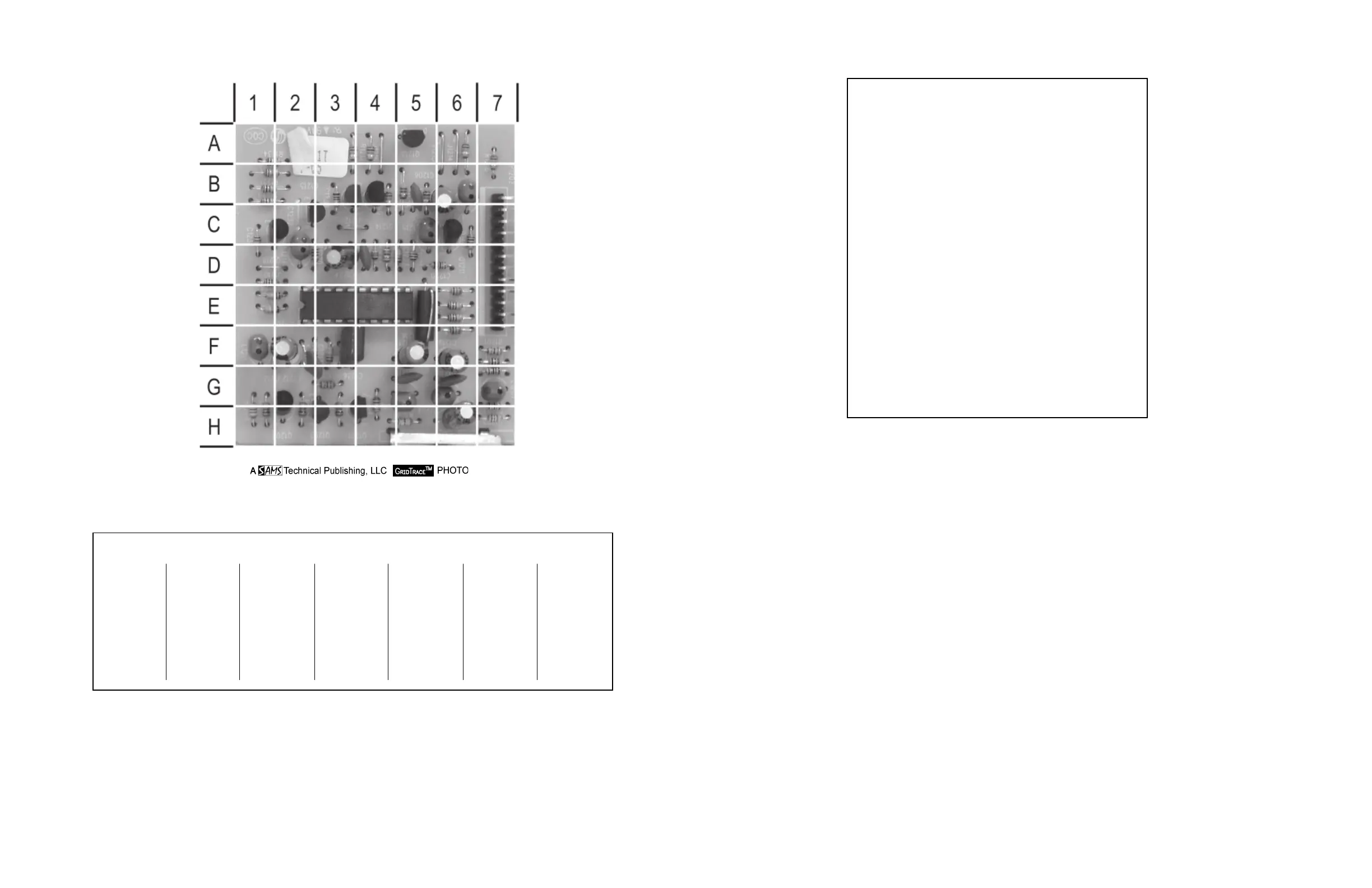

COMB FILTER BOARD, GRIDTRACE LOCATION GUIDE
C1201 F7
C1202 G7
C1203 H7
C1204 H6
C1205 B5
C1206 B6
C1211 F2
C1212 F2
C1213 F3
C1214 F3
C1215 F4
C1216 G5
C1217 F5
C1218 G6
C1219 F6
C1220 D6
C1221 D5
C1222 D4
C1223 D5
C1224 D3
C1225 D4
C1229 E1
C1230 E1
C1231 C1
C1233 B3
C1234 F6
C1235 E6
C1236 F3
IC1201 E2
L1201 G7
L1211 F1
L1212 H5
L1213 H6
L1214 D2
L1215 C5
L1216 E5
L1217 B6
P1202 F7
Q1201 H4
Q1202 G2
Q1203 H3
Q1211 C6
Q1212 B3
Q1213 A5
Q1214 B4
Q1215 C3
Q1218 C2
R1201 F7
R1202 H7
R1203 H5
R1204 G4
R1205 H2
R1206 H3
R1207 H1
R1208 H1
R1209 G3
R1211 E6
R1212 E6
R1213 D4
R1215 A6
R1216 A7
R1217 A4
R1218 B4
R1219 A3
R1220 D3
R1221 B1
R1228 D1
R1229 B1
R1232 B5
R1233 B1
R1234 A1
R1236 B5
R1237 C6
TEST EQUIPMENT
Test equipment listed by participating manufacturer illustrates
typical or equivalent equipment used by Sams engineers to obtain
measurements. This equipment is compatible with most types used
by field service technicians.
Equipment Sencore No.
Oscilloscope SC3100
Generators
RGB CM2125
Multiburst Signal VG91
Color Bar VG91
TV Stereo VG91
Digital VOM SC3100
Frequency Meter SC3100
Hi-Voltage Probe HP200
Accessory Probes TP212
Isolation Transformer PR570
Capacitance Analyzer LC102
CRT Analyzer CR7000
AC Leakage Tester PR570
Inductance Analyzer LC102
Flyback Yoke Tester TVA92
Field Strength Meter SL753
Transistor Tester TF46
Horizontal Analyzer HA-2500
Video Analyzer VG91, TVA92
