4 Chapter 1
Graphics contained within this publication are for representation only.
Connections & Setup

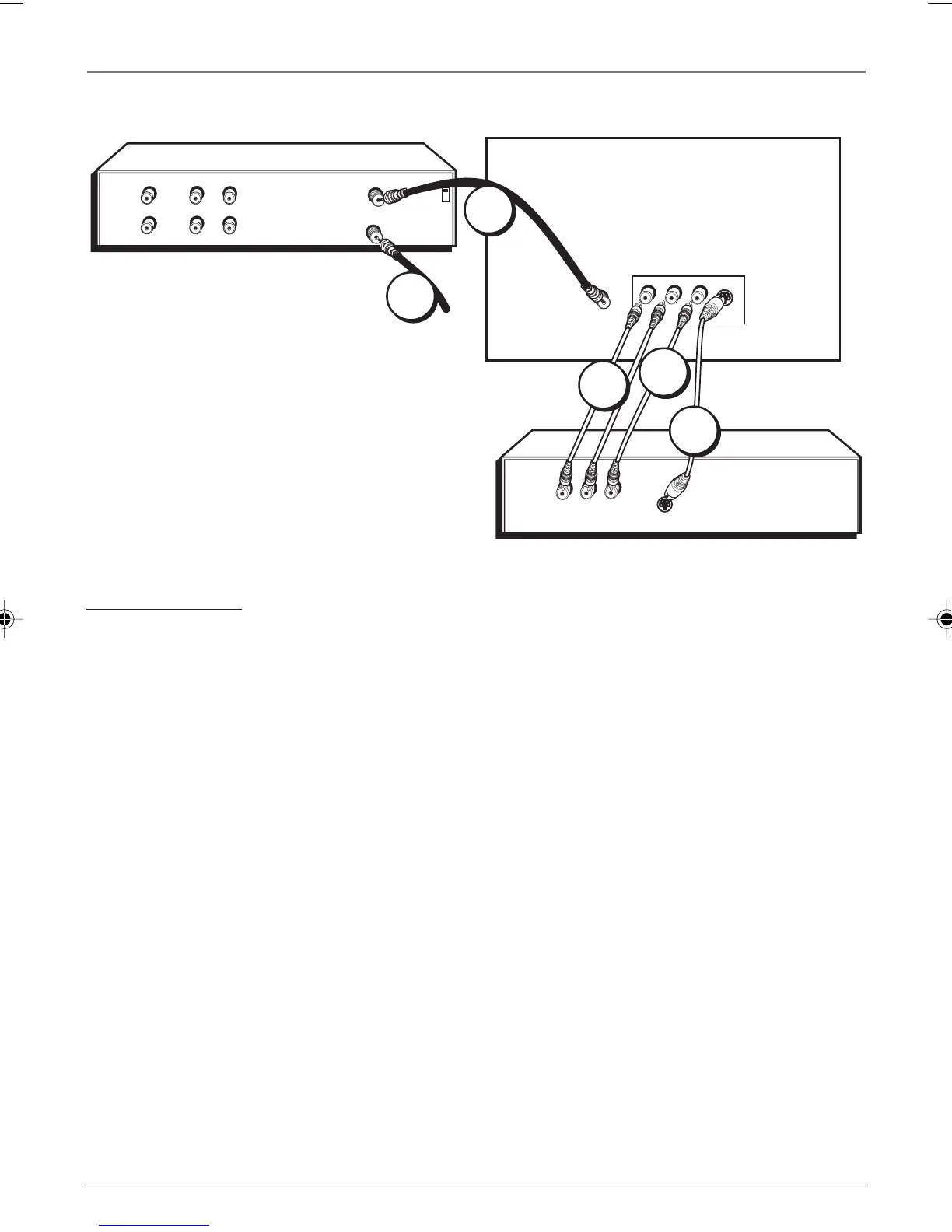

TV + DVD + VCR
1. Connect your DVD Player to your TV.
A. Connect the audio (white and red) cables to the R and L/MONO AUDIO jacks on the back of the TV and
to the Audio Output jacks on the DVD player.
B. If your DVD player has an S-Video jack, connect an S-Video cable to the S-Video jack on the DVD
player and to the S-VIDEO IN jack on the back of the TV. If your DVD player doesn’t have an
S-Video jack, go to C.
-OR-
C. Connect a video cable (yellow) to the Video Output Jack on the DVD player and to the VIDEO jack on
the back of the TV.
2. Connect your TV to your VCR.
Connect a coaxial cable to the TV ANT jack on your TV and to the Output Jack on your VCR (sometimes
labeled OUT TO TV).
3. Make sure cable or antenna is connected to your VCR.
Connect the coaxial cable from your cable outlet or antenna to the antenna input on the VCR.
Go to page 7
TV (back panel)
R
L/MONO
AUDIO
VIDEO
TV ANT
DVD
S-VIDEO
L
R
VIDEO
OUT
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
LR
AUDIO
IN
LR
From Cable
or Antenna
S-VIDEO IN
VIDEO 1
1A
2
3
1B
1C
1616332A.01_C&S 4/22/04, 4:05 PM4
To Next Page
