RCA 400

REMOVING BELTS
PUSH FIRST TURN
WITH THUMBNAIL
OR STRETCH SPLICE
OUT AND UNSCREW
70234
PHOTO - 70241
INCORRECT
REPLACING BELTS
COUNT NUMBER OF TURNS ON
SMALL END OF BELT.
TWIST SMALL END OF BELT
BACKWARDS-AS IF REMOVING
A SCREW-AN EQUAL NUMBER
OF TURNS.
SCREW ENDS OF BELT
TOGETHER. THIS METHOD
PREVENTS BELT FROM COMING
APART DURING OPERATION.
TO IDENTIFY UPPER AND
LOWER BELTS REMEMBER
"LOWER IS LONGER"
Tl UPPER
BELT
46937
LOWER
BELT
46936
PHOTO-70243
CORRECT

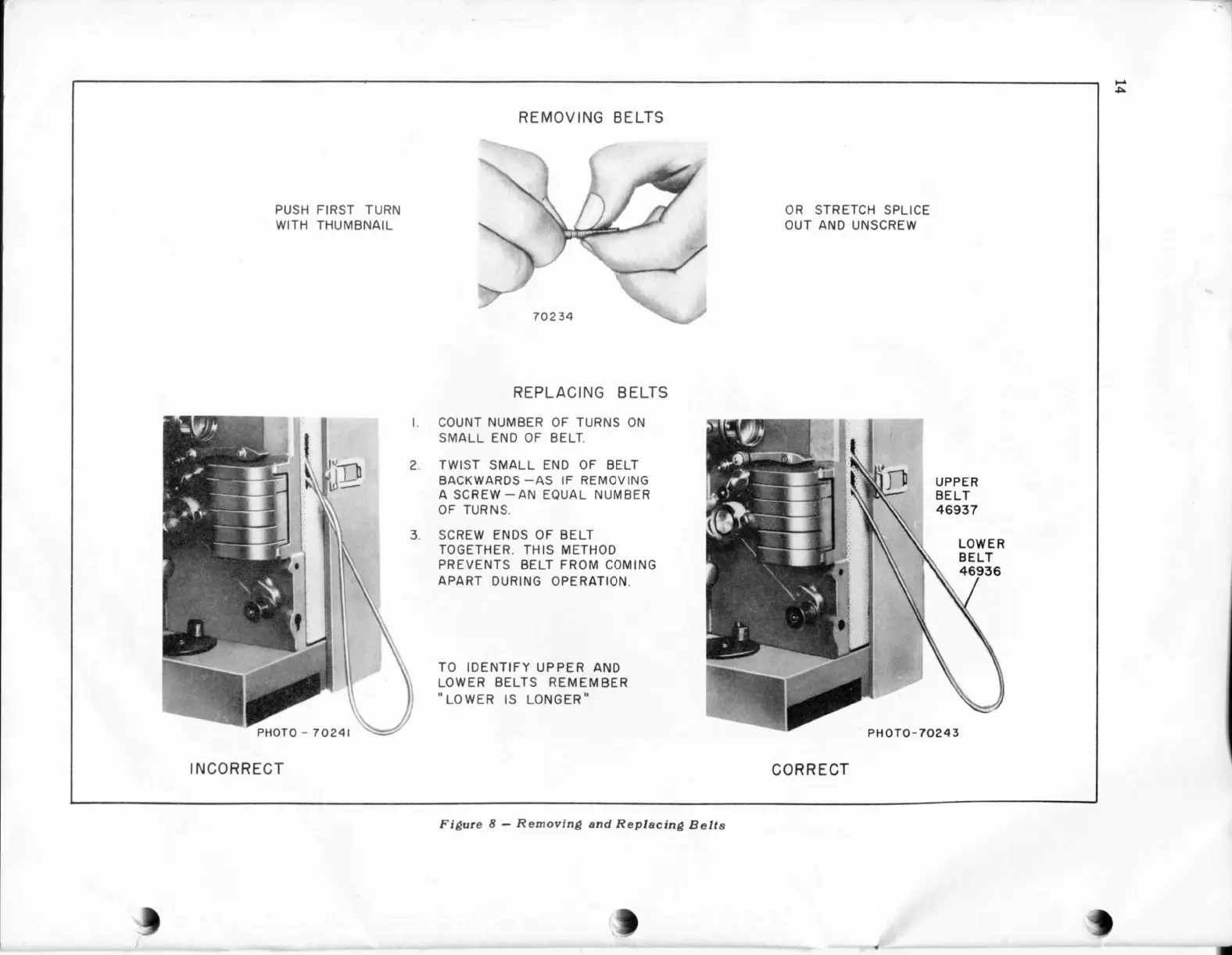

Figure 8 — Removing and Replacing Belts
