RCA 400

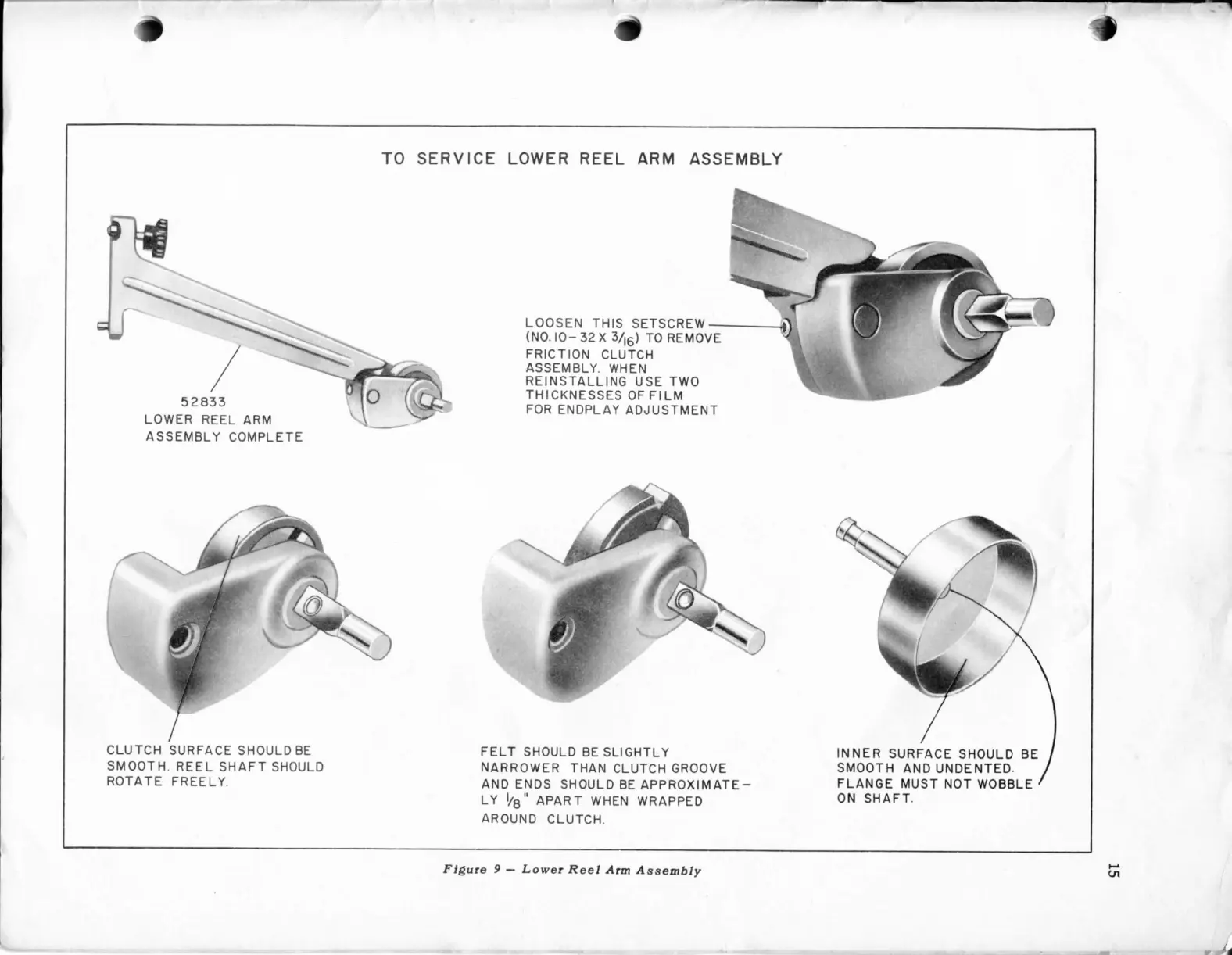

TO SERVICE LOWER REEL ARM ASSEMBLY
52833
LOWER REEL ARM
ASSEMBLY COMPLETE
LOOSEN THIS SETSCREW
(NO. 10- 32 X 3/|6) TO REMOVE
FRICTION CLUTCH
ASSEMBLY. WHEN
REINSTALLING USE TWO
THICKNESSES OF FILM
FOR ENDPLAY ADJUSTMENT
CLUTCH SURFACE SHOULD BE
SMOOTH. REEL SHAFT SHOULD
ROTATE FREELY.
FELT SHOULD BE SLIGHTLY
NARROWER THAN CLUTCH GROOVE
AND ENDS SHOULD BE APPROXIMATE-
LY I/Q" APART WHEN WRAPPED
AROUND CLUTCH.
INNER SURFACE SHOULD BE
SMOOTH AND UNDENTED.
FLANGE MUST NOT WOBBLE
ON SHAFT.
Figure 9 — Lower Reel Arm Assembly
