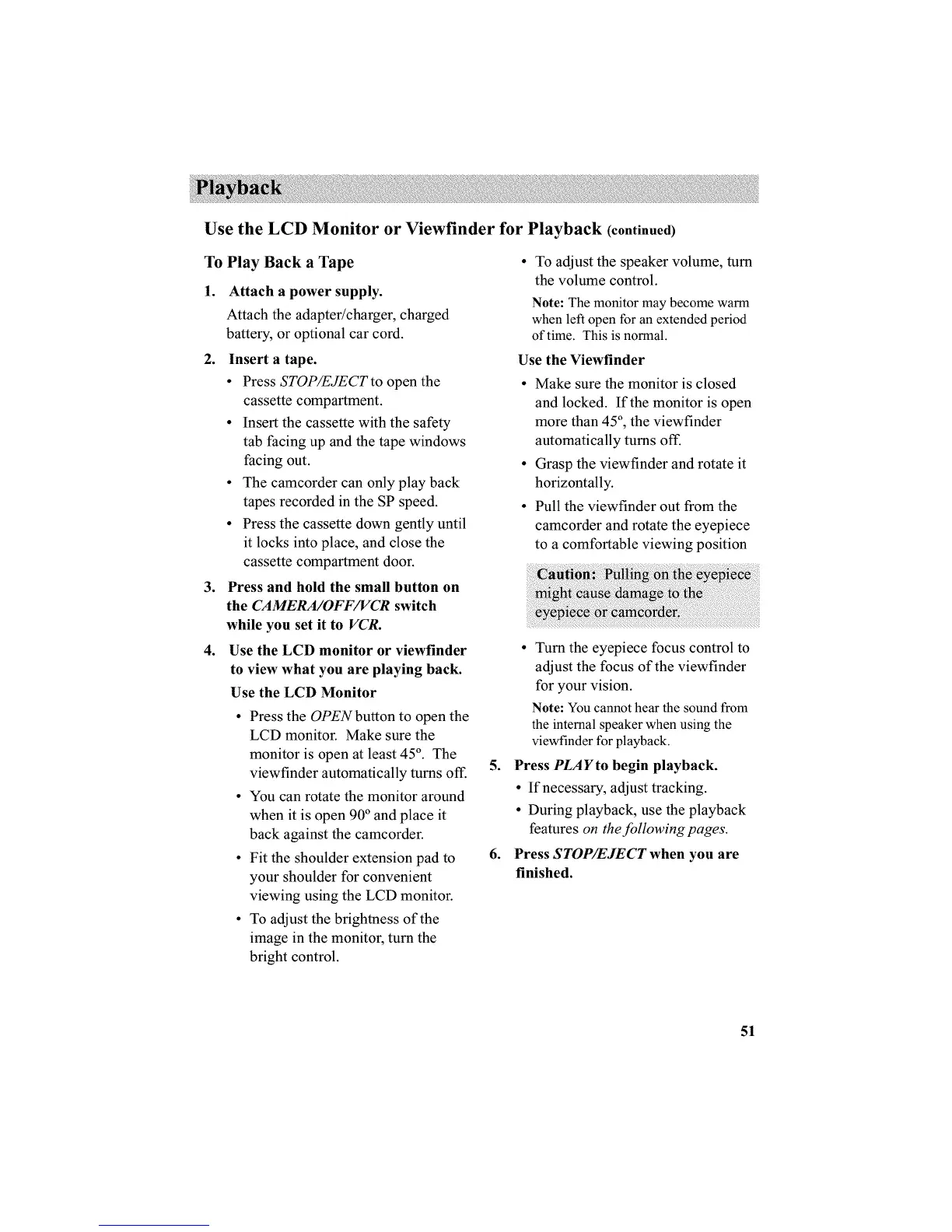

Use the LCD Monitor or Viewfinder for Playback (continued)
To Play Back a Tape
1. Attach a power supply.
Attach the adapter/charger, charged
battery, or optional car cord.
2.
Insert a tape.
• Press STOP/EJECTto open the
cassette compartment.
• Insert the cassette with the safety
tab facing up and the tape windows
facing out.
• The camcorder can only play back
tapes recorded in the SP speed.
• Press the cassette down gently until
it locks into place, and close the
cassette compartment door.
3. Press and hold the small button on
the CAMERA/OFF/VCR switch
while you set it to VCR.
4. Use the LCD monitor or viewfinder
to view what you are playing back.
Use the LCD Monitor
• Press the OPENbutton to open the
LCD monitor. Make sure the
monitor is open at least 45 °. The
viewfinder automatically turns off.
• You can rotate the monitor around
when it is open 90 ° and place it
back against the camcorder.
• Fit the shoulder extension pad to
your shoulder for convenient
viewing using the LCD monitor.
• To adjust the brightness of the
image in the monitor, turn the
bright control.
.
.
• To adjust the speaker volume, turn
the volume control.
Note: The monitor may become warm
when left open for an extended period
of time. This is normal.
Use the Viewfinder
• Make sure the monitor is closed
and locked. If the monitor is open
more than 45 °, the viewfinder
automatically turns off.
• Grasp the viewfinder and rotate it
horizontally.
• Pull the viewfinder out from the
camcorder and rotate the eyepiece
to a comfortable viewing position
• Turn the eyepiece focus control to
adjust the focus of the viewfinder
for your vision.
Note: Youcannothear the sound from
the internal speaker when using the
viewfinder forplayback.
Press PLAYto begin playback.
• If necessary, adjust tracking.
• During playback, use the playback
features on the following pages.
Press STOP/EJECT when you are
finished.
51
