RCA DRC8005N

Chapter 1: Connections and Setup

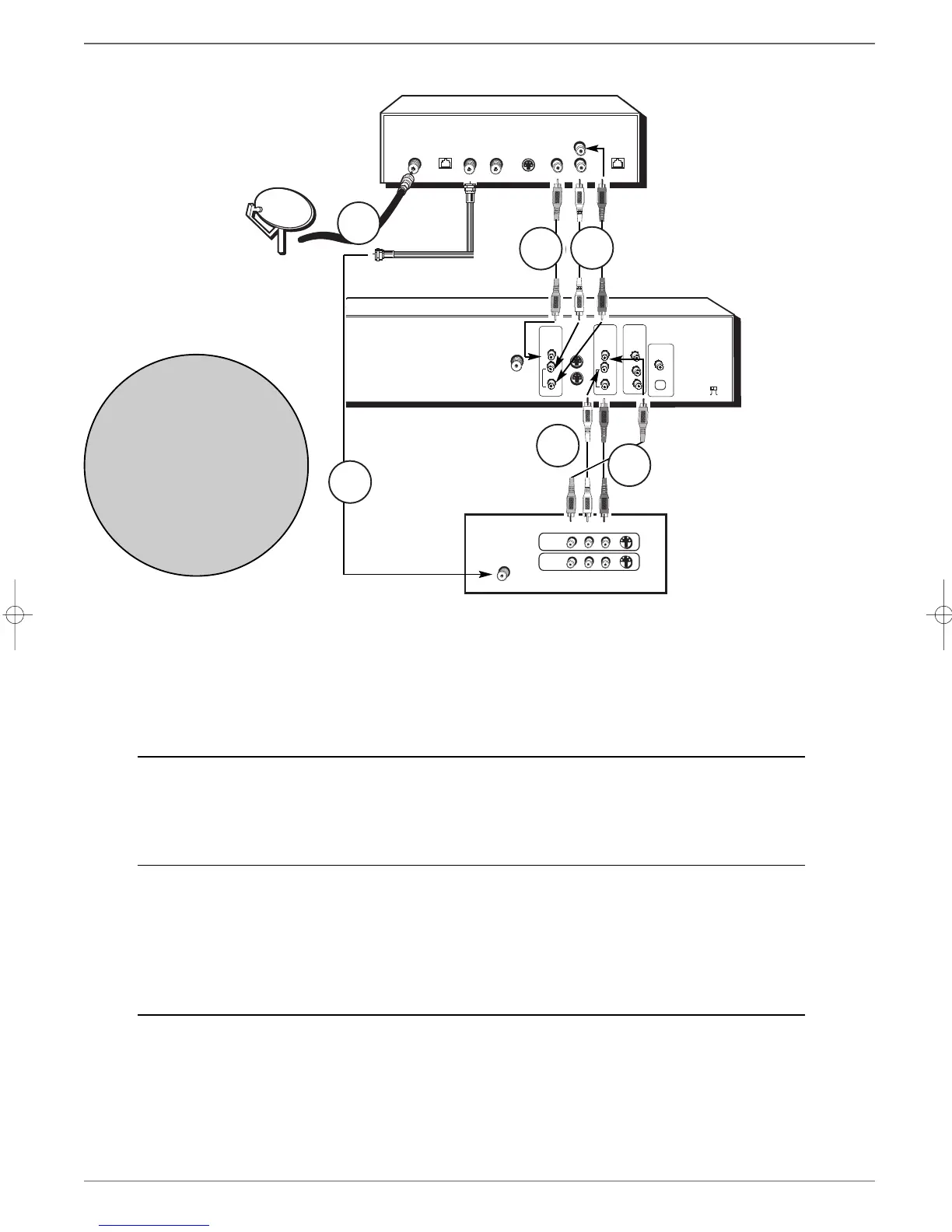

The back of your TV might look
different than the one pictured here.
To watch TV (satellite
programming) with the DVD
Recorder turned on.
To watch TV (satellite
programming) with the DVD
Recorder turned off.
To play a disc:
Tu ne the TV to its Input 1 channel or Vid 1 channel
Tune the DVD Recorder to the INPUT 1 channel (press the INPUT
button on the remote).
Tune the satellite receiver to the channel you want to watch.
Tu ne the TV to its CABLE/ANTENNA INPUT channel (usually channel 2,
3, or 4).
Tune the satellite receiver to the channel you want to watch.
Tu ne the TV to Input 1 channel or Vid 1 channel.
If you want
to add a VCR to
this connection,
consult the manual
that came with
your satellite
receiver.
SATELLITE
DISH
Satellite Receiver
AUDIO OUT
L
R
VIDEO
PHONE JACK
LOW SPEED
DATA OUT TO TV IN FROM ANTSATELLITE IN
S-VIDE O
OPTICAL
COAXIAL
Y
Pb
ON
OFF
VIDEO
INPUT
RF ANTENNA/CABLE
INPUT
L
R
PROG.
SCAN
AUDIO
VIDEO
OUTPUT
L
R
AUDIO
S-VIDEO OUT
S-VIDEO IN
Pr
COMPONENT
VIDEO OUTPUT
DIGITAL
AUDIO OUT
VIDEO L
R
INPUT1
INPUT2
S-VIDEO
CABLE/ANTENNA
TV
4
4
1
1
2b
2b
2a
2a
3a
3a
3b
3b
Details about the different kinds of cables used to connect your DVD Recorder are on page 4.
The back of your satellite
receiver might look different
than the one pictured here.
DVD Recorder
10 Graphics contained within this publication are for representation only.
