Chapter 1: Connections and Setup
L
R
AUDIO
OUTPUT
COMPONENT
VIDEO OUT
VIDEO
L
R
L
R
S-VIDEO IN
VIDEO IN
AUDIO IN
AV1 IN
Y
Pb
Pr
ANTENNA
/CABLE
IN
OUT
COAXIAL OUT
S-VIDEO OUT
HDMI OUT
AUDIO OUT
L
R
VIDE O
PHONE JACK
DIGITAL OUT
LOW SPEED
DA TA OUT TO TV IN FROM ANT SA TELLITE IN
S-VIDE O
VIDEO L
R
INPUT1
INPUT2
S-VIDEO
CABLE/ANTENNA
2a
2d
2c
3c
3a
1
2b
3b
The back of your
satellite receiver
might look
different than
the one pictured
here.
SATELLITE
DISH
ANTENNA
DVD recorder
TV
The back of your TV might look different
than the one pictured here.
Details about the different kinds of cables used to connect your DVD recorder are on page 5.

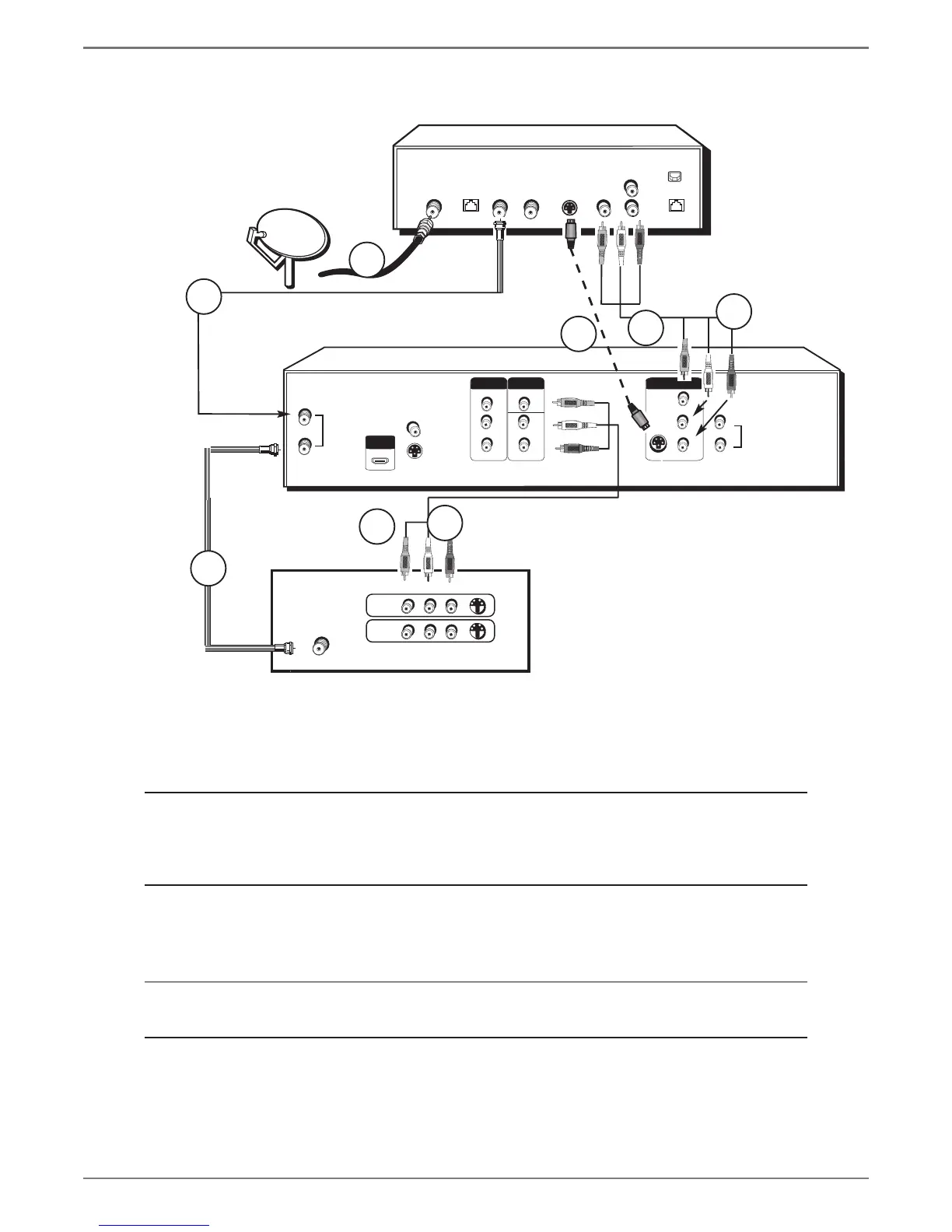

DVD recorder + TV+ Satellite Receiver
To watch TV (satellite
programming) with the DVD
Recorder turned on:
Tune the TV to its Input 1 channel or Vid 1 channel.
Tune the DVD recorder to the INPUT 1 channel (press the INPUT button on the remote).
Tune the satellite receiver to the channel you want to watch.
Tune the TV to its Input 1 channel or Vid 1 channel.
To watch TV (satellite
programming) with the
DVD recorder turned off:
Tune the TV to its CABLE/ANTENNA INPUT channel (usually channel 2, 3, or 4).
Tune the satellite receiver to the channel you want to watch.
To play a disc
Important
You can’t watch one satellite
program and record another
satellite program at the same time.
If you need help fi nding your TV’s various Video Input Channels, go to page 20.
To Next Page
