Graphics contained within this publication are for representation only.
10
Chapter 1: Connections and Setup
The back of your TV
and/or Cable Box might
look different than the
ones pictured here.
Cable Box
TV
If you connect your components as described, you must access different Video Input Channels on your TV to see programming. If you don’t know how to
access Video Input Channels on your TV, go to page 19 for help. A general explanation, based on the connection shown above, follows:
If you need help fi nding your TV’s various Video Input Channels, go to page 19.
* The remote control packed with your DVD recorder is capable of being programmed to operate many brands and models of TVs. For instructions, go to page 22. If
the remote operates your TV, press TV and INPUT to access the Video Input Channel.

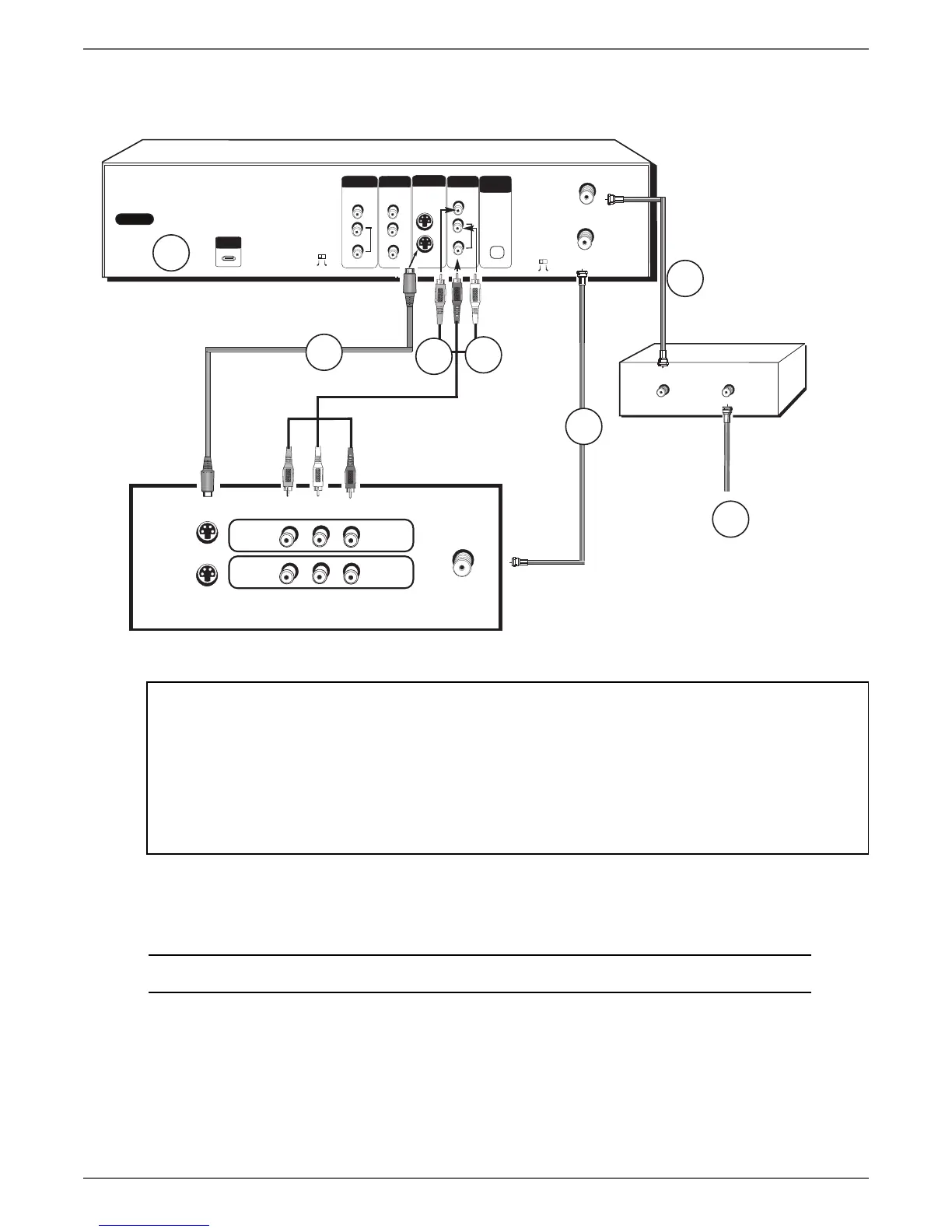

DVD recorder + TV+ Basic Cable Box
To play a disc: Tune the TV to its Input 1 channel or Vid 1 channel.
Notes about cable boxes:
The connection diagram shown above refl ects a basic setup. Since there are many different cable companies and types of cables boxes, your cable box may come
with a different recommended connection diagram. Normally, ANALOG cable boxes are used so that the cable company can scramble the signal for premium
channel programming (like movie channels). The cable box will descramble the signal if you are a premium channel subscriber. In some cases, your cable
company may not scramble the signal for basic channels and the signal could be passed through the cable box so that you could receive the signal with the DVD
recorder.
There are also DIGITAL cable boxes that are relatively new and are used with digital cable service. Even with digital cable service, analog signals are often
carried on the same cable.
Using the connection diagram above, you won’t be able to watch one program while recording another program. This may be possible with a more sophisticated
setup, using an optional signal splitter and A-B switch. We suggest you contact your cable company for help in recommending the best setup for your situation.
OPTICAL
ON
OFF
OUTPUT
L
R
PROG.
SCAN
AUDIO
OUT
IN
INPUT
CABLE/ANTENNA
CH4
CH3
AC IN
DIGITAL
AUDIO OUT
INPUT
S-VIDEO
VIDEO
OUTPUT
Y
Pb
Pr
COMPONENT VIDEO OUT
L
R
AUDIO
VIDEO
HDMI OUT
CABLE INCABLE OUT
VIDEO L
R
INPUT1
INPUT2
S-VIDEO
S-VIDEO
CABLE/ANTENNA
2d
4
1b
1a
2a
2b
2c
In from cable
DVD Recorder
