Back of VCR

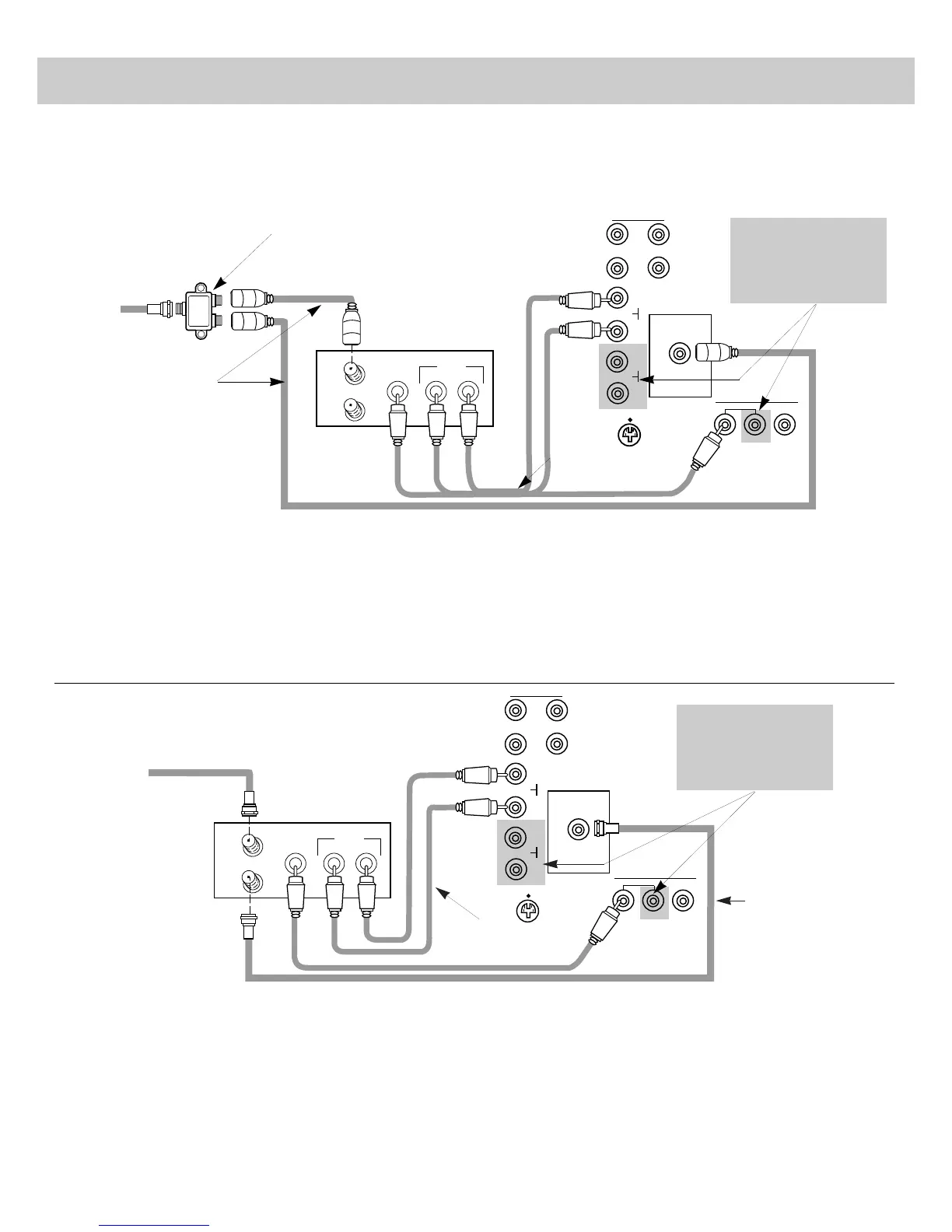

Shown here is the preferred method of connecting a VCR to
your TV. This method uses a 2-way signal splitter to run
separate signals to the VCR and TV. This way you can view
either TV programs or VCR tapes and not be concerned about
the position of the VCR’s TV/VCR switch.
Note: When connected this way, the audio/video connections from the
VCR to the TV are required in order for you to watch tapes being
played by the VCR.
Note: A second
audio/video device can
be connected to the
INPUT 2
jacks in a
similar manner.
Audio/Video Cable**
(such as RCA #AH077G)
2-Way Signal Splitter**
(such as RCA #AH047)
Coaxial Antenna Cables**
(such as RCA #AH065G)
Incoming
Cable
Back of TV
Coaxial Antenna Cable*
(such as RCA #AH037)
Incoming
Cable
Back of VCR
Note: A second
audio/video device can
be connected to the
INPUT 2
jacks in a
similar manner.
Back of TV
Audio
Audio/Video Cables*
Shown here is a simplified method of connecting a VCR to your
TV. The preferred method (using a 2-way signal splitter) is
shown above.
Note: The audio/video connections from the VCR to the TV are
optional; however, these additional connections usually produce a
better-quality picture during VCR playback. These connections are
required, however, for stereo playback from stereo VCRs.
Operation:
• If the VCR is connected to INPUT 1 jacks as shown, select
channel 91 on the TV to view whatever the VCR is playing.
• If you connect a second audio/video device to INPUT 2, select
channel 92 on the TV to view whatever the second device is
playing.
Note: You can program your TV to automatically select the proper
VCR input channel (91 or 92) when you press the VCR 1 or VCR2•LD
button. Details are on page 20.
Standard VHS VCR (Not S-VHS)
(These connections allow you to record TV programs and play back tapes.)
Preferred Method
for Areas with
Good Reception
Simplified Method
* Optional accessories are available from most RCA dealers and
electronics supply stores.
Operation:
•If the VCR is connected to INPUT 1 jacks as shown, select
channel 91 on the TV to view whatever the VCR is playing.
•If you connect a second audio/video device to INPUT 2, select
channel 92 on the TV to view whatever the second device is
playing.
Note: You can program your TV to automatically select the proper VCR
input channel (91 or 92) when you press the VCR 1 or VCR2•LD button.
Details are on page 20.
** These optional accessories
(one AH047–2-way splitter, two
AH065G–antenna cables, and one
AH077G–audio/video cable) are
available as a kit under #AVH500.
VCR Connections
28
