RCA IP115 and Elastix Server Setup Guide
4
5. Click on the Submit button to add an extension, see Figure 4-3. This will take you
to the Add SIP Extension page, see Figure 4-3.

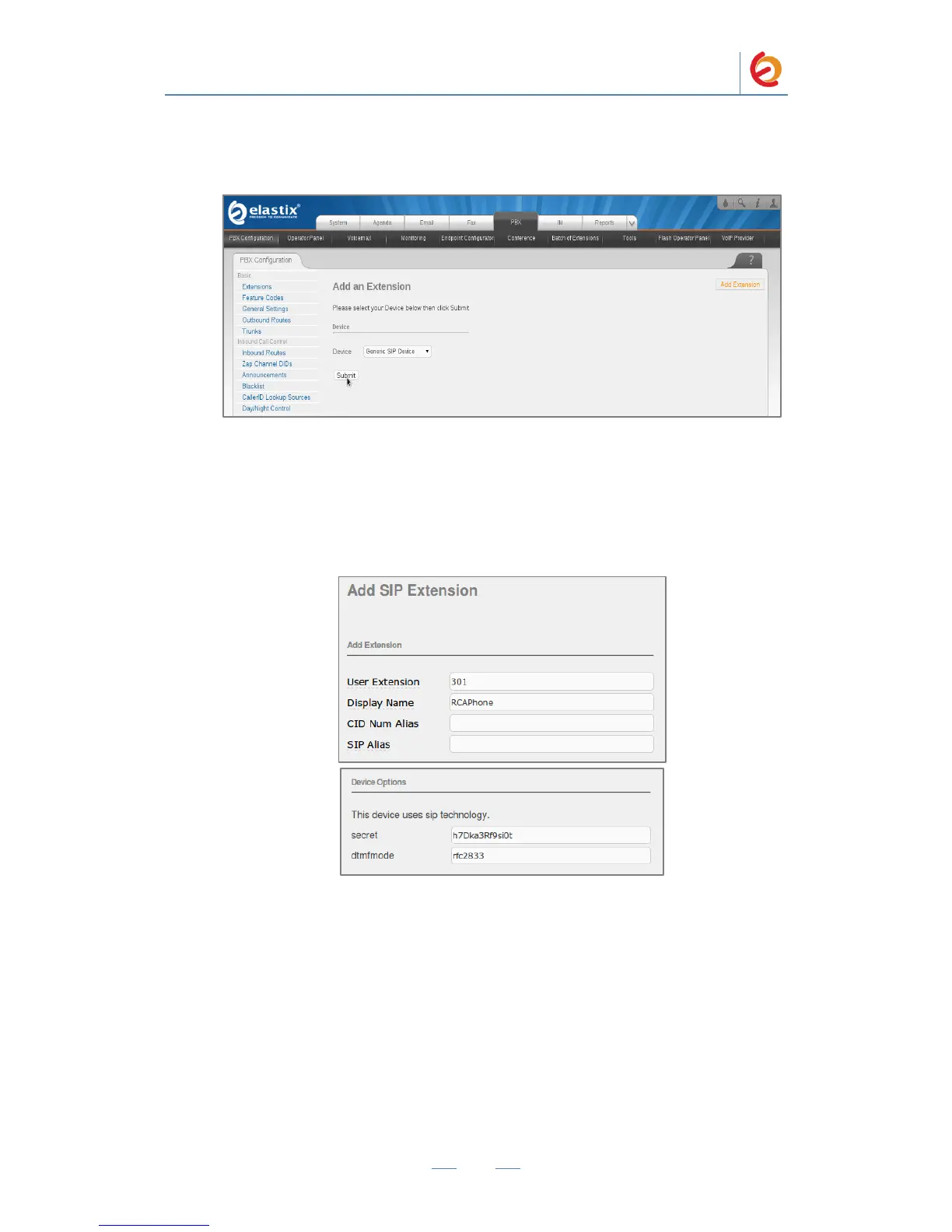

Figure 4-3. Add an Extension
6. On the Add SIP Extension page (Figure 4-4), fill in the following information:
• User Extension (301 in this example)
• Display Name (“RCAPhone” in this example)
• secret (“h7Dka3Rf9si0t” in this example)
Figure 4-4. Add SIP Extension
7. Click on “Submit” button at the end of the page, and you will see a similar page on
Figure 4-5 displaying the “Apply Configuration Changes Here” pink ribbon on top
of the screen. Click on there to apply changes.

RCA IP115 Specifications

General

Brand	RCA
Model	IP115
Category	IP Phone
Language	English
