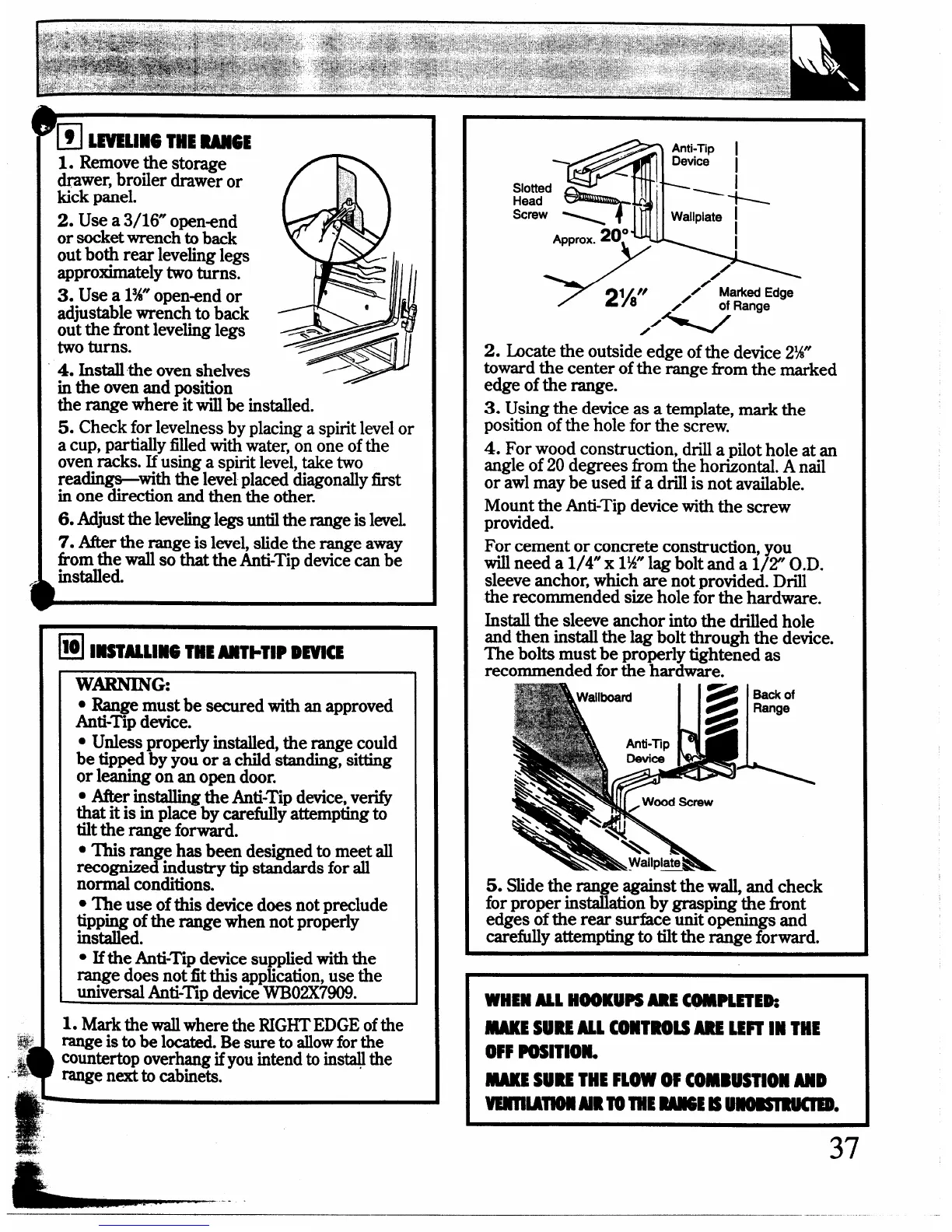

‘~ lml~ti~ THE RM6E
1. Remove the storage
drawer, broiler drawer or
kick panel.
2. Use a 3/16” open-end
or socket wrench to back
out both rear leveling legs
approximately two turns.
3. Use a 1%”open-end or
adjustable wrench to back
out the front leveling legs
two turns.
4. Install the oven shelves
in the oven and wsition
the range wher~ it will be installed.
5. Check for levelness by placing a spirit level or
a cup, partially filled with water, on one ofthe
oven racks. If using a spirit level, take two
readings-with the level placed diagonallyfirst
in one direction and then the other.
6. Adjust the levelinglegs until the range is leveL
7. After the range is level, slide the range away
froroti$ wall so that the Anti-Tipdevice can be
w~(A
QRange must be secured with an approved
Anti-llp device.
QUnless properly installed, the range could
be tipped by you or a child standing, sitting
or leaning on an open door.
●After ins “tallmg the Anti-Tipdevice, ver@
that it is in place by carefully attempting to
tilt the range forward.
● ‘II& range has been designed to meet all
recognized industry tip standards for d
normal conditions.
● me use ofthis device does not preclude
~sp~ipe;f the range when not properly
● If the Lti-’llp device supplied with the
range does not fit this application, use the
universal Anti-llp device WB02X7909.
1. MarkthewallwheretheRIGHTEDGEofthe
range is to be locati. Be sure to allowforthe
)
countertop overhmg if
you intend to inst@ the
range next to cabinets.
\
Slotted
Head
screw \
2. Locate the outside edge of the device 2?$”
toward the center of the range from the marked
edge of the range.
3. Using the device as a template, mark the
position of the hole for the screw.
4.
For wood construction, drill a pilot hole at an
angle of 20 degrees from the horizontal. A nail
or awl maybe used Ha drill is not available.
Mount the Anti-Tip device with the screw
provided.
For cement or concrete construction, you
willneed a 1/4” x 1% lag bolt and a 1/2” O.D.
sleeve anchor, which are not provided. Drill
the recommended size hole for the hardware.
Install the sleeve anchor into the drilled hole
and then install the lag bolt through the device.
The bolts must be properly tightened as
recommended for the hardware.
5. Slide the range against the wall, and check
for proper installation by grasping the tiont
edges of the rear surface unit openings and
carefully attempting to tilt the range forward.
WHEN ALL HOOKUPSARE Completely
MAKESURE ALL COHTROLSARE LEFT IN THE
OFFPIOWT80H.
MAKESURE THE FLOW OFCOMBUSTIONMD
VEHTllMIOHAIRTO THE RAH6ES ~~o
37
