Recording from VCR or TV Monitor
DC
FOCUS
DATE/TITLE
DISPLAY
PLAY
F.F.
EDIT
SEARCH
STOP
REW
F
N
AUDIO
OUT
VIDEO
OUT
Back of
Mono
VCR or
TV Monitor
White Audio Plug
Yellow Video Plug
Optional VAA009
Audio/Video
Input Cable
AUDIO
OUT
VIDEO
OUT
L
R
Yellow Video Plug
White Audio Plug
Optional Y-Adapter
(such as AH25)
Optional VAA009
Audio/Video
Input Cable
or
Back of
Stereo
VCR or
TV Monitor
1
1
2
2
3
3
Audio/Video In/Out
Connector (located
behind small cover)

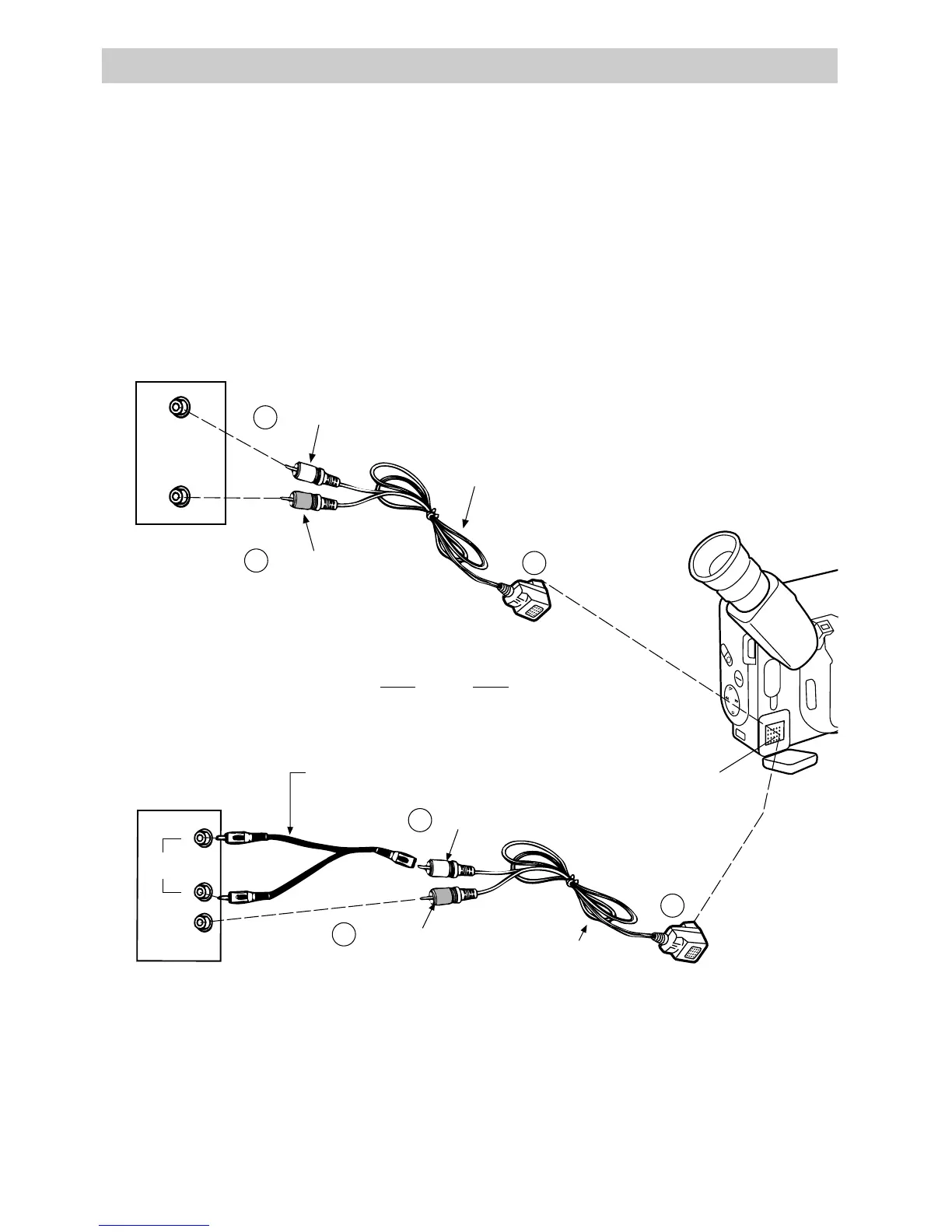

To connect your camcorder to a TV (or VCR) with AUDIO and VIDEO OUT jacks, you
will need an optional VAA009 audio/video input cable shown on page 57. If your TV
is already connected to a VCR, you can attach the camcorder to the VCR and watch
what the camcorder is recording on the TV.
