Playback on TV or VCR Using AUDIO/VIDEO IN Jacks
Back of
VCR or
TV Monitor
AUDIO
IN
VIDEO
IN
L
R
Back of
Stereo
VCR or
TV Monitor
Yellow Video Plug
White Audio Plug
Audio/Video
Cable
Y-Adapter
(such as AH25)
White Audio Plug
Audio/Video
Cable
–OR–
White
Audio Plug
Yellow
Video Plug
Yellow
Video Plug
White
Audio Plug
AUDIO
IN
VIDEO
IN
Yellow Video Plug
1
1
2
2
3
3
To White
AUDIO Jack
To Yellow
VIDEO
Jack
DC IN
6V
OPE
T
W
INST.
ZOOM
FOCUS
DATE/TITLE
DISPLAY
PLAY
F.F.
EDIT
SEARCH
STOP
REW
F
N

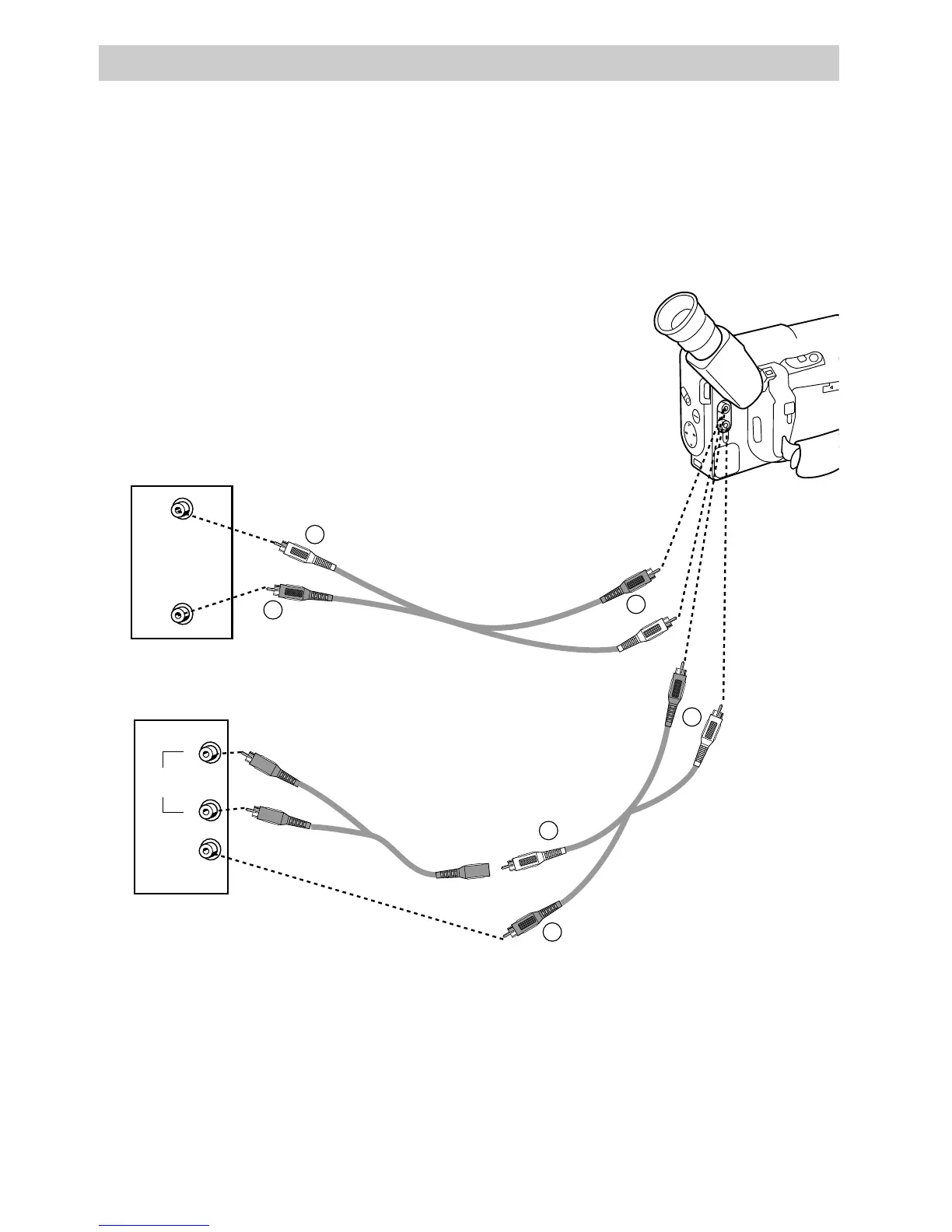

To connect your camcorder to a TV or VCR using AUDIO/VIDEO IN jacks, use the
audio/video cable that was packed with the camcorder. If your TV is already
connected to a VCR, you can attach the camcorder to the VCR and watch what the
camcorder is recording or playing on the TV.
