40
Playback
Playback on a TV without Audio/Video Inputs
To connect your camcorder to a TV without audio/video inputs, you will need an
optional CRF800 output adapter and an optional coaxial RF cable, such as VH82 or
VH90 shown on page 43. If your TV has AUDIO and VIDEO IN jacks (or is connected
to a VCR), refer to pages 38-39.

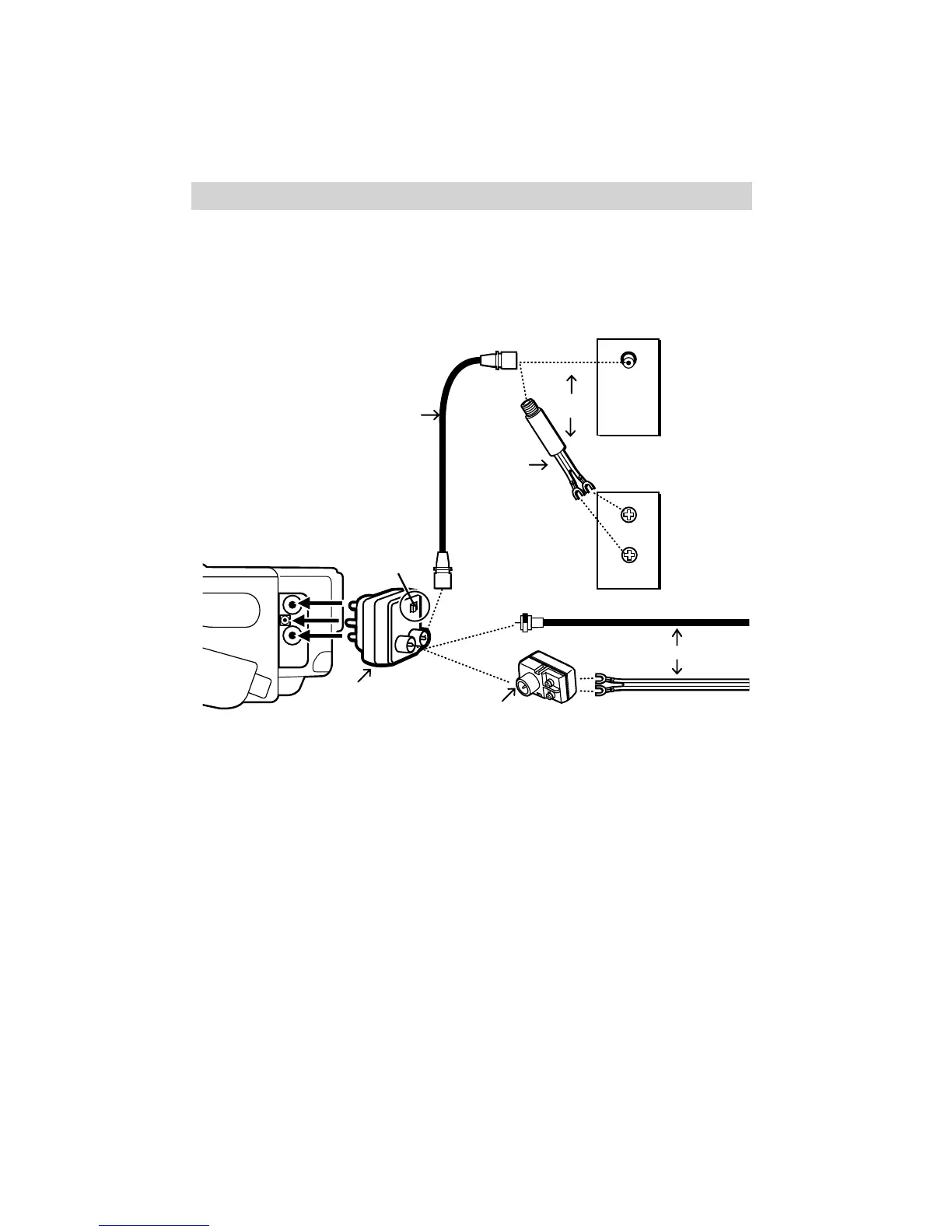

Installation
1. Disconnect the VHF antenna from
your TV. Connect the antenna to the
connector on the RF output adapter
as shown above if you are going to
leave the adapter connected to the TV.
Note: If your VHF antenna is the flat
twin-lead type attached by two screws,
you will also need an optional 300/75
ohm transformer.
2. Attach one end of the optional coaxial
RF cable to the other connector on
the adapter, and attach the other end to
the VHF input on your TV as shown.
Note: If your TV has 300 ohm screw
terminals, you will need a 75/300 ohm
transformer, such as VH54, shown on
page 43.
3. Attach the RF output adapter’s plug to
the A, RF OUT, and V jacks located
under the small cover on the side of
the camcorder.
OR
VHF Antenna
CHANNEL
4CH/3CH
Switch
VHF Antenna
OR
Back of TV
Back of TV
Optional
CRF800 RF
Output Adapter
Optional
Transformer
(Such as VH54)
Optional
RF Coaxial
Cable
(such as VH82
or VH90)
Optional 300-75 Ohm
Transformer
VHF
IN
FROM
ANT
VHF
To Next Page
