RCA RLC1906

19
1818

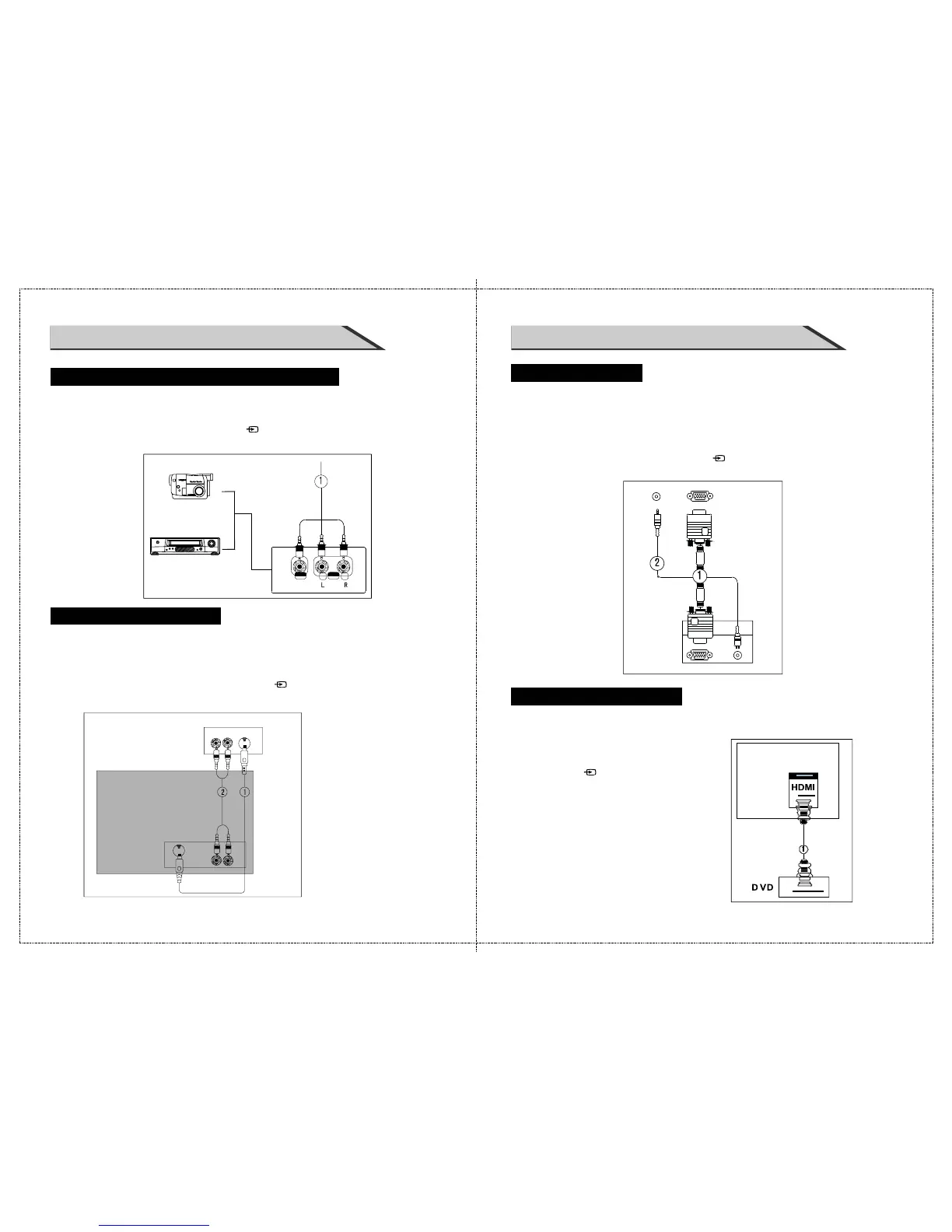

CONNECTIONS & SETUP
1. Connect the HDMI output of the DVD to
the HDMI Input jack on the set.
2. Select HDMI source with using
the SOURCE/ button on the remote control
3. Refer to the DVD player's manual for
operating instructions.
1. Connect the VGA output of the PC to the PC VGA Input jack on the set.
2. Connect the audio outputs of the PC to the PC Audio Input jack on the set.
3. Turn on the PC and the set.
4. Select PC source with using the SOURCE/ button on the remote control.
5. Refer to the PC manual for operating instructions.
PC
When connecting with a HDMI cable
HDMI CONNECTION
(HDMI cable not included)
PC CONNECTION
When connecting with a D-sub 15 pin cable(VGA)
CONNECTIONS & SETUP
1. Connect the AV jacks between TV and external equipment. Match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
2. Select AV source with using the SOURCE/ button on the remote control.
3. Operate the corresponding external equipment. Refer to external equipment
operating guide.
EXTERNAL EQUIPMENT CONNECTIONS
Video Game Set
PHILIPS
PHILIPS
DRIVE
DRIVE
TURBO
TURBO
Camcorder
AV
S-VIDEO CONNECTION
1. Connect the S-VIDEO output of the DVD to the S-VIDEO input on the set.
2. Connect the audio outputs of the DVD to the Audio Input (L/R) jacks on the set.
3. Turn on the DVD player, insert a DVD
4. Select S-VIDEO source with using the SOURCE/ button on the remote control.
5. Refer to the DVD player's manual for operating instructions
When connecting with a S-VIDEO cable (cable not included)
DVD
