RCA RLDED4215A - Front View Component Identification; Back View Connection Ports

CONTROL REFERENCE GUIDE

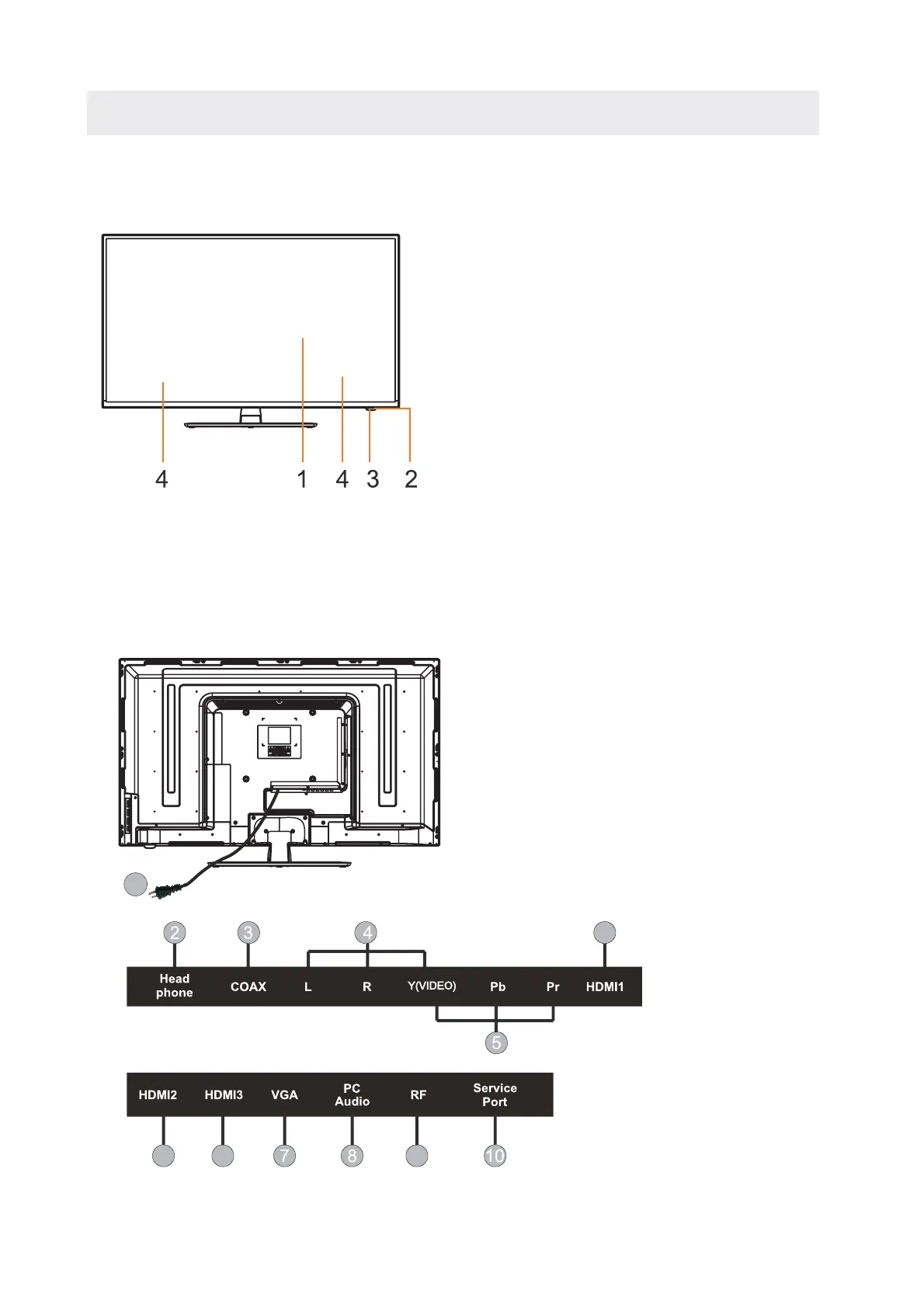

FRONT VIEW
5
BACK VIEW
1.Color Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in
blue:The unit is turned ON.
4. Speakers
6
66
9
1.Power Cor
2.Headphone Jack
3.Coax OUT Jack
4.AV IN Jack
5.COMPONENT IN Jack
6.HDMI IN Jacks
7.VGA IN Jack
8.PC ADUIO IN Jack
9.TV ANTENNA Terminal
10.Service Port
