WALL MOUNT INSTALLATION
INSTALLING REMOVING THE BASE STAND
WARNING
/
The LED Display is very fragile and must be protected at all times when removing the base
Stand
Be sure that no hard or sharp object or anything that could scratch or damage the LED display comes into
contact with it Do NOT exert pressure on the front of the unit at any time because the screen could crack
,
.
. .
MOUNTING ON THE WALL
NOTE
1.Remove the base stand before mounting the unit on the wall.
This unit is VESA-compliant, and is designed to be
wall-mounted with a VESA-compliant 16 x8
(400mm x 200mm) mounting kit designed for flat-panel TVs (not supplied). Mount this unit according to
the instructions included in the mounting kit.
Length of screw should not exceed10 mm.
11
16”
8”
M6
1 Disconnect all cables or cords connected to the unit
2 Lay the unit down on a flat surface with the back side facing down.

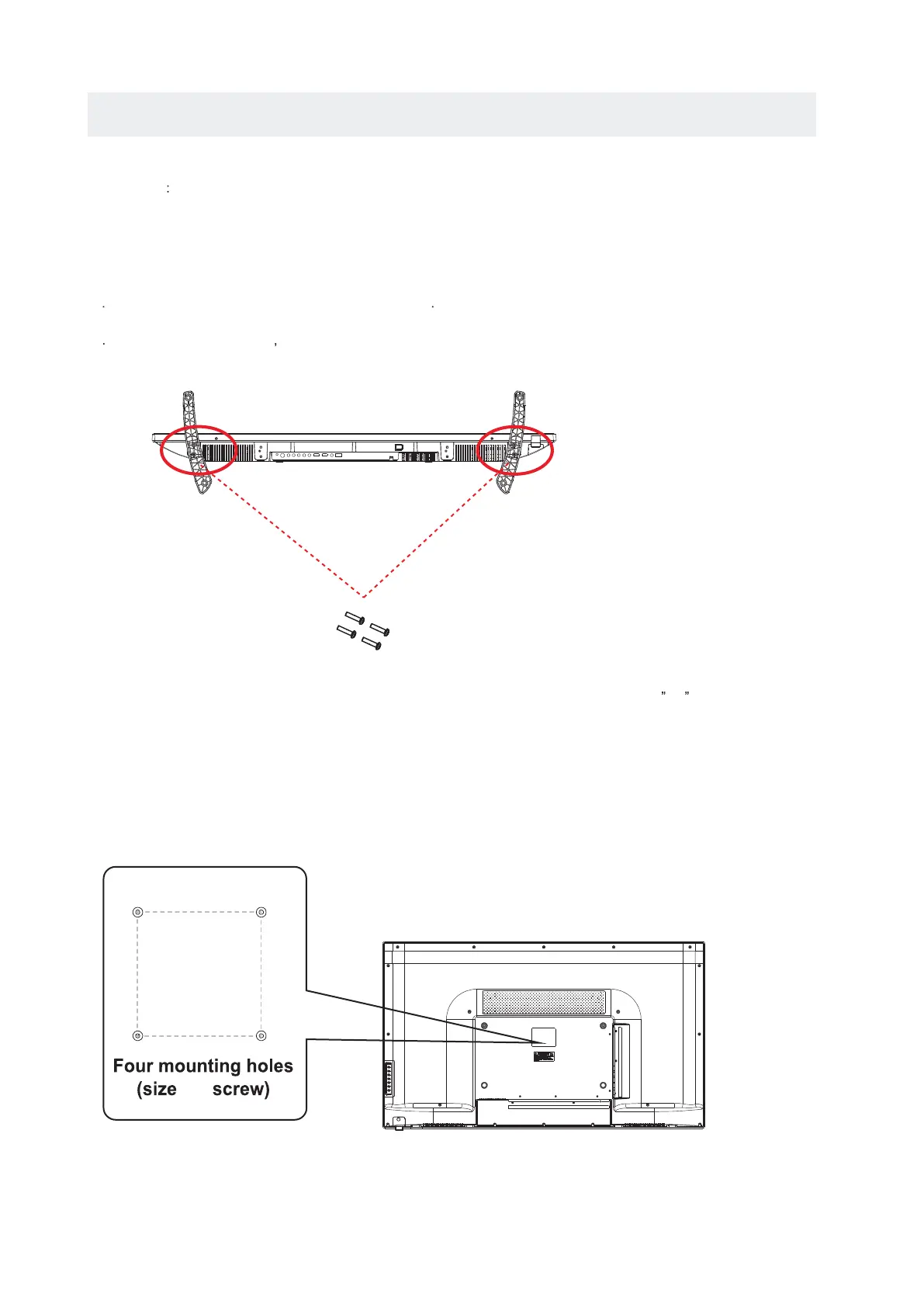

3 To remove the base stand loosen screws off the holes then pull downwards to release
the base stand
.
To Next Page
