External Connection
11
12

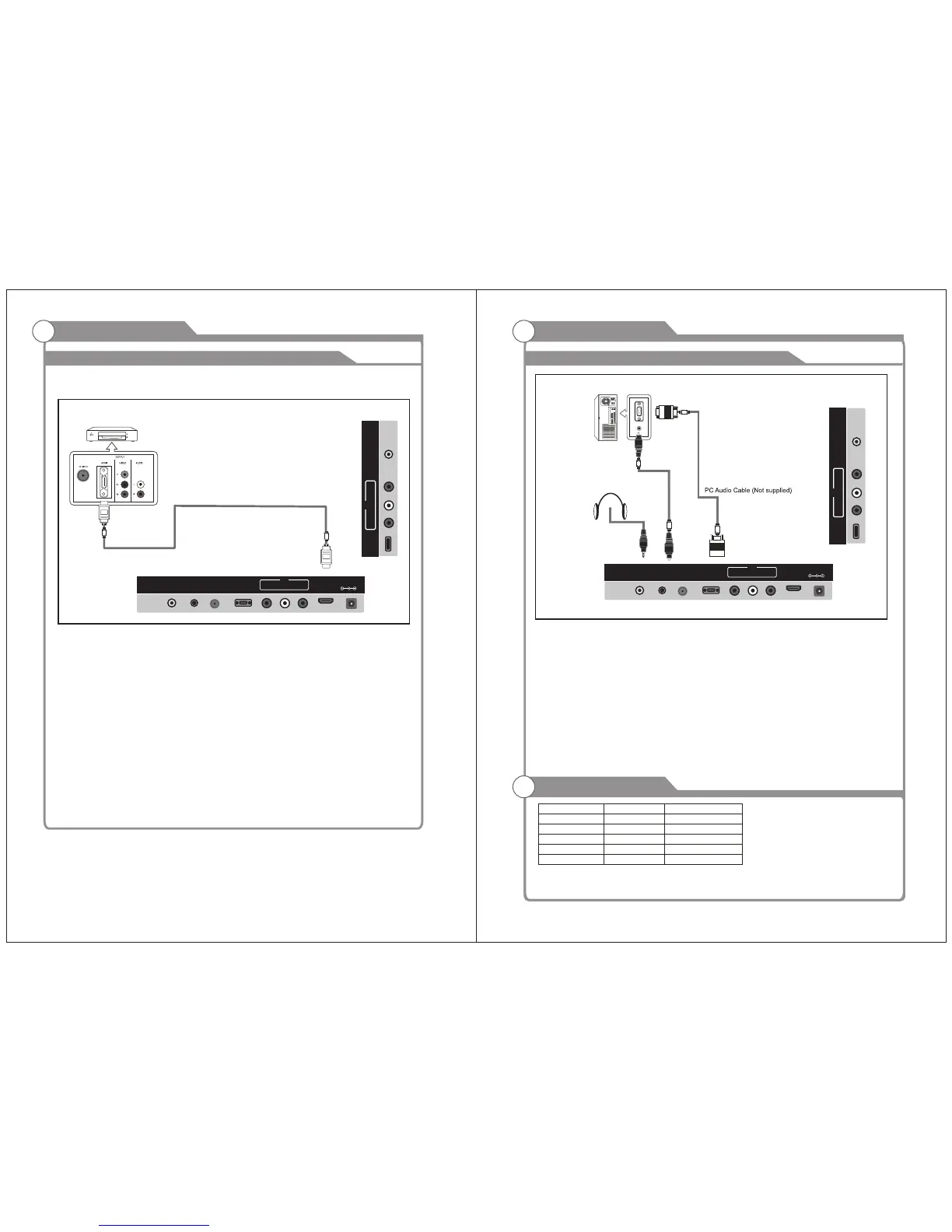

Connecting DVD Player/Set-Top Box via HDMI
This connection can only be made if there is a HDMI Output connector on the external
device.
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that enables
the transmission of digital audio and video signals using a single cable without
compression.
Multimedia interface is a more accurate name for it especially because it allows multiple
channels of digital audio (5.1 channels).
The difference between HDMI and DVI is that the HDMI device is smaller in size, has the
HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports
multi-channel digital audio.
Each DVD player/STB has a different back panel configuration.
We recommend the use of cables with a Ferrite Core.
1. Connect an HDMI Cable between the HDMI connector on the TV and the
HDMI connector on the DVD player/Set-Top Box.
HDMI Cable (Not supplied)
DVD Player/Set-Top Box
Connecting PC
Each PC has a different back panel configuration.
The HDMI jacks do not support PC connection.
We recommend the use of cables with a Ferrite Core.
1. Connect a D-Sub Cable between RGB/PC IN connector on the TV and the PC output
connector on your computer.
D-Sub Cable (Not supplied)
PC
External Connection
2.Plug PHONE out connector into PHONE out jack on the TV the TV speaker will
be muted.
3. Connect the PC audio input jacks on the TV
Supporting signals
Earphone Out
Component
VGA/PC
480p/60Hz
720p/60Hz
1080i/60Hz
HDMI
640x480/60Hz
800x600/60Hz
1024x768/60Hz
480p/60Hz
720p/60Hz
1080i/60Hz
1360x768/60Hz
1080p/60Hz
1080p/60Hz
1920x1080/60Hz
480i/60Hz480i/60Hz
POWER I NPUT
DC 12V
HDMI
EARPH ONE
OUT
PC
AUDIO
IN
VGA
RF
IN
VIDEO R
IN
L
Y
Pb
Pr
IN
COAXI AL
OUT
POWER I NPUT
DC 12V
HDMI
EARPH ONE
OUT
PC
AUDIO
IN
VGA
RF
IN
VIDEO R
IN
L
Y
Pb
Pr
IN
COAXI AL
OUT
SER VICE
POR T
SER VICE
POR T
