CD Micro System

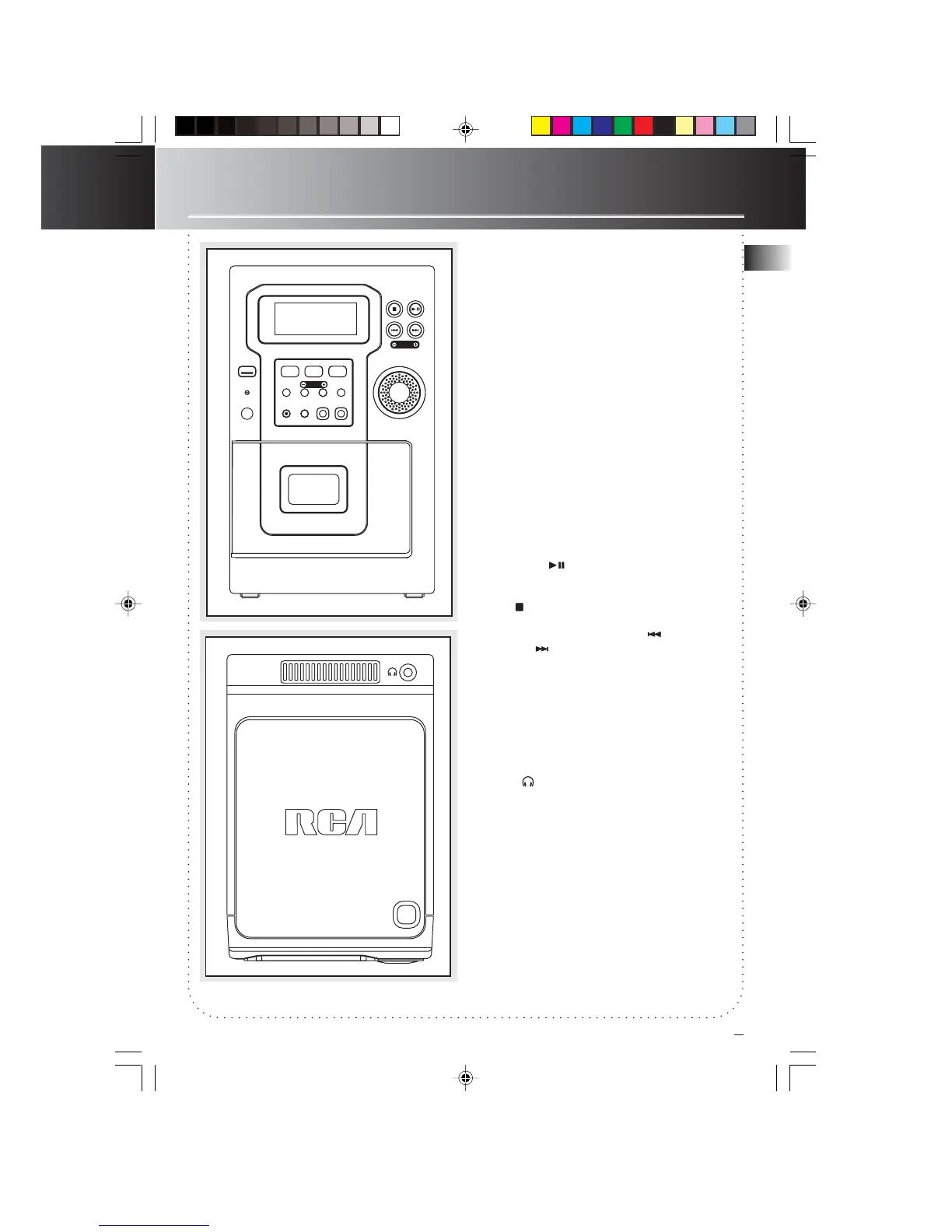

Front View
POWER/STAND-BY – Turns power on or off
(Standby mode).
CD - Selects CD mode.
TUNER / BAND / APP – Selects tuner mode;
selects radio band in tuner mode; begins auto
preset programming.
TAPE – Selects tape mode.
CLOCK / TIMER - Shows clock time and timer on/
off time; enters clock and timer setting mode;
enable or disable timer mode.
PRESET - / + - In tuner mode - selects preset
station.
PROG./SET/CLEAR – Enters program setting
mode; confirms your settings; clears settings.
REC•II - Starts/pauses recording from CD / Tuner
mode.
ST•MONO - In Tuner mode - Selects between
stereo and mono mode in FM tuner.
EQ - Selects among different sound effects (flat /
classic / rock / pop / jazz).
X-BASS - Enables / disables X-Bass
PLAY/PAUSE ( ) – In CD mode - Plays and
pauses CD playback.
In Tape mode - Plays and pauses tape playback.
STOP ( ) - In CD mode - Stops CD playback.
In Tape mode - Stops tape playback.
TUNING - / + (SKIP BACKWARD / SKIP
FORWARD ) – In CD mode - skips backward
or forward to the other tracks.
In Tape mode - Rewinds or fast forwards tape.
In tuner mode -searches down or up radio
frequency.
VOLUME CONTROL – adjusts the sound level.
Top View
OPEN - Press to open the CD compartment door.
PHONES - Jack for connecting headphones.
