Unpacking the system
You should have the following:
• one main unit (with 2 main speakers);
• one remote control;
• one AM loop antenna;
• one user’s guide;
• one safety leaflet;
• Owner registration Card.

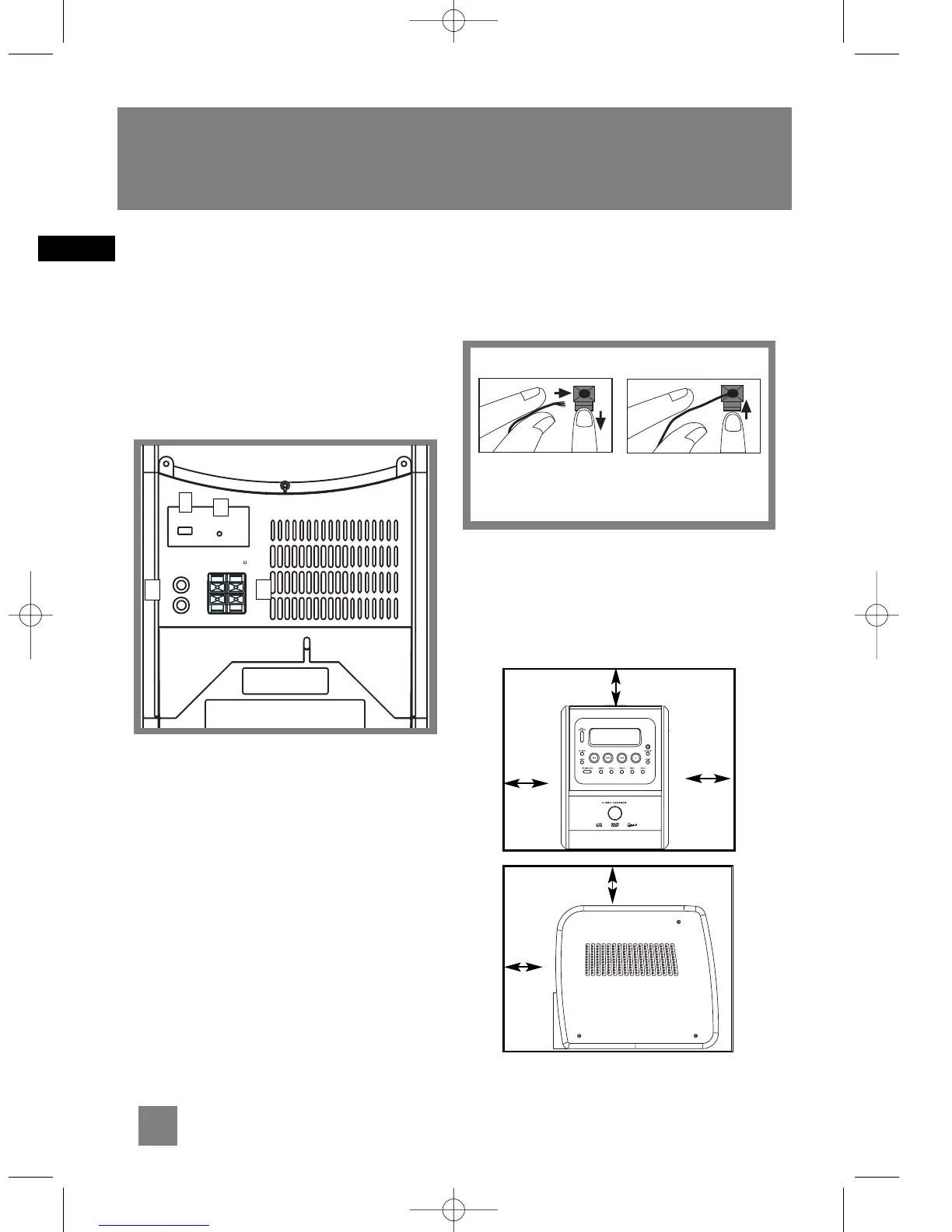

Back View
1. AM Loop antenna Jacks.
2. FM Pigtail Antenna.
3. AUX IN
4. Main Speaker Jacks.
Using the FM and AM Antennas
Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are
positioned properly. Uncoil the FM antenna at
the back of the unit, making sure it is fully
extended (you may even want to tape it to the
wall behind the unit if possible. The higher the
better.) You’ll also need to connect the AM
antenna loop to the back of the unit if you listen
to AM stations. Rotate the AM loop antenna for
better reception.
Connecting the Speakers
Each speaker has a black (negative) and a red
(positive) jack. When connecting the speakers,
match the red wires to the red jacks and the
black wires to the black jacks.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
2
EN
Getting Started
4 inches
4 inches
Front View
4 inches
4 inches
2
inches
Side View
R+
L
R
AUX IN
MAIN SPEAKERS 6
FM ANTENNA
L+
-
-
~
AM LOOP
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation
is completely removed from the
ends of the
speaker wires at all connection
points.
Speaker
Wire Connection
Push Speaker terminal tab
down to insert wire.
To Next Page
