EN
Getting Started
Unpacking the system:
You should have the following:
• one main unit (with 2 main speakers);
• one remote control;
• one FM antenna;
• one AM loop antenna;
• one user’s guide;
• one safety leaflet.
• Owner and registration Card

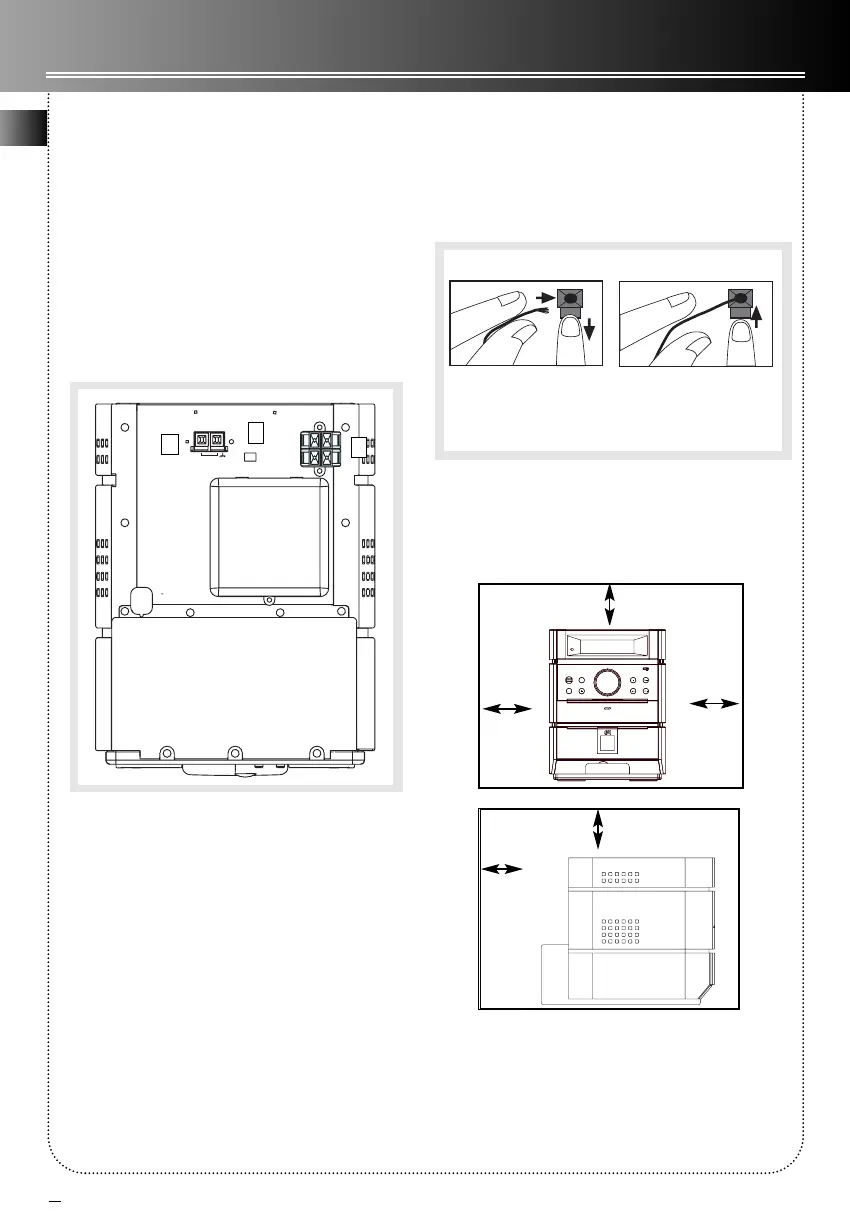

Back View
1. FM Antenna Jack
2. AM Loop antenna connector.
3. Main Speaker Jacks
Using the FM and AM Antennas
Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are posi-
tioned properly. Connect the FM antenna to the FM
connector on the back of the unit. Uncoil it, making
sure it is fully extended. (you may even want to tape
it to the wall behind the unit if possible. The higher
the better.)
You’ll also need to connect the AM antenna loop to
the back of the unit if you listen to AM stations.
Rotate the AM loop antenna for better reception.
Connecting the Speakers
Each speaker has a black (negative) and a red
(positive) jack. When connecting the speakers, match
the red wires to the red jacks and the black wires to
the black jacks.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
4 inches
4 inches
Front View
4 inches
4 inches
2 inches
Side View
MAIN SPEAKERS 6Ω
FM
ANTENNA
AM LOOP
RL
_
+
AC 120V/60Hz
GND
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation
is completely removed from the
ends of the Antenna and
speaker wires at all connection
points.
Antenna and Speaker
Wire Connection
Push terminal tab down to
insert wire.
2
1
2
3
ON/STANDBY SOURCE TUNE/PRESET
DEMOVOLUME
DISC SKIP DISC OPEN/CLOSE
CD-R / RW COMPATIBLE
5 DISC CHANGER
RS2300 EN 7/7/03 11:34 AM Page 6
