Getting Started
Unpacking the system
You should have the following:
• one main unit
(with three speakers)
• one remote control (with 2 AAA batteries)
• one AM loop antenna
• user manual

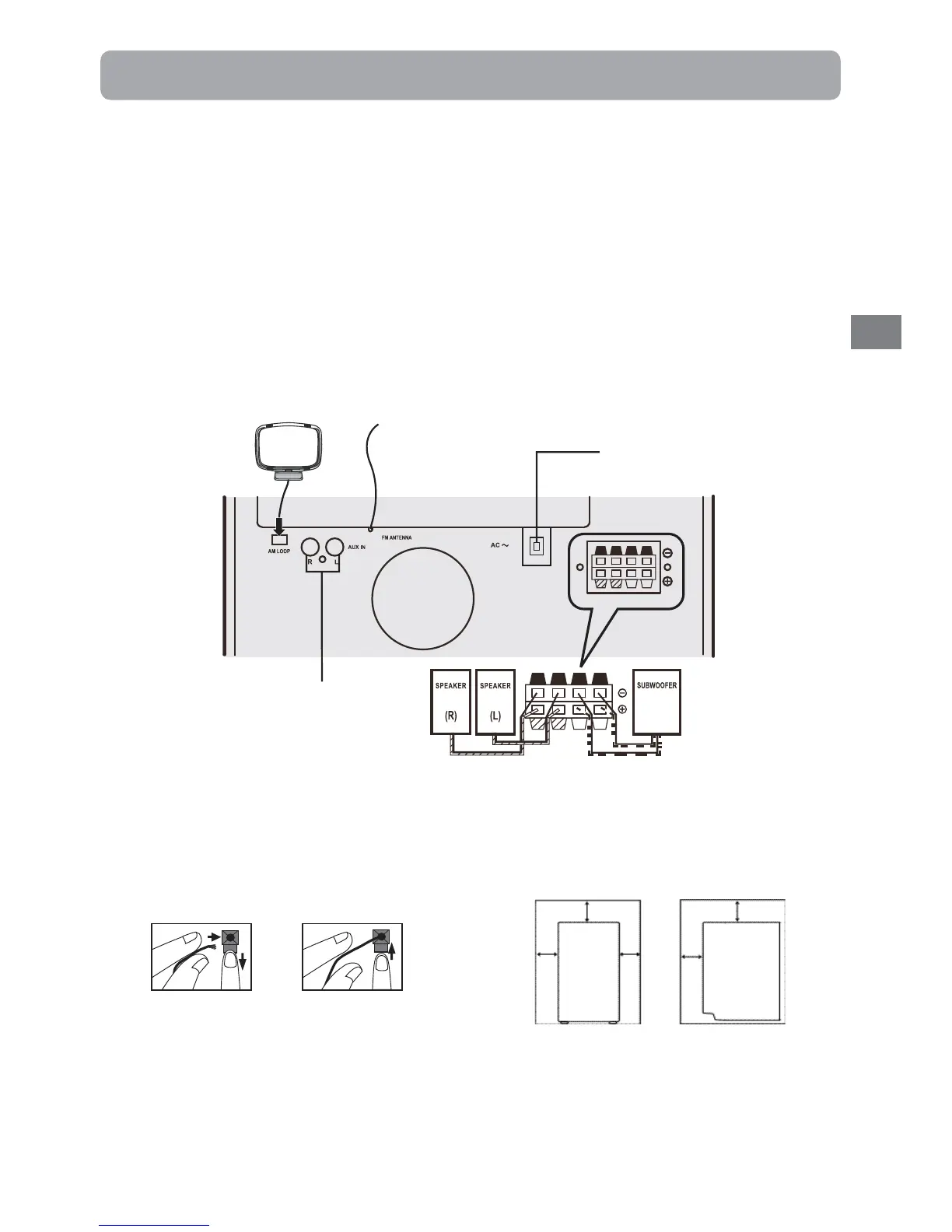

Connections
Back view
1. AM loop antenna jack
2. FM pigtail antenna
3. Speaker jacks
4. AUX IN jacks
Using FM and AM antennas
Before you use your audio system, you’ll want to make
sure both the FM and AM antennas are positioned
properly. Uncoil the FM antenna at the back of the
unit, making sure it is fully extended (you may even
want to tape it to the wall behind the unit if possible,
the higher the better).
You’ll also need to connect the AM antenna loop to
the back of the unit if you listen to AM stations. Rotate
the AM loop antenna for better reception.
Connecting speakers
Each main speaker has a black/red wire, and
subwoofer has two pairs of black/purple wires.
When connecting the speakers, match the red/
purple wires to the red/purple jacks and the black
wires to the black jacks on the main unit.
Installation
To ensure sufficient ventilation, keep the spacing
shown below free from other surfaces:
Front view
Side view
4”
4”4”
4”
2”
Release tab to lock
wire in the terminal.
NOTE: Make sure the insulation is completely
removed from the ends of the speaker wires at all
connection points.
Push speaker
terminal tab down
to insert wire.
21
AM loop antenna
(included)
FM antenna
To an AC outlet
Jacks for external
sound input
- 4 -
To Next Page
