- 7 -

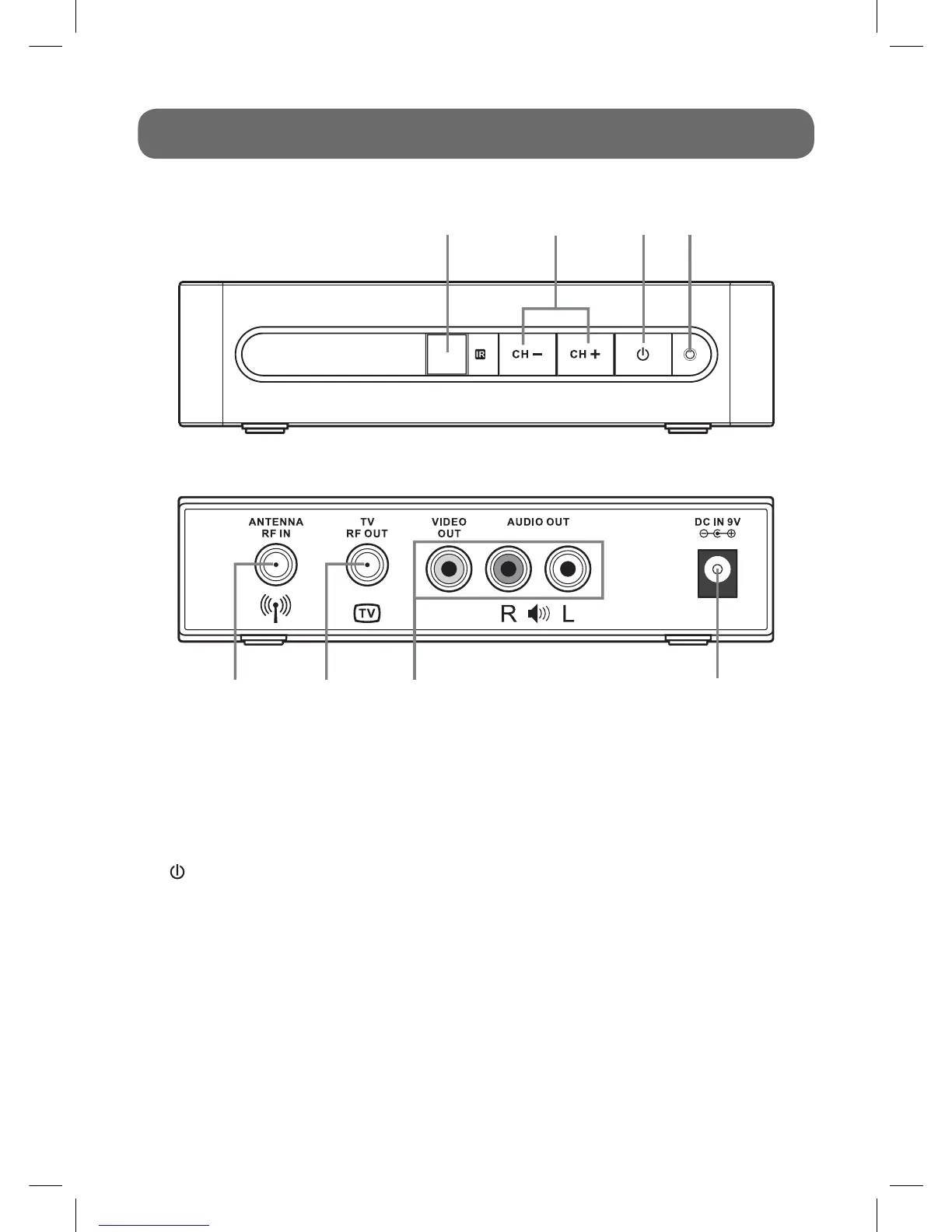

CONTROL REFERENCE GUIDE
1) Remote Sensor
Receives infrared signals from the remote
control.
2) CH-/CH+ Buttons
Press to select the channel upward or
downward.
3)
Button
Turns the power on or restores the unit to
the standby mode.
4) STANDBY/ON Indicator
Green: power on
Red: standby mode
5) ANTENNA RF IN Terminal
Connect the AIR antenna.
6) TV RF OUT Terminal
Use to connect your TV using a coaxial
cable. When this Converter Box is powered
on, analog RF signals output from the TV
RF OUT terminal.
When this Converter Box is in standby
mode, analog RF TV signals pass through
the box and output from the TV RF OUT
terminal.
7) AUDIO OUT / VIDEO OUT Jacks
Outputs audio/video signals to a connected
TV.
8) DC IN 9V Jack
Connect the supplied AC adapter.
Front View
Back View
123 4
567 8
