- 8 -
CONNECTIONS

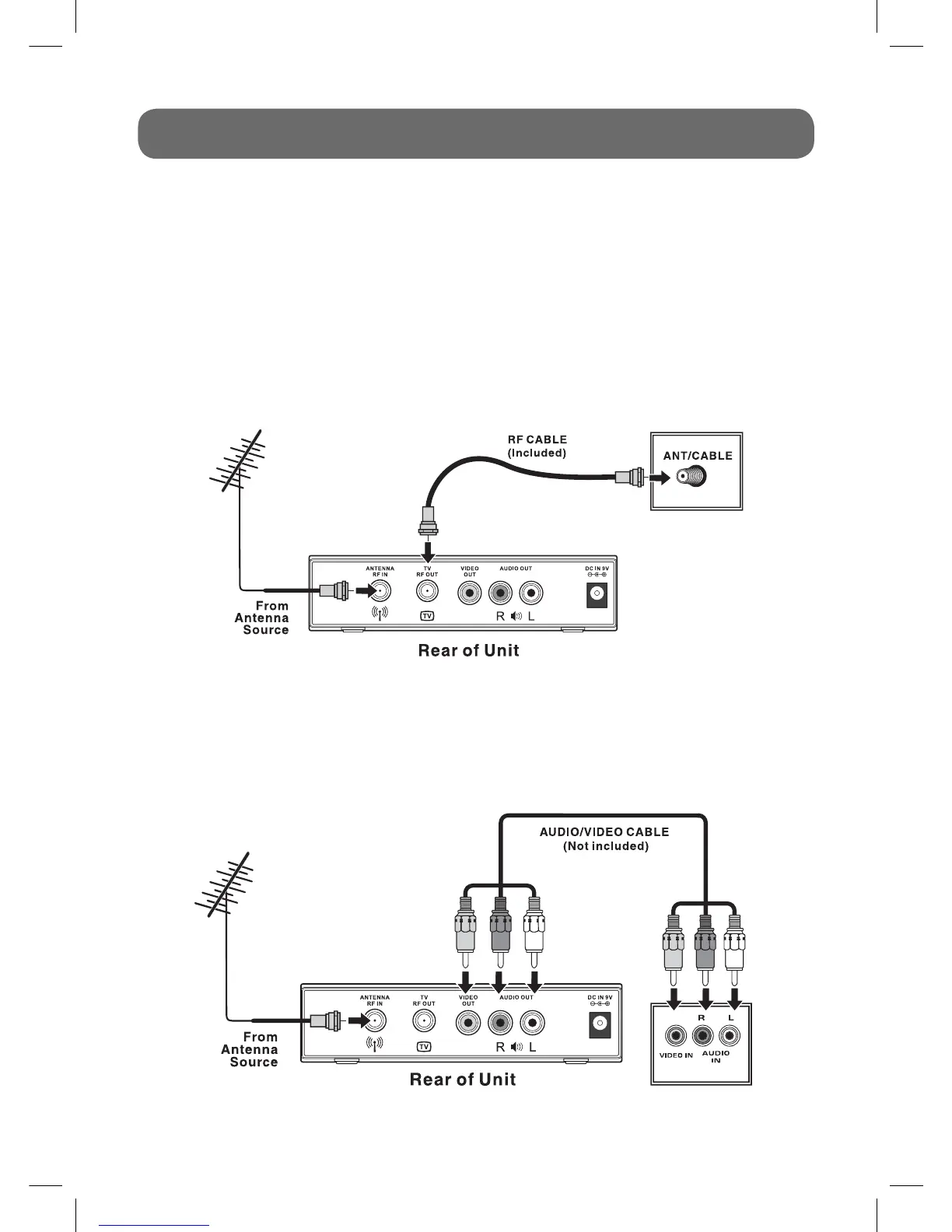

Connecting a TV (Using the RF Cable)
1. Connect an antenna cable to the RF IN terminal on the rear of the unit.
2. Use the RF cable (included) to connect the unit and TV/Monitor as shown.
3. Turn on your TV and switch TV’s channel selection to CH3.
When this converter box is powered on, digital signals from the ANTENNA RF IN jack are converted
to analog signals and output from the TV RF OUT jack or the VIDEO OUT jack.
When this converter box is in standby state, analog RF TV signals pass through the box and output
from the TV RF OUT jack.
Connecting a TV (Using the AV Cable)
1. Connect an antenna cable to the RF IN terminal on the rear of the unit.
2. Use the AV Cable (not included) to connect the unit and TV/Monitor as shown.
Rear of TV
Note:
• If a local TV Station happens to broadcast on CH3, we recommend you switch the unit’s CH3/4
Output to CH4 (and switch TV to CH4), following the instructions on Page 12.
YELLOW
RED
WHITE
YELLOW
RED
WHITE
Rear of TV
Note:
Make sure to turn on your TV and follow the instructions included with it to select the “AV IN”
function.
To Next Page
