Chapter 1 5
Graphics contained within this publication are for representation only.
Connections & Setup

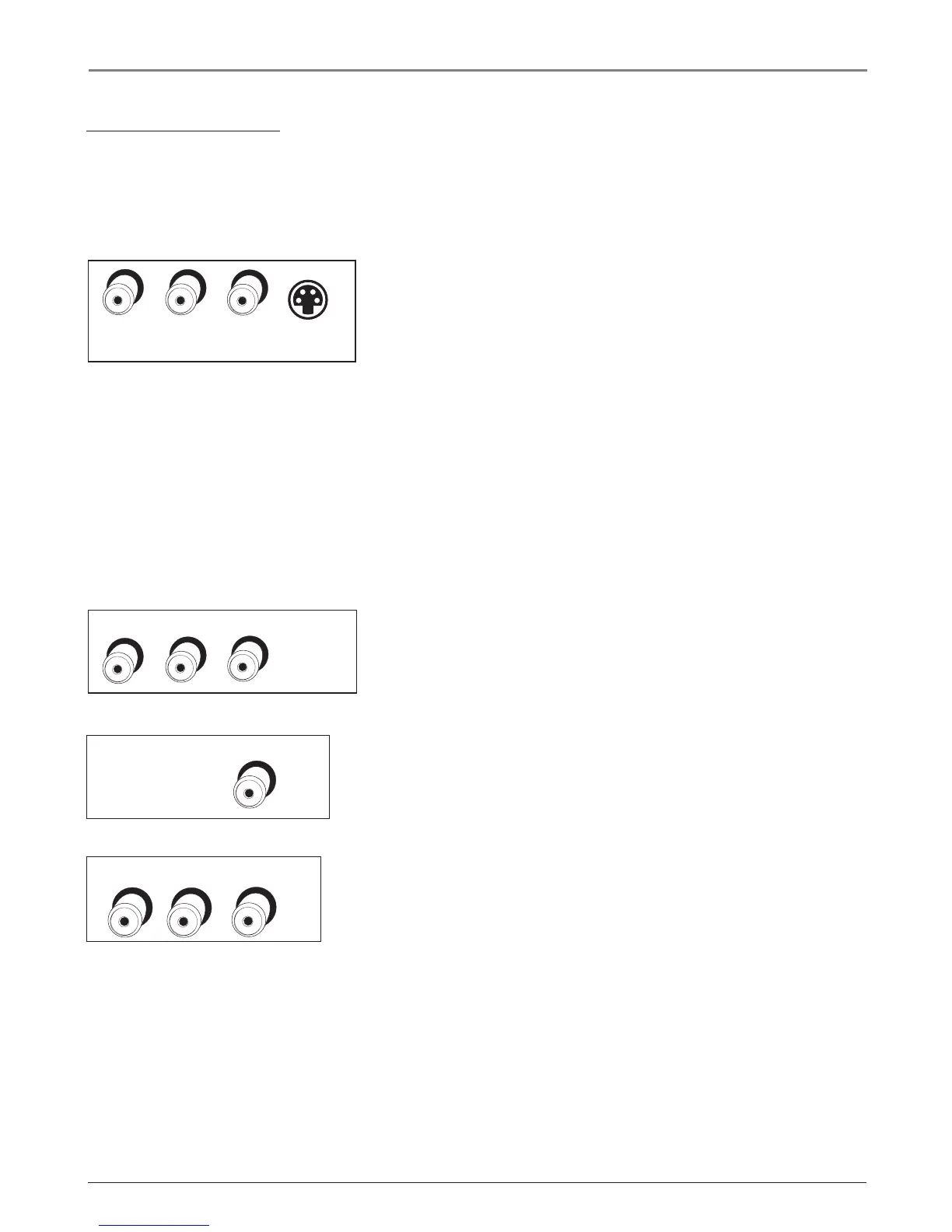

Explanation of Jacks
This section describes the jacks you can use to make connections. There are several
ways to connect components to your TV/DVD.
TV ANT Lets you connect a coaxial cable to receive the signal from the antenna,
cable, cable box, or if using the example on page 4, a VCR.
VIDEO 1
VIDEO, AUDIO R and L/MONO Lets you connect a
component such as a VCR.
• R (RIGHT) AUDIO Provides right audio connection. The
right audio connector is usually red.
• L/MONO AUDIO Provides left audio connection. The
left audio connector is usually white.
• VIDEO Provides composite video connection. The video
connector is usually yellow.
• S-VIDEO IN Provides better picture quality than the
video jacks because the color part of the signal is
separated from the black and white part of the picture.
When using S-VIDEO IN, make sure to connect left and
right audio cables to the L/MONO and R AUDIO Input
jacks.
VIDEO 2
VIDEO, AUDIO R and L/MONO Lets you connect a second
component, such as a VCR. Their description is the same as
VIDEO 1.
R
L/MONO
AUDIO
VIDEO
S-VIDEO IN
VIDEO 1
R
L
MONITOR
OUT
VIDEO
R
AUDIO
VIDEO
L/MONO
VIDEO 2
DIGITAL
AUDIO
OUT
DIGITAL AUDIO OUT Lets you connect a digital receiver for
improved sound quality. Go to page 41 for more information
on digital audio.
MONITOR OUT Lets you connect an amplifier or audio
receiver for improved sound quality or an external video
monitor. Connect to a component such as a DVD recorder for
recording capability.
