10 Chapter 1
Connections & Setup
VIDEOAUDIO COMPONENT VIDEO
R L Y Pr Pb
S-VIDEO IN
AUDIO IN
L
R
DIGITAL
IN
COAXIAL
DVD/VCR PLAYER
TV (BACK PANEL)
CABLE OR
OFF-AIR
SIGNAL
OR
DOLBY DIGITAL RECEIVER
DVD & VCR
DVD Only
COAXIAL
DIGITAL AUDIO OUT
OPTICAL
ANT IN
OR
OR
OR

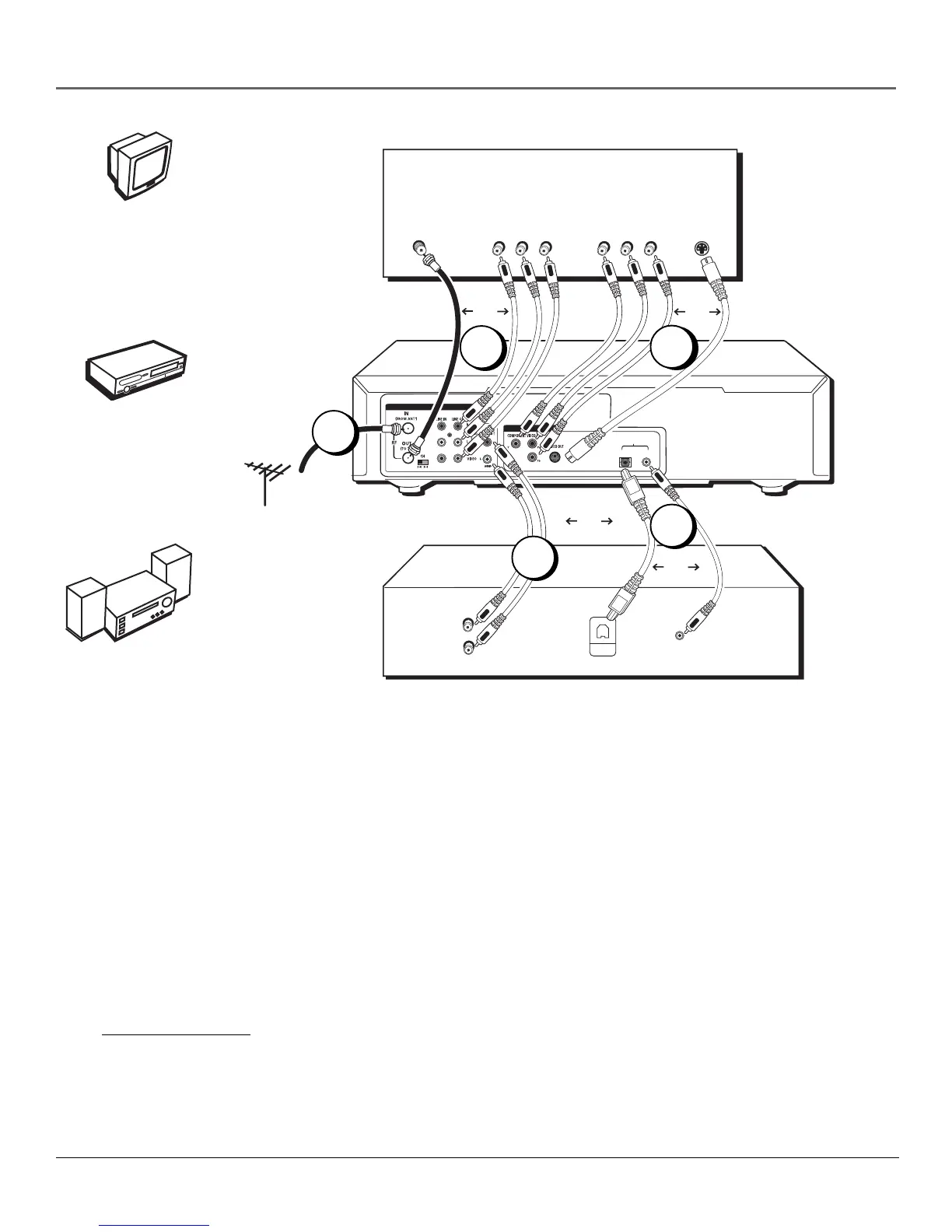

TV + DVD/VCR + Dolby Digital or
DTS Receiver
1. Connect the antenna/cable feed to the DVD/VCR.
Connect the RF coaxial cable/antenna feed (not included) to the IN (FROM
ANT) jack on your DVD/VCR.
2. Connect the DVD/VCR to the TV
You can connect the DVD/VCR player to the TV using either RF coaxial
cable, or for better picture and stereo-quality sound you can use A/V
cables. You do not need to use both connections.
Using RF coaxial cable:
Connect one end of an RF coaxial cable (not included) to the DVD/VCR
OUT (TO TV) jack, and the other end to the TV’s antenna input jack.
Note: If you only use a coaxial cable (and no audio/video cables), you must
move the CH 3/4 switch on the back of the DVD/VCR to the channel that does
not receive a broadcast station in your area. This will be the channel that the
TV must be tuned to in order to see the DVD/VCR’s picture (viewing channel).
TV
3
1
2
DVD/VCR
Dolby Digital Receiver
Note: Your back panels may not look exactly like
the models shown here.
4a
4b
Need Some Help?
If you prefer, we can
provide you with the
name of an Authorized
Service Representative
who will visit your home
for a fee to install your
electronic entertainment
system and to instruct
you in its operation. For
details about this service,
call 1-888-206-3359.
