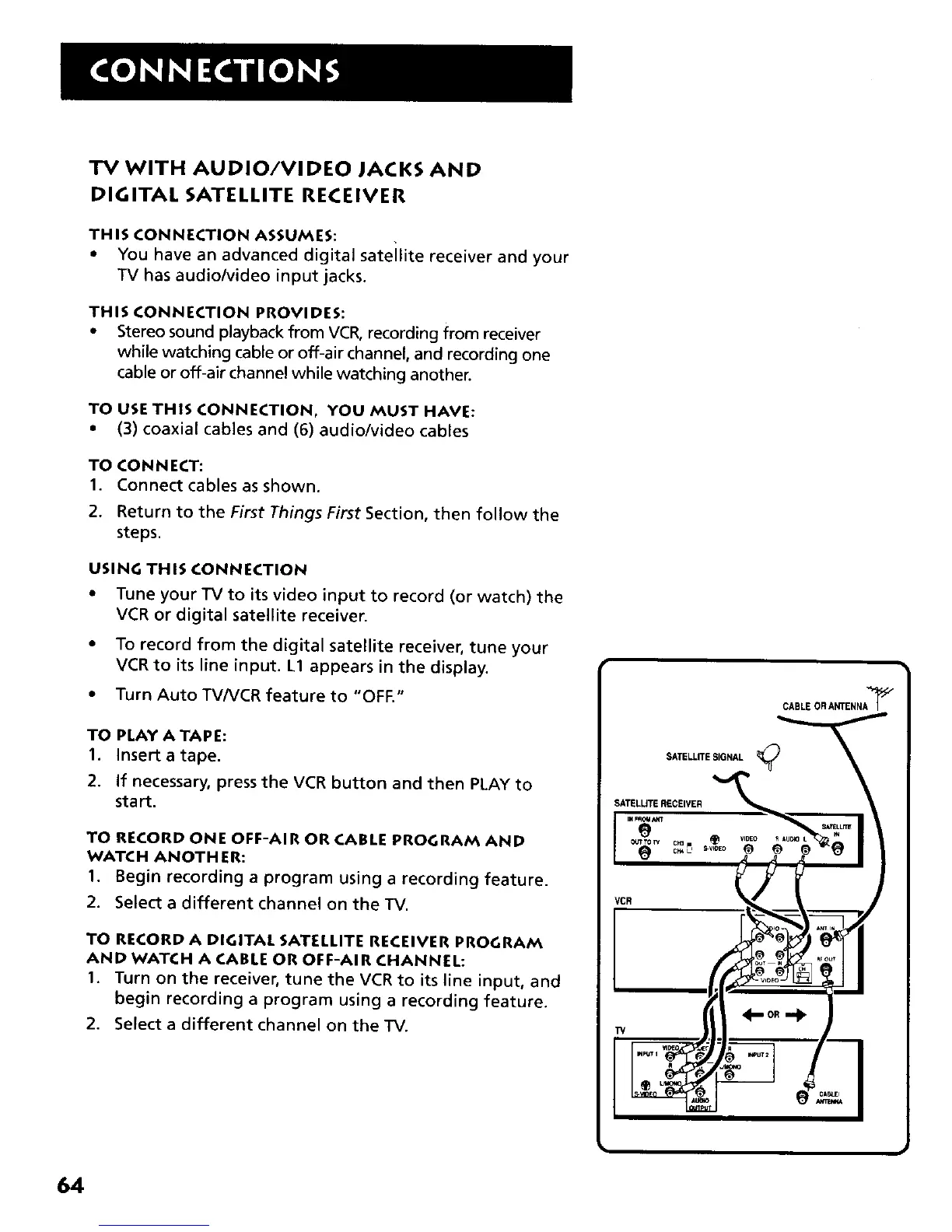

TV WITH AUDIO/VIDEO JACKS AND
DIGITAL SATELLITE RECEIVER
THIS CONNECTION ASSUMES:
• You have an advanced digital satellite receiver and your
TV has audio/video input jacks.
THIS CONNECTION PROVIDES:
• Stereo sound playback from VCR, recording from receiver
while watching cable or off-air channel, and recording one
cable or off-air channel while watching another.
TO USE THIS CONNECTION, YOU MUST HAVE:
• (3) coaxial cables and (6) audio/video cables
TO CO N N ECT:
1. Connect cables as shown.
2. Return to the First Things First Section, then follow the
steps.
USING THIS CONNECTION
• Tune your TV to its video input to record (or watch) the
VCR or digital satellite receiver.
• To record from the digital satellite receiver, tune your
VCR to its line input. L1 appears in the display.
• Turn Auto TVNCR feature to "OFF."
TO PLAY A TAPE:
1. Insert a tape.
2. If necessary, press the VCR button and then PLAY to
sta rt.
TO RECORD ONE OFF-AIR OR CABLE PROGRAM AND
WATCH ANOTH ER:
1. Begin recording a program using a recording feature.
2. Select a different channel on the TV.
TO RECORD A DIGITAL SATELLITE RECEIVER PROGRAM
AND WATCH A CABLE OR OFF-AIR CHANNEL:
1. Turn on the receiver, tune the VCR to its line input, and
begin recording a program using a recording feature.
2. Select a different channel on the TV.
SATELLITE SIGNAL
SATELLITE RECEIVER
VCR
TV
CABLE OR ANTEN NA"'_
64
