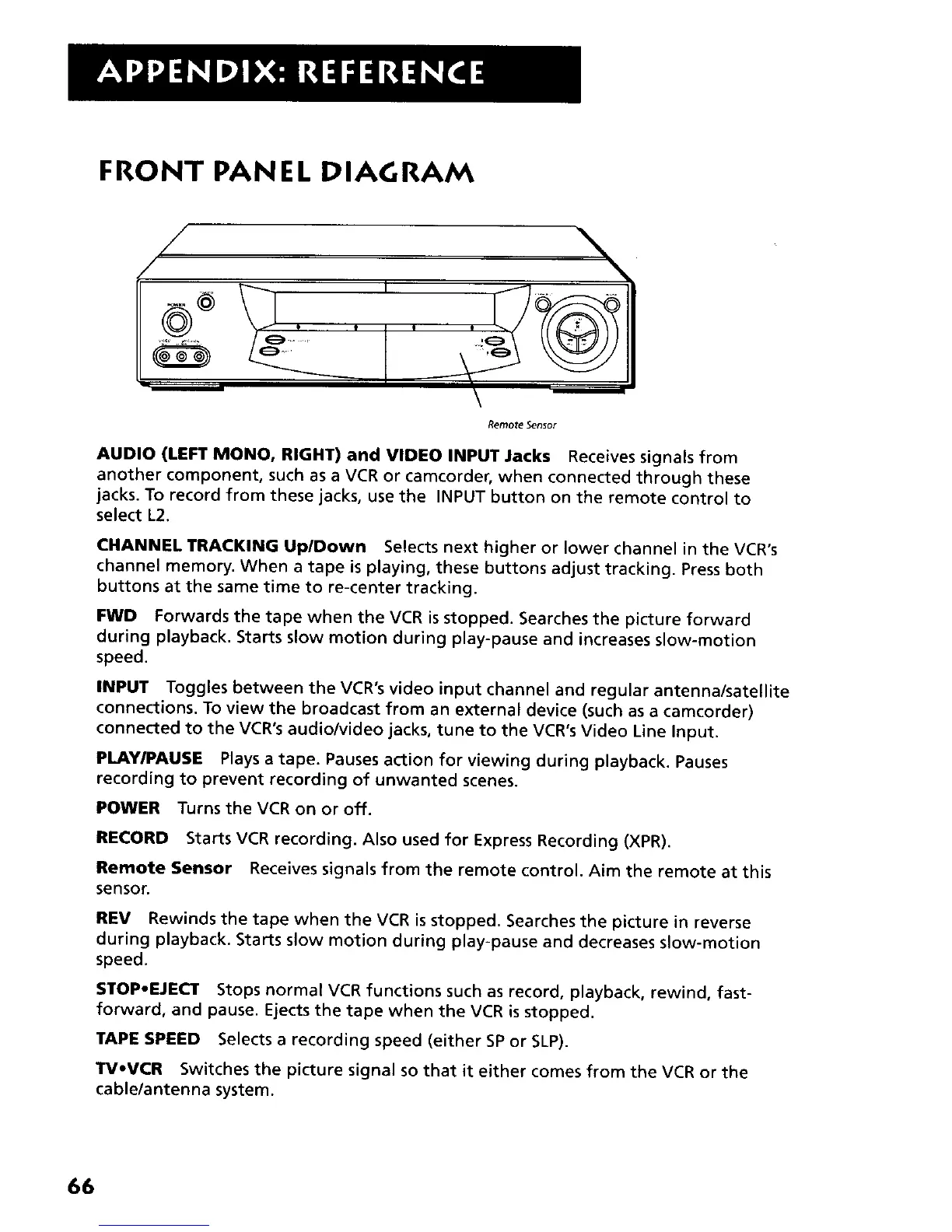

FRONT PANEL DIAGRAM
/ \
/ •
Remote SeRso[
AUDIO (LEFT MONO, RIGHT) and VIDEO INPUT Jacks Receives signals from
another component, such as a VCR or camcorder, when connected through these
jacks. To record from these jacks, use the INPUT button on the remote control to
select L2.
CHANNEL TRACKING UplDown Selects next higher or lower channel in the VCR's
channel memory. When a tape is playing, these buttons adjust tracking. Press both
buttons at the same time to re-center tracking.
FWD Forwards the tape when the VCR is stopped. Searches the picture forward
during playback. Starts slow motion during play-pause and increases slow-motion
speed.
INPUT Toggles between the VCR's video input channel and regular antenna/satellite
connections. To view the broadcast from an external device (such as a camcorder)
connected to the VCR's audio/video jacks, tune to the VCR's Video Line Input.
PLAY/PAUSE Plays a tape. Pauses action for viewing during playback. Pauses
recording to prevent recording of unwanted scenes.
POWER Turns the VCR on or off.
RECORD Starts VCR recording. Also used for Express Recording (XPR).
Remote Sensor Receives signals from the remote control. Aim the remote at this
sensor.
REV Rewinds the tape when the VCR is stopped. Searches the picture in reverse
during playback. Starts slow motion during play-pause and decreases slow-motion
speed.
STOP-EJECT Stops normal VCR functions such as record, playback, rewind, fast-
forward, and pause. Ejects the tape when the VCR is stopped.
TAPE SPEED Selects a recording speed (either SP or SLP).
TV.VCR Switches the picture signal so that it either comes from the VCR or the
cable/antenna system.
