RCbro SPARROW 2 - Page 4

RCbro
®
SPARROW 2 User-Manual
LefeiRC www.lefeirc.com/
Servo
AIL
AIL
ELE
ELE
THR
THR
RUD
RUD
AUX
RC CH6 or CH7 output
Receiver
CH1-4
PWM-IN,CH1-4:AIL,ELE,THR,RUD
RC
PPM,SBUS,IBUS,CRSF or PWM Mode Channel
TX
CRSF-TELE
GPS

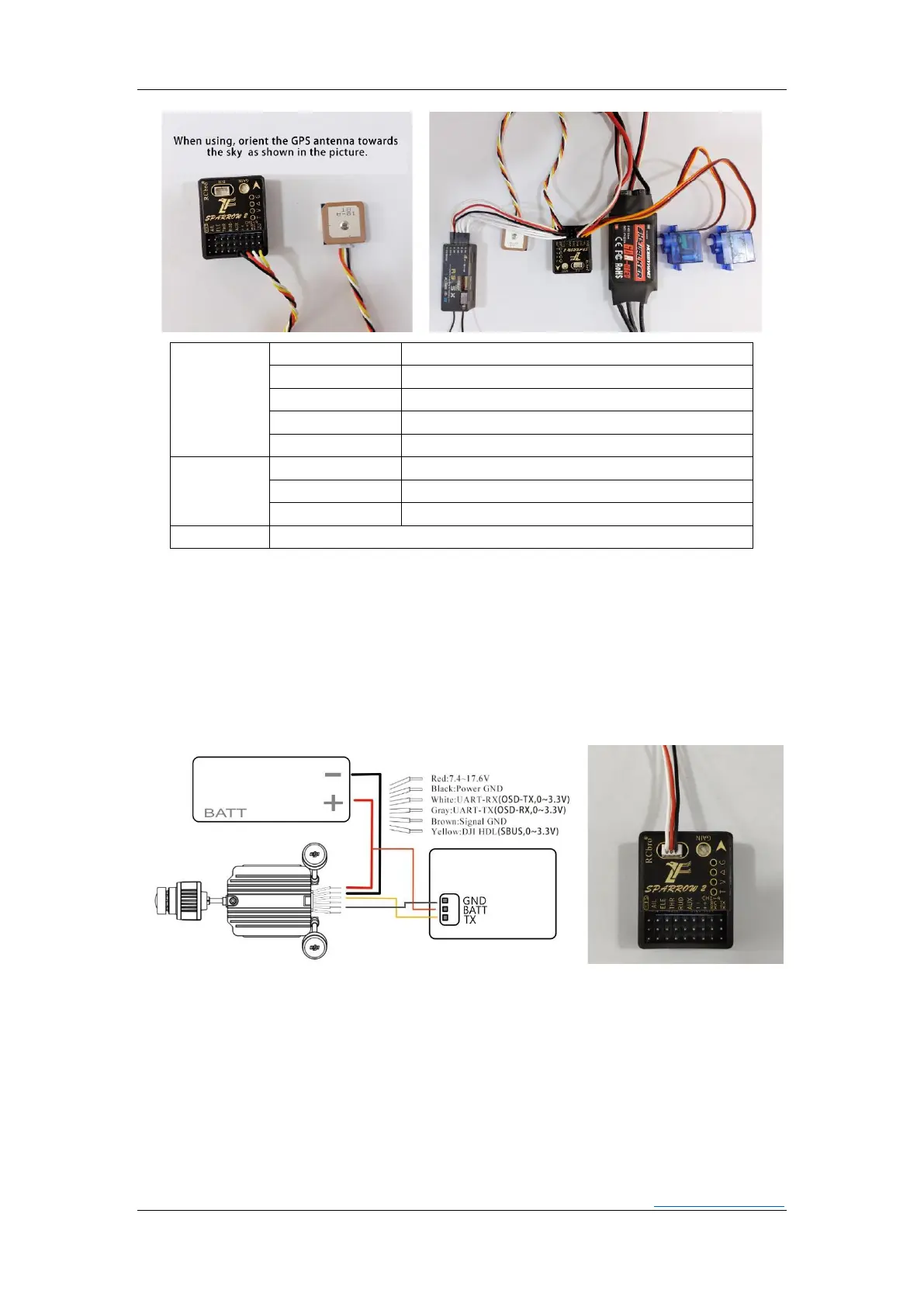

Refer to the schematic diagram to connect
*It is recommended to select the 3-switch as a mode channel.
*It supports 5-channel PWM input, so when using PWM receiver, the AUX cannot be used.
*For PPM, SBUS, IBUS, CRSF, the order of channel 1-4 is defined as AIL, ELE, THR, RUD.
*The 5th channel of the PPM/SBUS/IBUS is the mode channel, the 6th channel is the AUX.
*The 6th channel of the CRSF is the mode channel, the 7th channel is the AUX.
➢ DJI
*DJI interface also supports voltage detection.
*DJI interface voltage detection ranges from 2~6s, pay attention to the DJI supply voltage
(7.4-17.6V) when wiring, so as not to burn equipment!
➢ DJI-OSD
The display includes:Latitude/Latitude, Satellite, Altitude, GroundSpeed, ClimbRate,
Distance, Voltage,Attitude information, FlightMode, Heading.
