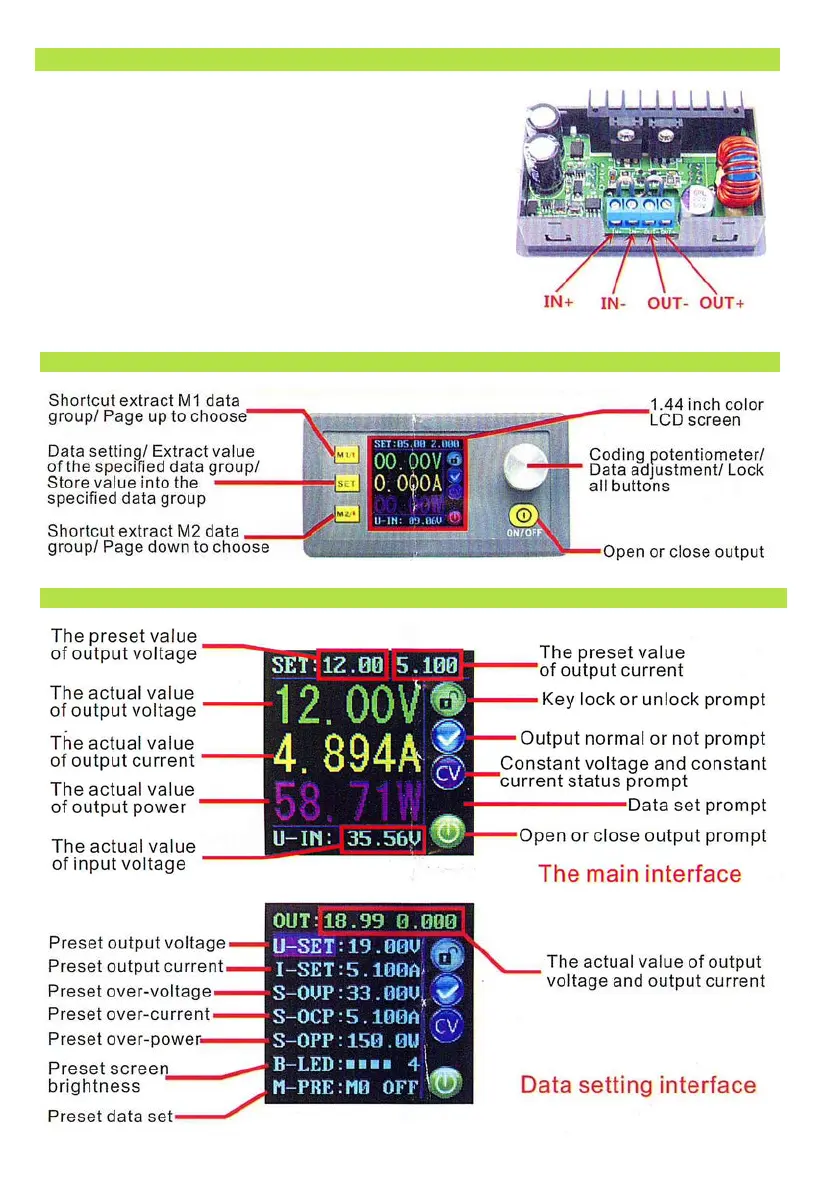

Connection description

IN+: Input positive OUT+: Output positive

IN-: Input negative OUT-: Output negative

Note: Input voltage range is 6-40V and 40V is the

limit voltage; please leave a room to use, or else

it will be burnt. The input must be DC-DC, not AC

220V, or else it will be burnt too. Though this

module has reverse connection protection and

output short circuit protection, you must be in strict

accordance with connection description to

connect. If you connect the supply power with

output, the module will be burnt.

Panel description

Display interface description
